Across vast plains and rolling hills, massive wind turbines stand like modern giants, their graceful blades rotating in the wind to convert nature’s power into clean electricity. Behind this seemingly simple energy conversion process lies a critical yet often overlooked safety guardian—the wind turbine brake pad. This seemingly modest component carries the crucial responsibility of protecting multi-million-dollar renewable energy equipment and ensuring personnel safety during critical moments. As the wind power braking systems technology continues to evolve, these turbine safety components have become increasingly sophisticated, incorporating advanced materials and intelligent monitoring capabilities that make them indispensable for modern wind turbine brake pads applications.

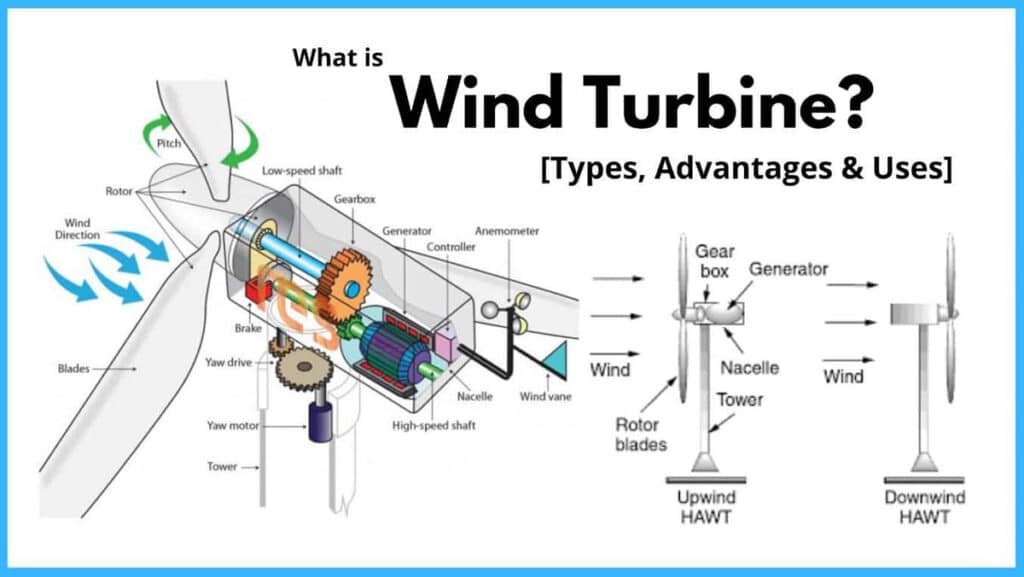

The Core Mission of Wind Turbine Braking Systems
Braking Systems: The Lifeline of Wind Turbines
Picture a 2MW wind turbine operating at rated speed—its blade tips reach linear velocities of 80-100 meters per second, equivalent to a high-speed train traveling at 300 kilometers per hour. If such tremendous rotational energy goes unchecked, the consequences would be catastrophic. Against this backdrop, wind power braking systems serve as indispensable safety barriers for wind turbine operations.
The mission of braking systems extends far beyond simple “shutdown.” During actual wind farm operations, wind turbine brake pads must handle various complex scenarios: when sudden gusts cause turbine overspeed, the system must intervene rapidly to control speeds within safe limits; when grid faults cause generator load loss, braking systems prevent turbine runaway; during scheduled maintenance, braking systems ensure complete shutdown and maintain locked conditions to provide safe working environments for maintenance personnel.
More critically, under extreme weather conditions like typhoons or blizzards, wind power braking systems often serve as the final line of defense protecting turbines from catastrophic damage. Statistics show that approximately 60% of major wind turbine accidents relate to braking system failures, underscoring their paramount importance.
Dual-Layer Braking Strategy
Modern large wind turbines employ a “dual-layer insurance” braking strategy, reflecting wind engineers’ relentless pursuit of safety excellence.
Aerodynamic Braking: The Elegant First Line of Defense
Aerodynamic braking serves as the first line of defense in wind turbine brake pads systems, achieved through precision pitch control systems. When the system detects the need for deceleration, the pitch system automatically adjusts blade angles from wind-facing to wind-following positions. This process resembles aircraft flaps during landing—changing aerodynamic characteristics to reduce wind energy capture.
During normal operations, aerodynamic braking handles 70-80% of braking duties. Its advantages include smooth braking processes, minimal mechanical component impact, and precise braking torque control through pitch angle adjustment. However, aerodynamic braking has limitations: limited effectiveness at low wind speeds, inability to function during pitch system failures, and inability to achieve complete locking.
Mechanical Braking: The Reliable Final Safeguard
Mechanical braking systems serve as the ultimate safety guarantee for wind turbines, directly stopping and locking rotating shafts through friction force. At the heart of this system lie wind turbine brake pads, which engage brake discs through hydraulic or pneumatic actuation, generating massive friction torque.
The greatest advantage of mechanical braking is high reliability—even during complete electrical system failure, it can still operate through backup power or manual operation. It provides 100% braking torque, ensuring complete turbine shutdown and maintained locked conditions. During emergencies, mechanical braking can completely stop high-speed turbines within 30-60 seconds.
Technical Barriers Under Extreme Challenges
The Severe Test of Temperature
The first technical challenge facing wind turbine brake pads is extreme temperature conditions. This challenge comes from two aspects: environmental temperature extremes and temperature rise during braking processes.
Environmental Temperature Challenges
Wind turbines are typically installed in exposed geographical locations such as ridges, coastlines, and plains—areas often characterized by extreme climatic conditions. In China’s Xinjiang and Inner Mongolia regions, rich in wind resources, winter minimum temperatures can reach -45°C, while summer temperatures under direct sunlight can exceed 60°C inside nacelles.
Under low-temperature conditions, wind turbine brake pads materials become brittle, friction coefficients decrease, and braking response times increase. More seriously, low temperatures may cause cold brittleness in brake pads, leading to fractures under sudden braking impacts. Therefore, high-quality turbine safety components must incorporate special low-temperature toughening agents in their material formulations to ensure adequate toughness and friction performance even at -40°C.
In high-temperature environments, brake pads face equally severe challenges. Prolonged high-temperature exposure causes organic binders to decompose, friction material structures to loosen, ultimately leading to braking performance degradation. For this reason, high-end wind turbine brake pads typically use high-temperature-resistant ceramic fibers and special resin systems, ensuring long-term operation at 80°C environmental temperatures without performance deterioration.
Braking Temperature Rise Challenges
Temperature rise during braking presents an even greater challenge for brake pads. Taking a 2MW wind turbine as an example, during emergency braking, approximately 500-800MJ of kinetic energy must be absorbed in a short time. This energy converts entirely to heat, causing brake contact surface temperatures to rise dramatically.
Under extreme conditions, instantaneous brake contact surface temperatures can reach 600-800°C, placing extremely high demands on wind turbine brake pads materials. Quality renewable energy equipment brake pads must possess excellent thermal stability—friction coefficients cannot significantly decrease at high temperatures, while maintaining sufficient heat capacity to absorb and dissipate heat.
To address this challenge, modern wind turbine brake pads commonly employ heat dissipation optimization designs. Through brake pad surface heat dissipation grooves, high thermal conductivity metal backing plates, and additional cooling fins, heat dissipation efficiency is effectively improved. Some high-end products also utilize phase-change material technology, using material phase transitions to absorb heat and control temperature rise.
Ultimate Tests of Load Strength
Wind turbine brake pads braking loads differ significantly from traditional braking applications. These differences manifest primarily in load magnitude, suddenness, and complexity.
Massive Braking Torques
Modern large wind turbines typically have rated braking torques ranging from tens of thousands to hundreds of thousands of newton-meters. For mainstream 3MW units, main shaft braking torques can reach 300,000 newton-meters—equivalent to the combined braking torque of 300 automobiles. Such massive torques require wind turbine brake pads with extremely high mechanical strength.
To withstand such enormous loads, turbine safety components typically employ steel backing plates for structural support. Backing plate thicknesses generally range from 15-25mm, using high-strength alloy steel materials processed through precision machining and heat treatment to ensure no deformation or fracture under massive loads. The bonding between friction materials and backing plates is also critical technology, typically using combinations of high-strength adhesives and mechanical anchoring to prevent debonding under high loads.
Impact Load Challenges
Wind turbine brake pads braking often exhibits suddenness, particularly during emergency braking when loads are applied almost instantaneously. Such impact loads pose severe challenges to brake pad structural integrity.
Conventional friction materials easily develop cracks and delamination under impact loads. To address this problem, modern wind turbine brake pads widely employ fiber reinforcement technology. By adding high-strength fibers such as steel fibers, ceramic fibers, and aramid fibers to friction materials, material impact resistance is significantly improved.
Some advanced products also employ gradient structure designs—using different performance materials at different depths, with surface layers focusing on friction performance, intermediate layers providing structural support, and bottom layers ensuring firm bonding with backing plates. This design ensures both excellent braking performance and structural reliability.
Long-term Threats from Environmental Corrosion
Wind turbines are typically installed in areas with harsh environmental conditions, requiring wind turbine brake pads to operate in these severe environments for 15-20 years, making environmental corrosion a significant factor affecting service life.
Salt Spray Corrosion in Marine Environments
With rapid offshore wind brake technology development, increasing numbers of wind turbines are installed in marine environments. Marine salt spray corrosion is extremely aggressive—chloride ions can penetrate material surface protective layers, causing internal metal component electrochemical corrosion.
In salt spray environments, conventional wind turbine brake pads materials easily corrode, manifesting as decreased friction coefficients, material loosening, and reduced mechanical strength. To address this challenge, offshore wind brake technology specific brake pads typically use stainless steel backing plates and corrosion-resistant friction materials. Friction materials reduce or completely avoid steel fibers and other easily corroded components, instead using ceramic fibers, carbon fibers, and other corrosion-resistant fibers.
Additionally, surface protection is critical technology. Through special anti-corrosion coatings and cathodic protection techniques, wind turbine brake pads service life in marine environments is effectively extended. Some high-end products employ nanotechnology in anti-corrosion coatings, forming dense protective films that effectively prevent chloride ion penetration.
Sand Erosion Effects in Desert Environments
In China’s northwest regions, sand represents an important environmental factor affecting renewable energy equipment. Sand not only affects equipment heat dissipation but also causes erosive damage to braking systems.
Quartz particles in sand possess extremely high hardness—wind-driven sand flows create continuous erosive effects on wind turbine brake pads surfaces. This erosion destroys brake pad surface friction layers, causing uneven friction performance and abnormal wear.
To address desert environment challenges, related turbine safety components typically employ surface hardening technology. By adding hard particles such as silicon carbide and aluminum oxide to friction materials, surface hardness increases and erosion resistance improves. Simultaneously, braking system sealing designs are strengthened through multi-layer sealing structures to effectively prevent sand intrusion into braking gaps.
Breakthroughs in Materials Science
Evolution of Friction Materials
Wind turbine brake pads friction materials have evolved from simple to complex, single to composite—a process reflecting both materials science advancement and increasing wind technology demands for braking performance.
First-Generation Organic-Based Materials
Early wind turbine brake pads primarily used organic-based materials, featuring thermosetting resins like phenolic and epoxy resins as binders, organic fibers as reinforcement, and various friction modifiers and fillers.
The greatest advantage of organic-based materials is excellent braking smoothness with low braking noise and minimal brake disc wear. During braking, organic binders thermally decompose at high temperatures, forming gas films that provide lubrication, making braking processes smoother. This characteristic proves particularly important in wind turbine variable frequency braking, effectively avoiding vibration and noise during braking.
However, organic-based materials also possess obvious defects. First is limited temperature resistance—when temperatures exceed 300°C, organic binders begin massive decomposition, causing friction coefficients to drop dramatically in so-called “thermal fade” phenomena. Second, under high-load conditions, organic materials easily undergo plastic deformation, affecting braking effect consistency.
Second-Generation Semi-Metallic Materials
To overcome organic-based material defects, semi-metallic wind turbine brake pads emerged. These materials typically contain 30-60% metallic fibers, mainly including steel, copper, and iron fibers, with the remainder being organic or inorganic fillers.
Metallic fiber addition significantly improved turbine safety components performance. First, high metal thermal conductivity effectively enhanced material heat dissipation capability, enabling brake pads to work stably at higher temperatures. Second, metallic fibers provided good structural support, improving material mechanical strength and wear resistance. Additionally, metal presence improved friction characteristics, maintaining high friction coefficients even at elevated temperatures.
Semi-metallic materials achieved good results in wind applications, particularly under high-torque, high-frequency braking conditions, demonstrating excellent performance stability. However, metallic fiber presence also brought problems such as increased braking noise, increased brake disc wear, and corrosion issues in marine environments.
Third-Generation Ceramic-Based Materials
With wind technology development and environmental requirement improvements, ceramic-based wind turbine brake pads became new development directions. These materials primarily use ceramic fibers as reinforcement with special inorganic binders and functional fillers.
Ceramic materials possess excellent high-temperature performance, maintaining structural stability above 800°C. Simultaneously, ceramics demonstrate good chemical stability, being less affected by environmental factors—particularly suitable for long-term use in harsh environments. Regarding friction performance, ceramic-based materials exhibit good friction coefficient stability, providing stable braking effects across wide temperature ranges.
Modern ceramic-based wind turbine brake pads typically employ multi-component composite formulations, such as aluminum oxide fibers providing structural support, silicon carbide particles providing friction media, graphite providing lubrication, and sulfides providing high-temperature stability. Through careful formulation design and advanced manufacturing processes, ceramic-based brake pads have surpassed traditional materials in comprehensive performance.
Revolutionary Applications of Nanotechnology
Nanotechnology applications in wind turbine brake pads fields represent the latest materials science development direction. This technology achieves performance breakthroughs difficult to attain with traditional techniques by controlling material structures at nanoscale levels.
Nano-Enhancement Mechanisms
Nanoparticles, due to their enormous specific surface areas and surface effects, can play unique reinforcement roles in composite materials. In wind turbine brake pads, commonly used nano-reinforcement materials include nano-aluminum oxide, nano-silica, and carbon nanotubes.
Nano-aluminum oxide possesses extremely high hardness and excellent wear resistance. When dispersed at nanoscale in friction materials, material wear resistance significantly improves. Research shows that adding 2-5% nano-aluminum oxide can reduce wind turbine brake pads wear rates by 30-50%, while friction coefficient stability also improves markedly.
Carbon nanotubes, due to their unique tubular structures and excellent mechanical properties, serve as ideal nano-reinforcement materials. In friction materials, carbon nanotubes form three-dimensional network structures, effectively transferring loads and improving material mechanical strength. Simultaneously, carbon nanotube high thermal conductivity helps improve wind turbine brake pads heat dissipation performance.
Nano-Lubrication Technology
Traditional solid lubricants like graphite and molybdenum disulfide easily oxidize and fail at high temperatures, while nano-lubrication materials, due to their unique structural characteristics, can function under more severe conditions.
Nano-tungsten disulfide is a new solid lubricant with layered structures similar to graphite but thermal stability far exceeding graphite. Adding nano-tungsten disulfide to wind turbine brake pads forms lubrication films during high-temperature braking, reducing friction wear and extending brake pad service life.
Nano-diamond serves as another emerging lubrication material with unique lubrication mechanisms. During friction processes, nano-diamond surfaces form amorphous carbon films possessing extremely low friction coefficients and excellent wear resistance. Research demonstrates that wind turbine brake pads containing nano-diamond maintain stable friction coefficients even under high-speed friction conditions.
Frontier Exploration of Smart Materials
Smart material technology represents future development directions for wind turbine brake pads. These materials can automatically adjust performance parameters according to environmental condition changes, achieving more precise and efficient braking control.
Shape Memory Alloy Applications
Shape Memory Alloys (SMAs) are metallic materials capable of remembering and recovering original shapes. In wind turbine brake pads, SMA wires can serve as temperature sensors and automatic adjustment elements.
When braking temperatures increase, SMA wires undergo phase transitions, generating recovery forces that automatically adjust gaps between wind turbine brake pads and brake discs, ensuring braking force stability. When temperatures decrease, SMA wires return to original states, and braking systems return to initial conditions. This self-adaptive adjustment mechanism requires no external control, effectively improving braking system reliability.
Phase Change Material Thermal Management
Phase Change Materials (PCMs) can absorb or release large amounts of latent heat during phase transitions, making them ideal thermal management materials. Integrating PCMs into wind turbine brake pads effectively controls temperature rise during braking.
Paraffin-based PCMs, due to moderate phase transition temperatures, large latent heat, and good chemical stability, become preferred thermal management materials. Through microencapsulation technology, paraffin is encapsulated and dispersed in friction materials. When braking temperatures reach paraffin melting points, paraffin begins melting and absorbing heat, effectively controlling temperature rise. After braking ends, paraffin re-solidifies and releases heat, accelerating cooling processes.
Piezoelectric Material Energy Recovery
Piezoelectric materials can directly convert mechanical energy to electrical energy, providing new approaches for braking system energy recovery. Embedding piezoelectric ceramic pieces in wind turbine brake pads converts mechanical energy from braking processes to electrical energy for powering sensors and auxiliary equipment.
This energy recovery technology not only improves system energy utilization efficiency but also provides power guarantees for braking system intelligence. Through collected electrical energy, temperature sensors, wear sensors, pressure sensors, and others can be driven, achieving real-time braking system condition monitoring.
Precision Manufacturing Technology Revolution

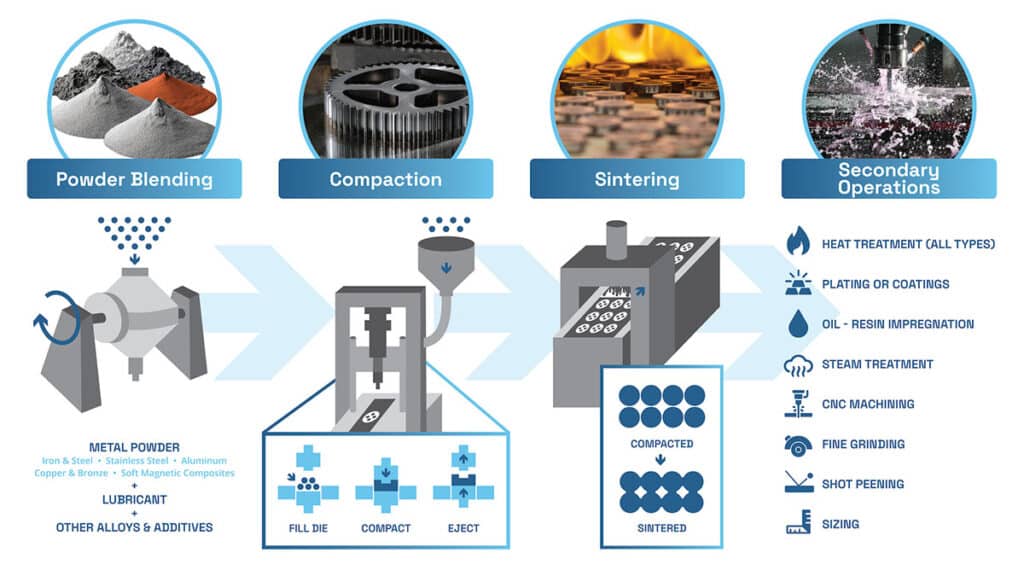

Precision Control of Powder Metallurgy Processes
Powder metallurgy process applications in wind turbine brake pads manufacturing represent important development directions for precision manufacturing technology. This process achieves performance control precision difficult to attain with traditional processes through precise control of raw material powder ratios, particle sizes, morphologies, and other parameters.
Raw Material Powder Preparation Technology
High-quality raw material powders are key to successful powder metallurgy processes. In wind turbine brake pads manufacturing, commonly used metallic powders include iron powder, copper powder, steel fiber powder, while non-metallic powders include various ceramic powders and carbon powders.
Modern raw material powder preparation employs multiple advanced technologies. Gas atomization technology produces metallic powders with high sphericity and narrow particle size distributions—such powders possess good flowability and formability. Water atomization technology produces irregularly shaped powders that form better mechanical bonding during sintering. For ceramic powders, sol-gel methods produce high-purity, well-dispersed nanopowders.
Powder surface treatment is also critical technology. Through electroless plating and physical vapor deposition techniques, special functional coatings can form on powder surfaces. For example, copper plating on iron powder surfaces improves thermal conductivity, while carbon coating on ceramic powder surfaces improves lubrication performance.
Pressing and Forming Technology
Pressing and forming are core processes in powder metallurgy, directly affecting final product density distribution and mechanical properties. Traditional uniaxial pressing processes present density non-uniformity problems when manufacturing large-size, complex-shaped wind turbine brake pads.
Isostatic pressing technology effectively addresses this problem. During isostatic pressing, powders receive equal pressure in all directions, achieving uniform density distributions. For large-size products like wind turbine brake pads, cold isostatic pressing technology ensures uniform density throughout brake pads, avoiding performance inconsistencies due to density differences.
Hot isostatic pressing technology combines pressing and sintering processes, simultaneously completing forming and densification under high temperature and pressure. This process achieves near-theoretical density products with excellent mechanical properties. For offshore wind brake technology brake pads requiring extremely high performance, hot isostatic pressing technology is the preferred manufacturing process.
Sintering Technology Optimization
Sintering is a critical step in powder metallurgy processes, directly determining final product microstructure and performance. Traditional solid-phase sintering processes present non-uniform microstructure and poor interfacial bonding problems when processing multi-component composite materials.
Liquid-phase sintering technology promotes diffusion and bonding between components by forming liquid phases during sintering. In wind turbine brake pads manufacturing, adding appropriate amounts of low-melting-point alloy powders forms liquid phases during sintering, significantly improving interfacial bonding between different materials and enhancing overall performance.
Spark Plasma Sintering (SPS) technology is an advanced sintering technique developed in recent years. SPS technology utilizes synergistic effects of pulsed direct current and mechanical pressure, achieving rapid densification at relatively low temperatures. This technology is particularly suitable for manufacturing composite brake pads containing temperature-sensitive components, ensuring density while avoiding sensitive component decomposition.
Innovative Applications of 3D Printing Technology
3D printing technology brings revolutionary changes to wind turbine brake pads manufacturing. This technology can manufacture complex structures impossible with traditional processes, providing new possibilities for performance optimization.
Laser Selective Sintering Process
Laser Selective Sintering (SLS) is the most suitable 3D printing technology for manufacturing metal-based brake pads. This process uses high-power laser beams to selectively sinter metal powder layers, building three-dimensional parts layer by layer.
In wind turbine brake pads manufacturing, SLS technology can achieve complex internal structure designs. For example, honeycomb or lattice heat dissipation channels can be designed inside brake pads, significantly improving heat dissipation efficiency. Variable cross-section cooling fins, spiral cooling channels, and other structures impossible with traditional manufacturing can be precisely manufactured through SLS technology.
SLS technology also enables gradient material structure manufacturing. By using different composition powders in different regions, multiple performance optimizations can be achieved in single wind turbine brake pads. For example, surface regions use high friction coefficient materials, middle regions use high thermal conductivity materials, and bottom regions use high-strength materials.
Electron Beam Melting Technology
Electron Beam Melting (EBM) technology uses high-energy electron beams as heat sources, completely melting metal powders to achieve products with near-forged performance. This technology is particularly suitable for manufacturing high-performance brake pad backing plates.
EBM technology advantages include processing high-melting-point, high-activity metallic materials such as titanium alloys and nickel-based superalloys. These materials possess excellent high-temperature performance and corrosion resistance, making them ideal for offshore wind brake technology brake pads. EBM-manufactured titanium alloy backing plates weigh over 40% less than traditional steel backing plates while significantly improving strength and corrosion resistance.
Binder Jetting Technology
Binder jetting technology is suitable for manufacturing large-size, complex-shaped wind turbine brake pads. This process selectively sprays binders to bind powder layers, forming green bodies, then obtains final products through sintering.
Binder jetting technology’s greatest advantage is fast manufacturing speed, suitable for batch production. Simultaneously, this technology demonstrates strong material adaptability, processing various metal and ceramic powders. In wind turbine brake pads manufacturing, binder jetting technology is particularly suitable for manufacturing large-size main shaft braking brake pads.
Deep Applications of Surface Engineering Technology
Surface engineering technology significantly enhances wind turbine brake pads friction performance, wear resistance, and corrosion resistance by improving surface microstructures and chemical compositions.
Laser Surface Modification Technology
Laser surface modification technology utilizes high-power laser beam energy to melt, recrystallize, and alloy brake pad surfaces, significantly improving surface performance without changing base material overall performance.
Laser melting and solidification technology refines surface grain structures through rapid heating and cooling, improving surface hardness and wear resistance. In wind turbine brake pads applications, laser melting treatment can increase surface hardness by 30-50% while maintaining base material toughness. This technology is particularly suitable for treating semi-metallic brake pad steel fiber surfaces—by refining steel fiber surface microstructures, bonding strength with base materials significantly improves.
Laser alloying technology adds alloying elements to surfaces during laser processing, forming surface alloy layers with special properties. For example, laser incorporation of carbide particles into surfaces forms high-hardness carbide-strengthened layers; laser addition of chromium, nickel, and other elements forms corrosion-resistant surface alloy layers.
Plasma Spraying Technology
Plasma spraying technology is an important method for preparing high-performance surface coatings. In wind turbine brake pads applications, plasma spraying technology primarily prepares functional coatings on backing plate surfaces.
Ceramic coating spraying is the most common application. Chromium oxide coatings possess excellent wear resistance and corrosion resistance, effectively protecting steel backing plates from environmental corrosion. Aluminum oxide coatings demonstrate extremely high hardness, providing excellent wear protection. Yttria-stabilized zirconia coatings possess low thermal conductivity, providing thermal insulation to protect backing plates from high-temperature damage.
Metal-ceramic coatings combine metal toughness with ceramic hardness, serving as ideal wear-resistant coatings. WC-Co (tungsten carbide-cobalt) coatings perform excellently under severe wear conditions, widely applied in heavy-duty braking systems. Cr3C2-NiCr (chromium carbide-nickel chromium) coatings possess good high-temperature stability and anti-oxidation properties, suitable for high-temperature braking environments.
Physical Vapor Deposition Technology
Physical Vapor Deposition (PVD) technology can prepare dense, strongly adherent thin coatings on wind turbine brake pads surfaces. These coatings, though only several micrometers thick, can significantly improve surface performance.
TiN (titanium nitride) coatings possess golden appearance, hardness up to 2300HV, and low friction coefficients—excellent anti-friction coatings. Applying TiN coatings to wind turbine brake pads guide pins, adjustment bolts, and other moving components significantly reduces wear and extends service life.
DLC (Diamond-Like Carbon) coatings possess near-diamond hardness and low friction coefficients, representing one of the most advanced surface coating technologies. DLC coatings can achieve friction coefficients as low as 0.1 under dry friction conditions while demonstrating excellent wear resistance. Applying DLC coatings to high-end wind turbine brake pads critical friction pair surfaces achieves ultra-low wear and ultra-long service life.
Classification Systems and Application Scenarios
Detailed Classification by Braking Position
Wind power braking systems have significantly different performance requirements for brake pads based on their positions in drive trains. Understanding these differences is crucial for correct brake pad selection and use.
Main Shaft Braking System Technical Characteristics
Main shaft braking systems act directly on wind turbine main shafts, representing the most critical braking systems. Main shaft diameters typically range from 300-600mm with relatively low rotational speeds (generally 10-20rpm) but enormous torques.
The primary challenge facing main shaft braking wind turbine brake pads is massive braking torques. For 3MW turbines, main shaft braking torques can reach 500,000 newton-meters—equivalent to 500 automobiles braking simultaneously. To withstand such enormous loads, main shaft braking wind turbine brake pads typically employ large-size designs with brake disc diameters reaching 1000-1500mm and brake pad thicknesses of 30-40mm.
Regarding material selection, main shaft braking wind turbine brake pads primarily use semi-metallic or ceramic-based materials to ensure adequate strength and wear resistance. Backing plates typically use 25-35mm thick high-strength alloy steel, quenched and tempered to ensure no deformation under massive loads.
Another characteristic of main shaft braking is relatively low braking frequency, primarily used for final turbine shutdown and emergency braking. This operating characteristic determines that main shaft braking wind turbine brake pads emphasize reliability under ultimate loads rather than wear resistance under frequent braking.
High-Speed Shaft Braking System Design Requirements
High-speed shaft braking systems act on gearbox output high-speed shafts, typically rotating at 1500-1800rpm, synchronized with generators. Compared to main shaft braking, high-speed shaft braking has smaller torques but higher braking frequencies.
High-speed shaft braking wind turbine brake pads design focuses on heat dissipation performance. Due to high speeds, sliding velocities during braking are large, generating significant heat per unit time. Poor heat dissipation easily causes thermal fade phenomena, affecting braking effectiveness. Therefore, high-speed shaft braking wind turbine brake pads typically employ multi-disc designs to increase heat dissipation areas.
Regarding material selection, high-speed shaft braking wind turbine brake pads emphasize friction coefficient stability and wear resistance. Due to high braking frequencies, material wear resistance directly affects service life. Simultaneously, due to high speeds, material dynamic balance requirements are strict to avoid vibrations during high-speed rotation.
Another characteristic of high-speed shaft braking brake pads is rapid response requirements. During emergencies like grid faults, braking force must be established in extremely short times to prevent generator runaway. This requires wind turbine brake pads with good initial friction performance, providing adequate braking force at braking initiation moments.
Unique Requirements of Yaw Braking Systems
Yaw braking systems control nacelle orientation, keeping turbines facing incoming wind directions. Yaw braking operating characteristics differ completely from main shaft and high-speed shaft braking—they must work under low-speed, long-duration conditions.
The primary challenge facing yaw braking wind turbine brake pads is friction stability at low speeds. During yaw processes, speeds typically range from 0.1-0.5rpm. At such low speeds, lubrication films are difficult to establish, easily causing stick-slip phenomena. Stick-slip phenomena not only affect yaw precision but also cause abnormal brake pad wear.
To address low-speed friction problems, yaw braking wind turbine brake pads typically use special friction material formulations. By adding solid lubricants like molybdenum disulfide and graphite, lubrication films form at low speeds, avoiding stick-slip phenomena. Simultaneously, by optimizing friction particle sizes and distributions, stable friction coefficients are maintained even at low speeds.
Another characteristic of yaw braking is requiring long-term braking state maintenance. Most of the time, yaw braking remains locked, preventing nacelle rotation due to wind loads. This long-term braking state places creep performance requirements on wind turbine brake pads—materials must maintain dimensional stability under long-term loading.
Performance Differences by Power Rating
Different power rating wind turbines have significantly different wind turbine brake pads performance requirements, manifesting not only in size and loads but also in technical approaches and material selections.
Small Turbine (Under 100kW) Brake Pad Characteristics
Although small turbines have limited power, their wind turbine brake pads possess unique technical requirements. First is cost sensitivity. Small turbine markets are highly competitive with cost control as key factors, requiring brake pads to minimize costs while ensuring performance.
Small turbine wind turbine brake pads typically use organic-based materials—low cost, simple manufacturing processes, meeting basic braking requirements of small turbines. In structural design, small turbine brake pads often employ simplified designs, reducing unnecessary complex structures and lowering manufacturing costs.
However, small turbine wind turbine brake pads also face unique challenges. Due to diverse installation locations, small turbines are often installed in areas with more severe environmental conditions such as mountains and islands, requiring higher environmental adaptability for brake pads. Simultaneously, small turbine maintenance frequencies are relatively low, requiring brake pads with longer maintenance-free periods.
Medium Turbine (100kW-2MW) Brake Pad Technology
Medium turbines represent current wind market mainstays with relatively mature wind turbine brake pads technology and high industrialization levels. Medium turbine brake pad technical characteristics balance performance and cost.
Regarding material selection, medium turbine wind turbine brake pads primarily use semi-metallic materials—these possess good comprehensive performance and moderate costs. Through optimized formulation designs, semi-metallic brake pads provide stable, reliable braking performance under most operating conditions.
Medium turbine wind turbine brake pads manufacturing processes are quite mature, with molding, hot-press curing, precision machining, and other process steps having standardized technical specifications. This standardization ensures not only product quality consistency but also reduces manufacturing costs.
In structural design, medium turbine wind turbine brake pads emphasize modular design. Through standardized interfaces and installation methods, brake pads from different manufacturers can be interchangeably used, improving user selection flexibility.
Large Turbine (Above 2MW) Brake Pad Innovation
Large turbines represent wind technology development directions with the most advanced wind turbine brake pads technology. Large turbine brake pad technical characteristics are high performance and high reliability.
Regarding material technology, large turbine wind turbine brake pads widely adopt ceramic-based composite materials. Though these materials have higher costs, they provide excellent high-temperature performance and wear resistance, meeting severe usage requirements of large turbines. Some latest large turbines even use carbon-carbon composite materials—possessing extremely low density and extremely high strength, representing advanced aerospace materials.
Regarding manufacturing processes, large turbine wind turbine brake pads employ the most advanced manufacturing technologies. Isostatic pressing, hot plasma sintering, precision machining, and other processes ensure high product quality. Some high-end products also employ 3D printing technology, achieving complex internal structure manufacturing.
In design philosophy, large turbine wind turbine brake pads emphasize intelligent design. Integrating temperature sensors, wear sensors, stress sensors, and other intelligent elements achieves real-time braking process monitoring and predictive maintenance solutions.
Specialized Designs by Environmental Adaptability
Wind turbines under different environmental conditions have special wind turbine brake pads performance requirements, promoting specialized brake pad technology development.

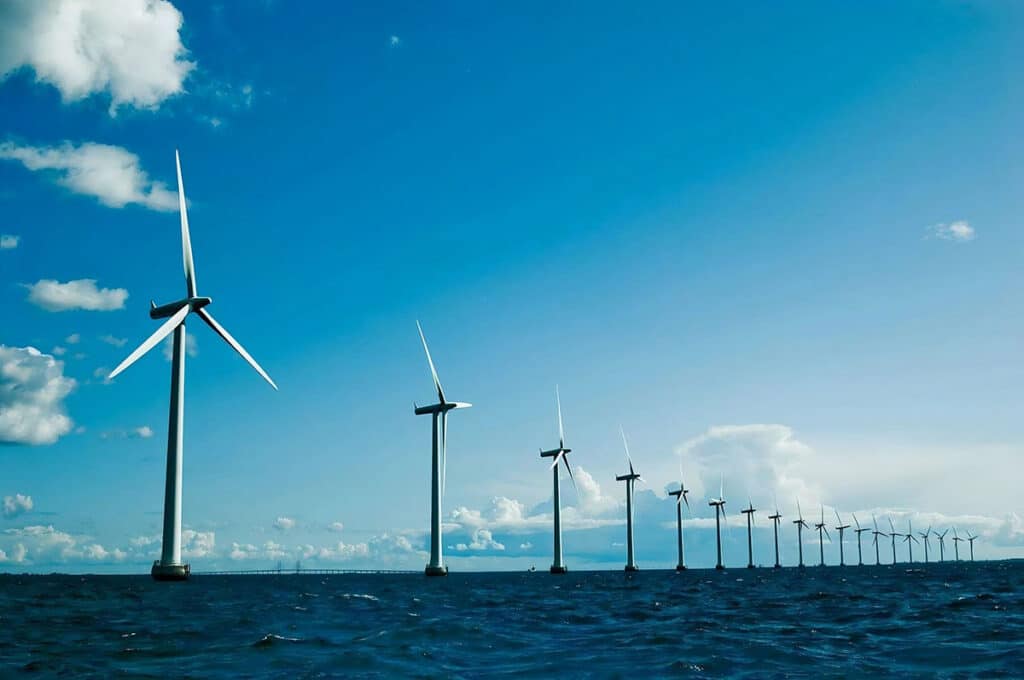

Offshore Wind Power Specialized Brake Pads
The greatest challenge facing offshore wind brake technology brake pads is strong marine environment corrosion. Marine atmospheric salt spray concentrations are extremely high—chloride ion strong penetration causes rapid metal component corrosion. Traditional carbon steel backing plates in marine environments often have service lives less than half of onshore environments.
To address marine corrosion, offshore wind brake technology specialized brake pads employ all-stainless steel structural designs. Backing plates use 316L stainless steel with excellent chloride ion corrosion resistance. Friction materials completely avoid iron-based components, instead using ceramic fibers, stainless steel fibers, and other corrosion-resistant materials.
Surface protection is also critical technology for offshore wind brake technology brake pads. Through plasma spraying, physical vapor deposition, and other technologies, dense ceramic protective layers form on brake pad surfaces, effectively preventing corrosive medium penetration. Some high-end products also employ sacrificial anode protection technology, protecting brake pad main bodies by sacrificing more active metals.
Another characteristic of offshore wind brake technology brake pads is ultra-long design life. Due to offshore maintenance difficulties and high costs, offshore wind turbine brake pads design lives typically require 10-15 years, far exceeding onshore wind power’s 5-8 years. This requires materials with extremely high durability and stability.
High-Altitude Wind Power Specialized Brake Pads
High-altitude environments possess characteristics of low pressure, low temperature, and strong ultraviolet radiation, placing special requirements on wind turbine brake pads materials. Low-pressure environments affect heat dissipation effectiveness—under identical braking power, high-altitude environments experience higher temperature rises. Simultaneously, low-temperature environments affect material toughness, increasing brittle fracture risks.
High-altitude wind power specialized wind turbine brake pads undergo special optimization in heat dissipation design. Through increased heat dissipation fin quantities and sizes, heat dissipation areas expand. High thermal conductivity base materials like copper-based composites improve heat conduction efficiency. Some products also integrate forced air cooling systems, accelerating heat dissipation through fans.
Regarding material toughening, high-altitude wind power wind turbine brake pads employ special toughening technologies. By adding nano-toughening phases like nano-zirconia and carbon nanotubes, material fracture toughness significantly improves. Simultaneously, optimized fiber reinforcement structures using three-dimensional braiding processes prepare reinforcement frameworks, improving material impact resistance.
Desert Wind Power Specialized Brake Pads
Desert environment primary characteristics are high temperature, large temperature differences, and abundant sand. Daytime surface temperatures can reach 70-80°C while nighttime temperatures can drop below 0°C—enormous temperature differences place severe challenges on material thermal fatigue performance. Ubiquitous sand also significantly challenges braking system sealing performance.
Desert wind power specialized wind turbine brake pads employ thermal fatigue-resistant material designs. Through selecting thermal expansion coefficient-matched material combinations, thermal stress generation reduces. Employing gradient structure designs avoids stress concentrations at different material interfaces. Flexible connections at critical locations absorb thermal deformations.
Sand-proof design is another focus of desert wind power wind turbine brake pads. Braking systems employ multi-stage sealing structures, effectively preventing sand intrusion into braking gaps. Brake pad surfaces employ wear-resistant hardening treatments, improving sand erosion resistance. Some products also employ self-cleaning surface technology, utilizing special microstructures to reduce sand adhesion.
Intelligence Development at the Technology Frontier

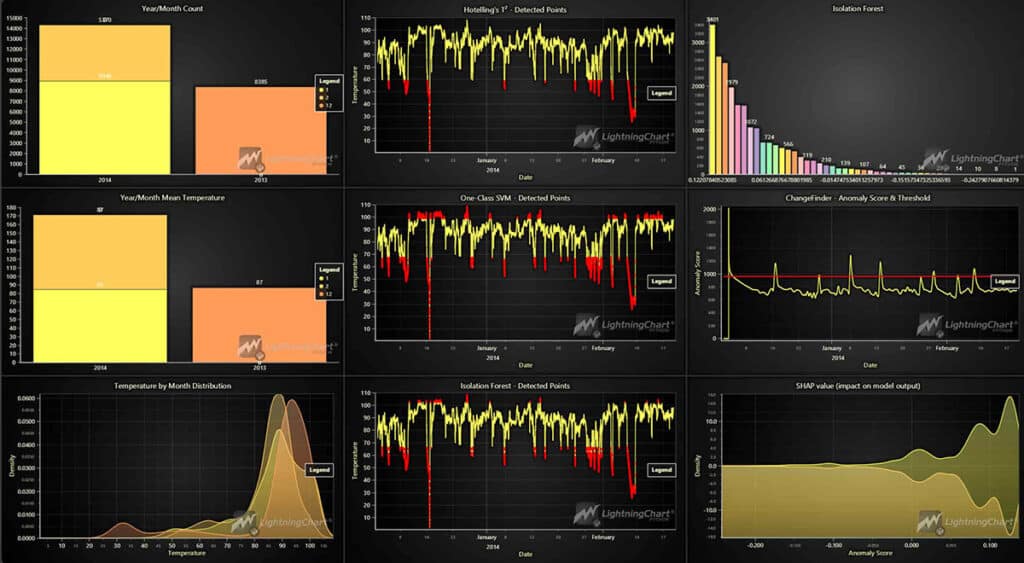

Deep Integration of Condition Monitoring Technology
Modern wind turbine brake pads are rapidly advancing toward intelligence, with condition monitoring technology integration serving as an important marker of this development. By embedding various sensors in brake pads, real-time working condition monitoring becomes possible, providing data support for predictive maintenance solutions and fault warnings.
Precision Temperature Monitoring Technology
Temperature represents one of the most critical parameters affecting wind turbine brake pads performance. Traditional temperature monitoring often places only one temperature sensor on brake discs, unable to accurately reflect brake pad temperature distribution. Modern intelligent brake pads achieve precise temperature field measurement through integrated multi-point temperature monitoring systems.
Fiber optic temperature sensing technology represents the latest development direction. Embedding fiber optic sensors inside wind turbine brake pads enables distributed temperature measurement, obtaining complete temperature distribution curves. Fiber optic sensors possess advantages of electromagnetic interference resistance, high-temperature tolerance, and long-term stability—particularly suitable for harsh renewable energy equipment environments.

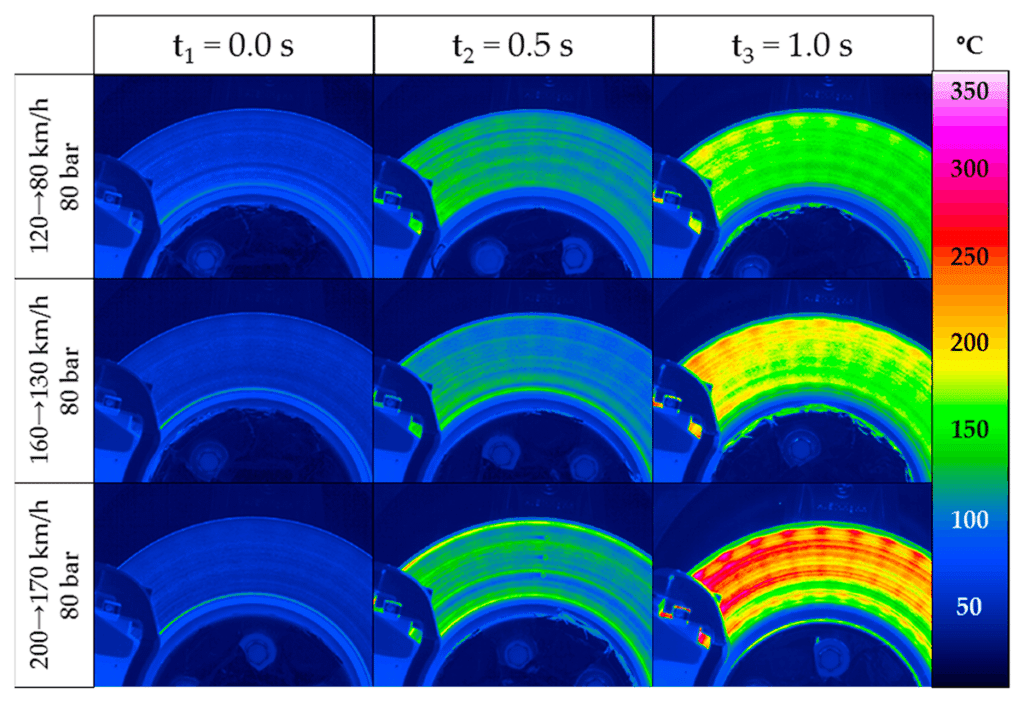

Infrared thermal imaging technology provides non-contact temperature monitoring solutions. Installing infrared cameras around wind power braking systems enables real-time brake pad surface temperature distribution monitoring, promptly discovering hot spots and abnormal areas. Modern infrared thermal imaging systems achieve temperature measurement accuracy of ±1°C, fully meeting engineering application requirements.
Wireless temperature sensing technology solves signal transmission problems. Integrating temperature sensors with wireless transmission modules enables wireless data transmission. This technology particularly suits rotating component temperature monitoring, avoiding complex signal transmission mechanisms like slip rings.
Real-time Wear Condition Assessment
Wear represents the primary wind turbine brake pads failure mode—accurately assessing wear conditions proves crucial for predictive maintenance solutions. Traditional wear detection primarily relies on periodic manual inspections—inefficient with safety hazards.
Acoustic emission technology provides new wear monitoring approaches. During friction wear processes, material microscopic fractures produce acoustic emission signals. Analyzing acoustic emission signal frequency, amplitude, and other characteristic parameters enables wear severity assessment. Research demonstrates good correspondence between acoustic emission signal energy and wear amounts.
Vibration monitoring technology can indirectly reflect wear conditions. As wind turbine brake pads wear progresses, braking system dynamic characteristics change, manifesting as vibration signal spectral characteristic changes. Establishing wear condition-vibration characteristic correspondence enables online wear degree assessment.
Inductive displacement sensors can directly measure brake pad thickness changes. Installing sensors on brake calipers enables real-time measurement of wind turbine brake pads-brake disc gap changes, calculating wear amounts. This method achieves high measurement accuracy of 0.1mm, meeting engineering application requirements.
Intelligent Pressure Distribution Sensing
Braking pressure distribution directly affects braking effectiveness and wear uniformity. Traditional pressure measurement often measures only total braking pressure, unable to reflect pressure distribution uniformity. Modern intelligent wind turbine brake pads achieve precise pressure field measurement through integrated pressure distribution sensing systems.
Flexible pressure sensor technology provides ideal pressure distribution measurement solutions. These sensors can be manufactured as thin films, directly attached to wind turbine brake pads surfaces for real-time pressure measurement at various points. Flexible pressure sensors possess high sensitivity, rapid response, and impact resistance—fully suitable for harsh wind power braking systems conditions.
Piezoresistive force sensors measure pressure sizes by detecting material resistance changes. Manufacturing piezoresistive materials into grid structures embedded in wind turbine brake pads enables pressure distribution surface measurement. This technology advantages include simple structure, low cost, and high reliability.
Optical pressure sensing technology utilizes optical interference principles to measure pressure changes. When pressure acts on optical fibers, fiber length and refractive index change, affecting light phase. Measuring phase changes enables accurate pressure calculation. Optical sensors possess electromagnetic interference resistance and high measurement accuracy.
Technical Implementation of Adaptive Control Systems
Adaptive control represents important development directions for intelligent wind turbine brake pads, automatically adjusting braking strategies according to operating condition changes to achieve optimal braking effects.
Operating Condition Recognition and Classification Algorithms
Accurate operating condition recognition serves as adaptive control prerequisites. Wind power braking systems operating conditions are complex and variable, including normal shutdown, emergency braking, maintenance locking, and other modes—each placing different braking system requirements.
Machine learning algorithms provide powerful operating condition recognition tools. Collecting extensive operational data including wind speed, rotational speed, power, and vibration parameters enables operating condition recognition model establishment. Support Vector Machine (SVM) algorithms perform excellently in handling nonlinear classification problems, accurately distinguishing different operating condition types.
Neural network algorithms possess powerful pattern recognition capabilities. Training deep neural networks enables automatic operating condition feature extraction, achieving high-precision operating condition classification. Convolutional Neural Networks (CNNs) particularly suit time-series signal processing, capturing dynamic characteristics of operating condition changes.
Fuzzy logic algorithms can handle operating condition boundary ambiguity problems. During actual operations, operating conditions often lack clear boundaries with transitional states existing. Fuzzy logic algorithms establish fuzzy rule bases to handle such uncertainties, providing more reasonable operating condition assessments.
Dynamic Optimization of Braking Strategies
Optimal braking strategies differ under various operating conditions. For example, during normal shutdowns, smooth braking curves should be adopted to reduce equipment impacts; during emergency braking, maximum braking force should be applied to ensure rapid shutdown.
Genetic algorithms provide effective braking strategy optimization methods. Encoding braking parameters as genes and utilizing genetic algorithm evolutionary mechanisms continuously optimizes braking strategies. Genetic algorithms possess strong global search capabilities and avoid local optima—particularly suitable for multi-parameter, multi-objective optimization problems.
Particle Swarm Optimization (PSO) algorithms possess advantages of fast convergence and simple parameter settings. In braking strategy optimization, each particle represents one braking strategy—through inter-particle information exchange and position updates, optimal solutions are gradually approached.
Reinforcement learning algorithms continuously improve braking strategies through environmental interaction. Q-learning algorithms establish state-action value functions, learning optimal actions under different states. These algorithms possess online learning capabilities, adapting to environmental changes.
Multi-objective Coordination Control Technology
Wind power braking systems often must simultaneously satisfy multiple objectives such as shortest braking time, minimal equipment impact, and lowest energy consumption. These objectives often conflict, requiring multi-objective optimization techniques for coordination.
Pareto optimization represents classic multi-objective problem handling methods. Constructing Pareto fronts identifies all non-dominated solution sets. Decision-makers can select most suitable solutions from Pareto fronts according to actual requirements. In braking control, multi-objective functions including braking time, impact force, and temperature rise can be established—finding optimal balance points through Pareto optimization.
Weighted objective function methods assign weights to different objectives, converting multi-objective problems to single-objective problems. Weight selections reflect objective importance levels. In braking control, weights can be adjusted according to different operating conditions, achieving dynamic objective balance.
Constrained optimization methods treat some objectives as constraint conditions while optimizing primary objectives. For example, minimizing braking time as primary objective with impact force and temperature rise as constraints. This method provides clear thinking and convenient engineering implementation.
Systematic Maintenance Management Solutions
Deep Applications of Predictive Maintenance Technology
Traditional planned maintenance often bases on time or operating hours—this approach presents insufficient maintenance or over-maintenance problems. Predictive maintenance solutions technology monitors equipment conditions, conducting maintenance before equipment failures—both ensuring equipment reliability and optimizing maintenance costs.
Data-Driven Life Prediction Models
Wind turbine brake pads remaining life prediction represents core predictive maintenance solutions technology. Establishing life prediction models enables accurate brake pad replacement timing prediction.
Weibull distribution models are widely used reliability engineering life distribution models. Collecting extensive wind turbine brake pads failure data and fitting Weibull distribution parameters enables brake pad reliability and average life prediction. Weibull model advantages include clear parameter physical meanings and ability to describe different failure mechanisms.
Proportional hazards models (Cox models) can consider multiple influencing factor effects on life. Braking frequency, environmental temperature, load magnitude, and other factors all affect wind turbine brake pads life—Cox models can quantify these factor influences, improving prediction accuracy.
Machine learning models possess powerful nonlinear fitting capabilities. Random forest algorithms integrate multiple decision trees, improving prediction stability; neural network algorithms automatically extract features, discovering complex nonlinear relationships; support vector regression algorithms perform excellently under small sample conditions.
Health Indicator System Construction
Health indicators are quantified equipment condition assessment indicators—good health indicators should exhibit monotonic relationships with equipment degradation degrees, possessing good trending and sensitivity.
Wear rate indicators reflect wind turbine brake pads wear speeds. Monitoring brake pad thickness changes and calculating wear amounts per unit time. Under normal conditions, wear rates should remain relatively stable; if wear rates suddenly increase, brake pads may be entering rapid wear phases.
Temperature rise indicators reflect wind turbine brake pads thermal performance. Under identical braking conditions, if temperature rises gradually increase, heat dissipation performance may be declining or friction coefficients changing. Temperature rise indicator advantages include strong real-time capabilities and timely abnormality detection.
Vibration characteristic indicators can reflect wind turbine brake pads structural integrity. Analyzing vibration signal spectral characteristics enables crack, debonding, and other structural defect identification. Wavelet analysis, EMD decomposition, and other signal processing technologies provide powerful vibration characteristic extraction tools.
Intelligent Fault Warning Diagnosis
Fault warnings represent important predictive maintenance solutions components, providing warnings before equipment failures and offering time windows for maintenance decisions.
Threshold warnings represent simplest warning methods. Setting health indicator warning and alarm thresholds triggers warnings when indicators exceed thresholds. However, fixed thresholds often cannot adapt to operating condition changes, easily producing false alarms or missed alarms. Adaptive threshold technology improves warning accuracy through real-time threshold adjustments.
Trend warnings base on health indicator change trends for warnings. Even if current indicator values are normal, abnormal change trends may indicate potential faults. Time series analysis, regression analysis, and other statistical methods provide technical support for trend warnings.
Pattern recognition warnings warn through fault characteristic pattern identification. Different fault types often possess specific characteristic patterns—wear faults manifest as gradually increasing wear rates, thermal faults manifest as abnormal temperature rises. Establishing fault characteristic libraries enables automatic fault type identification.
Refined Maintenance Strategy Management
Refined maintenance management represents important means for improving wind farm operational efficiency. Through scientific maintenance strategies, maintenance costs can be maximized while ensuring equipment reliability.
Risk-Based Maintenance Decision Making
Risk assessment serves as important maintenance decision bases. Equipment risk is jointly determined by failure probability and failure consequences. High-risk equipment should adopt aggressive maintenance strategies; low-risk equipment can appropriately extend maintenance cycles.
Failure Mode and Effects Analysis (FMEA) represents systematic risk assessment methods. Identifying possible wind turbine brake pads failure modes, analyzing failure causes and effects, and calculating Risk Priority Numbers (RPN) determines maintenance priorities. High RPN value failure modes should receive focused attention.
Bayesian networks provide effective dynamic risk assessment tools. Establishing causal relationship networks between failure causes, failure modes, and failure consequences enables dynamic risk updating. When obtaining new monitoring information, Bayesian formulas can update failure probabilities.
Monte Carlo simulation can handle uncertainty factor effects on risk. In wind power applications, environmental factors like wind speed and temperature possess randomness—traditional deterministic analysis cannot fully consider these uncertainties. Monte Carlo simulation obtains risk probability distributions through random sampling.
Maintenance Resource Optimization Allocation
Wind farms are typically located in remote geographical locations with limited maintenance resources—optimizing maintenance resource allocation represents key problems.
Maintenance personnel scheduling represents important resource allocation components. Considering renewable energy equipment geographical distribution, skill requirements, workload, and other factors requires reasonable personnel scheduling plan formulation. Integer programming methods can establish personnel scheduling mathematical models, achieving optimal scheduling.
Spare parts inventory management directly affects maintenance efficiency. Excessive inventory occupies substantial funds; insufficient inventory affects maintenance progress. Establishing inventory optimization models determines optimal inventory levels. (s,S) strategies, EOQ models, and other classical inventory theories find wide applications in wind power spare parts management.
Maintenance tool allocation must consider different maintenance task requirements. Specialized tools improve maintenance efficiency but require large investments; general tools require smaller investments but possess relatively lower efficiency. Cost-benefit analysis determines optimal tool allocation schemes.
Whole-Process Maintenance Quality Control
Maintenance quality directly affects equipment reliability and safety. Establishing comprehensive quality control systems represents key maintenance quality assurance.
Maintenance operation standardization serves as quality control foundations. Formulating detailed maintenance operation guidance reduces human factor influences on maintenance quality. Maintenance operation guidance should include safety requirements, operation procedures, quality standards, inspection methods, and other content.
Maintenance process monitoring monitors maintenance processes in real-time, promptly discovering and correcting deviations. Modern information technology provides powerful maintenance monitoring support. Through mobile terminals, RFID tags, and other technologies, maintenance process digitization recording and tracking are achieved.
Maintenance effect assessment represents important quality control components. Comparing turbine safety components performance parameters before and after maintenance assesses maintenance effects. If maintenance effects fail to meet standards, cause analysis and improvement measures are required. Statistical Process Control (SPC) methods can monitor maintenance quality stability.
Whole Life Cycle Cost Optimization
Whole Life Cycle Cost (LCC) analysis considers all costs from equipment procurement to scrapping throughout entire life cycles, providing economic bases for equipment selection and maintenance decisions.
Precise Cost Component Analysis
Wind turbine brake pads whole life cycle costs primarily include procurement costs, installation costs, operating costs, maintenance costs, failure costs, and disposal costs.
Procurement costs represent most intuitive costs, including equipment prices, transportation expenses, taxes, and other costs. Different technical route wind turbine brake pads procurement costs vary significantly—high-end ceramic-based brake pads may cost 3-5 times ordinary organic-based brake pads.
Maintenance costs include regular maintenance, preventive maintenance, corrective maintenance, and other expenses. Maintenance costs closely relate to product quality—high-quality product maintenance costs are typically lower. Establishing maintenance cost models quantifies different product maintenance cost differences.
Failure costs include failure downtime losses, emergency repair expenses, spare parts costs, and other costs. Renewable energy equipment failure downtime losses are enormous—2MW turbines can lose 1000-2000 yuan per hour in power generation. Therefore, improving reliability significantly reduces failure costs.
Environmental costs represent emerging cost items, including production process environmental impacts, usage process emissions, and scrapping disposal environmental expenses. With increasingly strict environmental requirements, environmental costs gradually increase in total cost proportions.
Quantified Cost-Benefit Assessment
Investment payback period represents important economic evaluation indicators. Calculating different scheme investment payback periods enables economically optimal scheme selection. Simple investment payback periods ignore capital time value; dynamic investment payback periods consider discount rate influences—more accurate.
Net Present Value (NPV) represents most commonly used economic evaluation indicators. Calculating project cash flow net present values determines project economic feasibility. Positive NPV indicates economically feasible projects; larger NPV indicates better economics.
Internal Rate of Return (IRR) represents discount rates making project net present values zero, reflecting project intrinsic profitability. Higher IRR indicates better project economics. When comparing different schemes, higher IRR schemes are typically selected.
Sensitivity analysis evaluates key parameter change effects on economics. In LCC analysis, procurement prices, maintenance expenses, failure rates, and other parameters are all sensitive parameters. Sensitivity analysis identifies key influencing factors, providing decision references.
Systematic Implementation of Optimization Strategies
Whole life cycle cost optimization requires systematic consideration from design, procurement, usage, maintenance, and other aspects.
Design optimization represents cost control sources. Technical schemes determined during design phases directly affect subsequent manufacturing costs, maintenance costs, and other costs. Through concurrent engineering, value engineering, and other methods, whole life cycle costs can be fully considered during design phases.
Procurement optimization must comprehensively consider price and quality. Lowest price bidding often causes quality problems, increasing subsequent costs. Life cycle cost lowest bidding represents more reasonable procurement methods, considering product whole life cycle costs.
Usage optimization reduces usage costs through improved operation methods. Reasonable braking strategies can reduce wind turbine brake pads wear, extending service life. Operator training represents important usage optimization measures—improving operation levels significantly reduces failure rates.
Maintenance optimization reduces maintenance costs through improved maintenance strategies. Predictive maintenance solutions technology enables predictive maintenance, avoiding unnecessary maintenance. Maintenance outsourcing represents another optimization method—professional maintenance companies typically possess higher maintenance efficiency.
Market Landscape and Development Opportunities
Global Market Competitive Dynamics
Wind turbine brake pads markets are growing with rapid global wind power industry development. This market presents obvious regional characteristics and technology differentiation trends.
Market Scale and Growth Drivers
According to International Renewable Energy Agency (IRENA) data, global wind power installed capacity grew from 194GW in 2010 to over 1000GW in 2024—annual compound growth rates exceeding 12%. This rapid growth provides strong momentum for wind turbine brake pads markets.
Market demand primarily comes from two aspects: new installation markets and maintenance replacement markets. New installation markets directly relate to wind power installed capacity, growing with wind power installation growth. Maintenance replacement markets relate to existing turbine maintenance requirements, possessing relatively stable characteristics. By 2030, global wind turbine brake pads market scale is expected to reach 5-8 billion USD.
Technology upgrades represent important market growth drivers. With continuously increasing turbine unit capacities, higher wind turbine brake pads technology requirements emerge. Large-capacity turbines require higher-performance brake pads, providing market opportunities for high-end products. Rapid offshore wind brake technology development also creates new market spaces for specialized products.
Environmental policies represent external market development driving forces. Government support policies for renewable energy equipment provide policy guarantees for wind power industries. Carbon neutrality goal proposals inject strong momentum into wind development. China’s 2030 carbon peak and 2060 carbon neutrality goals, EU’s 2050 carbon neutrality goals will long-term support wind market development.
Major Participant Technical Characteristics
Global wind turbine brake pads market major participants can be divided into several tiers. First tier includes internationally renowned braking system suppliers like Germany’s Antec, Twiflex, and Denmark’s Pintsch Bubenzer. These companies possess strong technical capabilities, reliable product quality, and dominate high-end markets.
Germany’s Antec Company represents wind power braking systems technology leadership with products widely applied in international mainstream turbine manufacturers. The company’s technical characteristics include strong system integration capabilities, providing complete braking solutions. Its ceramic-based wind turbine brake pads products perform outstandingly in high-temperature resistance and long service life.
Denmark’s Pintsch Bubenzer Company focuses on industrial braking systems with rich wind power experience. The company’s technical characteristics include high reliability with products performing excellently in harsh environments like offshore wind power. Hydraulic wind power braking systems represent core competitiveness.
Second tier includes traditional automotive braking system suppliers like Bosch and ZF. These companies possess strong technical accumulation and manufacturing capabilities, entering wind markets through technology transfer and product adaptability improvements.
Third tier includes emerging professional wind component suppliers, primarily distributed in China, India, and other emerging markets. Though these companies have lower technical starting points, they develop rapidly with advantages in cost control.
Regional Market Differentiated Development
Europe represents wind technology origins and most mature wind markets. European market characteristics include high technical requirements, strict quality standards, and stringent environmental performance requirements. European wind turbine brake pads markets are primarily monopolized by local enterprises with high technical barriers and intense competition.
China represents the world’s largest wind market with installed capacity exceeding 40% globally. Chinese market characteristics include large scale, rapid growth, and intense competition. Local enterprises possess cost control advantages but still have gaps in high-end technology. With Chinese wind industry technology upgrades, high-performance wind turbine brake pads demand grows rapidly.
North American markets are primarily US-dominated with characteristics of high technical requirements and strict safety and reliability requirements. US wind development is significantly affected by policies—tax incentive policy changes affect market demand.
Other Asia-Pacific regions like India, Japan, and South Korea also represent important wind markets. These markets possess unique characteristics—India emphasizes cost control, Japan emphasizes technological advancement, South Korea develops rapidly in offshore wind brake technology.
Technology Development Trend Predictions
Wind turbine brake pads technology development trends primarily manifest in material technology, manufacturing processes, and intelligence levels.
Next-Generation Material Technology Breakthroughs
Carbon nanomaterials represent the most promising development directions. Carbon nanotubes, graphene, and other carbon nanomaterials possess excellent mechanical and thermal conductivity performance, demonstrating enormous potential in wind turbine brake pads applications. Carbon nanotube strength is 100 times that of steel while possessing excellent thermal conductivity—serving as reinforcement materials significantly improves brake pad performance.
Graphene as single-layer carbon atomic materials possesses unique two-dimensional structures and excellent comprehensive performance. Adding graphene to friction materials simultaneously improves strength, thermal conductivity, and lubrication performance. Currently graphene preparation costs are high, but with technological progress, costs are expected to decrease substantially.
Bio-based materials represent important green development directions. Natural fibers like flax and jute possess good friction performance and environmental characteristics. Through chemical modification and composite technology, bio-based material performance can meet wind power application requirements. Bio-based wind turbine brake pads can biodegrade after scrapping, conforming to sustainable development concepts.
Metamaterial technology provides new possibilities for performance breakthroughs. Through artificially designed microstructures, metamaterials achieve performance combinations unattainable by natural materials. In wind turbine brake pads applications, metamaterial structures with negative thermal expansion coefficients can be designed, solving thermal expansion matching problems.
Intelligent Manufacturing Technology Upgrades
Additive manufacturing technology will completely change wind turbine brake pads manufacturing methods. 3D printing technology can manufacture complex internal structures impossible with traditional processes, such as internal cooling channels and variable density structures. Multi-material 3D printing technology can use multiple materials in single manufacturing processes, achieving functional gradient designs.
Artificial intelligence applications in manufacturing processes will substantially improve manufacturing quality and efficiency. Machine vision technology can detect quality problems during manufacturing in real-time; machine learning algorithms optimize manufacturing parameters; adaptive control systems adjust manufacturing processes according to raw material changes.
Digital manufacturing technology achieves comprehensive manufacturing process digitization management. Through digital twin technology, manufacturing processes can be optimized in virtual environments, reducing experimental costs. Blockchain technology ensures product quality traceability credibility.
Comprehensive Intelligence Level Improvements
Internet of Things technology will achieve comprehensive wind turbine brake pads connectivity. Each brake pad will be equipped with sensors and communication modules, uploading operational data in real-time. Through big data analysis, performance patterns can be discovered, optimizing design and maintenance strategies.
Edge computing technology brings intelligent processing capabilities to equipment levels. Integrating high-performance processors locally in wind turbine brake pads enables real-time operational data analysis and rapid abnormal situation responses. Edge computing reduces network dependencies, improving system reliability.
Digital twin technology provides powerful tools for wind turbine brake pads whole life cycle management. Constructing brake pad digital models enables real-time operational state simulation, maintenance requirement prediction, and operational parameter optimization. Digital twin models will span entire design, manufacturing, usage, and maintenance processes.
Industry Development Opportunity Prospects
Wind turbine brake pads industries face unprecedented development opportunities from technological progress, market expansion, policy support, and other aspects.
Market Opportunities Under “Dual Carbon” Goals
Countries worldwide successively propose carbon neutrality goals, providing strong momentum for wind power industry development. China proposes 2030 wind power installation targets exceeding 1.2 billion kilowatts, bringing enormous wind turbine brake pads market demand. EU proposes 2030 renewable energy proportion targets of 42.5%—wind power serves as main force achieving these goals.
Offshore wind brake technology represents future development focus directions. Offshore wind resources are abundant, not occupying land resources, with enormous development potential. However, marine environments place higher equipment performance requirements, providing market opportunities for high-end wind turbine brake pads products. By 2030, global offshore wind installation is expected to reach 230GW with annual compound growth rates exceeding 20%.
Distributed wind power represents another important development direction. With technological progress and cost reductions, small turbines play increasingly important roles in distributed energy systems. Distributed wind power places higher reliability and maintenance-free requirements on equipment, providing application scenarios for intelligent wind turbine brake pads.
Energy storage technology integration with wind power opens new industrial development spaces. Wind-storage integration projects provide more stable power output, improving wind power economics. Energy storage technology development will promote further wind installation growth.
Innovation Opportunities from Technology Integration
Deep integration of artificial intelligence with braking technology will produce revolutionary changes. AI algorithms can optimize braking strategies in real-time, improving braking efficiency and safety. Machine learning technology discovers patterns from massive operational data, guiding product improvements and maintenance decisions.
New material technology breakthroughs provide unlimited possibilities for performance improvements. Nanotechnology, metamaterial technology, biomimetic technology, and other frontier technologies applied in wind turbine brake pads fields will bring performance leaps. These technology industrialization will create new market spaces.
Manufacturing technology innovations provide approaches for cost reduction and quality improvement. 3D printing, intelligent manufacturing, flexible manufacturing, and other advanced manufacturing technologies will improve manufacturing efficiency, reduce manufacturing costs, and provide new competitive advantages.
Digital technology provides foundations for business model innovation. Through digital platforms, product whole life cycle management and value-added services become achievable. Service-oriented manufacturing will become new profit models.
Development Opportunities from Industry Ecosystem Reconstruction
Wind power industry chain vertical integration provides new development opportunities for component suppliers. Turbine manufacturers increasingly value supply chain stability and collaboration, willing to establish long-term cooperation relationships with component suppliers. Wind turbine brake pads suppliers with technical advantages have opportunities to become strategic partners.
Standardization construction provides regulatory foundations for industry development. International standard formulation and promotion will facilitate technology exchange and market opening. Enterprises participating in standard formulation can obtain technical discourse rights and market first-mover advantages.
International development provides expansion spaces for enterprises. With “Belt and Road” initiative advancement, Chinese enterprises have opportunities to participate in international wind projects, expanding overseas markets. International development not only expands market scales but also obtains advanced technology and management experience.
Sustainable development concept popularization creates market demand for green products. Environmental materials, recyclable design, clean production, and other green concepts applied in product development will gain market recognition. Green supply chain construction will become new competitive dimensions.
Conclusion: Safeguarding the Future of Clean Energy
In this great era of energy transition, wind turbine brake pads, though merely small components in vast wind power systems, carry the important mission of ensuring clean energy safe and stable operation. From materials science microscopic worlds to engineering application macroscopic systems, from traditional manufacturing to intelligent manufacturing, every wind turbine brake pads technology advance reflects humanity’s relentless pursuit of more efficient, more reliable, and more environmentally friendly energy solutions.
Technological innovation represents fundamental driving forces for industry development. Nanotechnology, intelligent sensing, 3D printing, and other frontier technology applications in wind turbine brake pads fields not only enhance product performance but open unlimited possibilities for future development. We have reason to believe that with continuous breakthroughs in materials science, manufacturing processes, and intelligent technology, wind turbine brake pads will become more intelligent, more reliable, and more environmentally friendly.
Market demand represents ultimate technology development orientations. Global carbon neutrality goal proposals inject unprecedented momentum into wind power industry development. Offshore wind brake technology, distributed wind power, wind-storage integration, and other emerging application scenarios provide rich soil for wind turbine brake pads technology innovation. Only by accurately grasping market demand changes can enterprises remain invincible in fierce competition.
Industry collaboration represents important guarantees for sustainable development. Wind power braking systems industry chain collaborative innovation, standard system comprehensive construction, and deep international cooperation development all create favorable environments for wind turbine brake pads industry healthy development. Future competition will no longer be single enterprise competition but entire ecosystem competition.
Talent cultivation represents industry long-term development cornerstones. Wind turbine brake pads involve materials science, mechanical engineering, control technology, and other disciplines, requiring numerous interdisciplinary talents. Strengthening talent cultivation and building innovation teams represent fundamental guarantees for maintaining technological leadership.
Looking toward the future, wind turbine brake pads will develop toward more intelligent, green, and efficient directions. Intelligent sensing technology will achieve comprehensive equipment condition perception, artificial intelligence algorithms will optimize braking strategies, new material technology will breakthrough performance bottlenecks, and advanced manufacturing technology will improve production efficiency. These technology integration applications will provide strong support for wind power industry high-quality development.
In global energy transition historical processes, every participant shoulders important responsibilities. Whether technical R&D personnel, production manufacturing enterprises, operation and maintenance service providers, or policy makers, all should approach clean energy career development with higher mission senses and responsibility awareness. Let us work together to ensure wind turbine brake pads—these “behind-the-scenes heroes”—safeguard humanity’s clean energy dreams and contribute appropriately to beautiful Earth construction and sustainable development goal achievement.
In the graceful melody of wind turbine blade rotation, in the grand symphony of green energy flowing endlessly, wind turbine brake pads will continue silently standing guard, using their professionalism and reliability to protect humanity’s beautiful aspirations for clean futures. This represents technology’s power, innovation’s value, and our common mission.
