Every time you press the brake pedal and feel your vehicle come to a safe, controlled stop, there’s a fundamental physics parameter working behind the scenes: the brake pad friction coefficient, denoted by the Greek letter μ (mu). This seemingly simple symbol represents one of the most critical performance indicators in your vehicle’s braking system. Whether you’re making a gentle stop during your daily commute or executing an emergency brake in a crisis situation, the friction coefficient is quietly playing a decisive role in your safety.
Yet for most drivers, the brake pad friction coefficient remains a relatively unfamiliar concept. They might know that brake pads need periodic replacement, but they don’t understand why different brake pads can deliver dramatically different braking experiences. They might have experienced the “break-in period” with new brake pads, but they’re unaware of the scientific principles behind this phenomenon.
This comprehensive guide will take you deep into the mysteries of brake pad friction coefficients. From fundamental concepts to real-world applications, from selection strategies to future developments, we’ll explore every aspect of this critical safety parameter that could mean the difference between a close call and a catastrophe.
What is the Friction Coefficient μ Value?
Basic Definition and Physics
The friction coefficient μ is a fundamental concept in tribology that quantifies the ability of two contacting surfaces to resist relative motion. In automotive braking systems, the friction coefficient specifically refers to the frictional characteristics between brake pads and either brake discs (in disc brake systems) or brake drums (in drum brake systems).
From a physics standpoint, the friction coefficient definition stems from Coulomb’s law of friction. When a brake pad is pressed against a brake disc, the friction force generated between the two surfaces is proportional to the normal force pressing them together. This proportionality constant is the friction coefficient μ, expressed mathematically as:
μ = Friction Force / Normal Force
It’s crucial to understand that the friction coefficient is a dimensionless number—a pure ratio that doesn’t depend on the contact area size, but rather represents an inherent property of the materials and surface characteristics. For example, if a brake pad generates 400N of friction force under 1000N of normal force, its friction coefficient is 0.4, regardless of the brake pad’s physical dimensions.
Static vs. Kinetic Friction
In actual braking scenarios, we need to distinguish between two different friction states:
Static friction coefficient refers to the friction coefficient when the brake pad and disc are on the verge of relative motion. This value is typically slightly higher than the kinetic friction coefficient and determines the maximum braking capability of the system. In optimal braking conditions, ABS systems work to maintain wheels at the threshold of lockup without actually locking, thereby maximizing the use of static friction.
Kinetic friction coefficient applies when the two surfaces are sliding relative to each other. When wheels lock completely and tires slide on the road surface, the brake pad and disc are in a state of kinetic friction. Although kinetic friction is usually lower than static friction, it’s the kinetic friction coefficient that’s more relevant in braking system design since it more closely represents actual operating conditions.
μ Value Ranges and Classifications
Brake pad friction coefficients typically range from 0.25 to 0.65, with different ranges representing distinct performance characteristics:
Low Friction Range (0.25-0.35) This range is primarily used in applications requiring extremely gentle braking feel, such as certain luxury vehicle configurations. While braking force is relatively modest, it provides very linear and predictable braking sensations suitable for driving experiences that prioritize ultimate comfort. However, this friction range has become relatively rare in modern automotive applications due to increasingly stringent safety regulations regarding stopping distances.
Medium-Low Friction Range (0.35-0.42) This represents the friction coefficient range for most passenger car OEM brake pads. This range provides an excellent balance between comfort and brake performance, meeting daily driving brake requirements without creating overly sensitive or abrupt braking sensations. For drivers whose primary use is urban commuting, this range offers the ideal choice.
Medium-High Friction Range (0.42-0.50) This range is typically found in sport-oriented vehicles or upgraded brake pads. Higher friction coefficients mean shorter stopping distances and more direct braking response, but may also produce more brake dust and slight noise. This range suits drivers who demand higher brake performance while maintaining reasonable daily usability.
High Friction Range (0.50-0.65) This is the domain of high-performance and racing brake pads. Extremely high friction coefficients deliver outstanding brake performance and significantly reduced stopping distances, making them ideal for aggressive driving or track use. However, pads in this range typically require certain operating temperatures to perform optimally, and their cold-weather performance may not match that of medium-friction products.
The Critical Importance of Friction Coefficients
The Determining Factor in Brake Performance
The friction coefficient is the most direct factor determining brake performance, influencing every aspect of the braking system’s operation. When a driver depresses the brake pedal, brake fluid transmits pressure to the brake calipers, pushing the brake pads against the discs. The resulting braking torque directly depends on the friction coefficient magnitude:
Braking Torque = μ × Normal Force × Effective Radius
This formula clearly shows that with fixed braking system geometry and hydraulic components, increasing the friction coefficient directly results in linear increases in braking torque, translating to shorter stopping distances and greater braking capability.

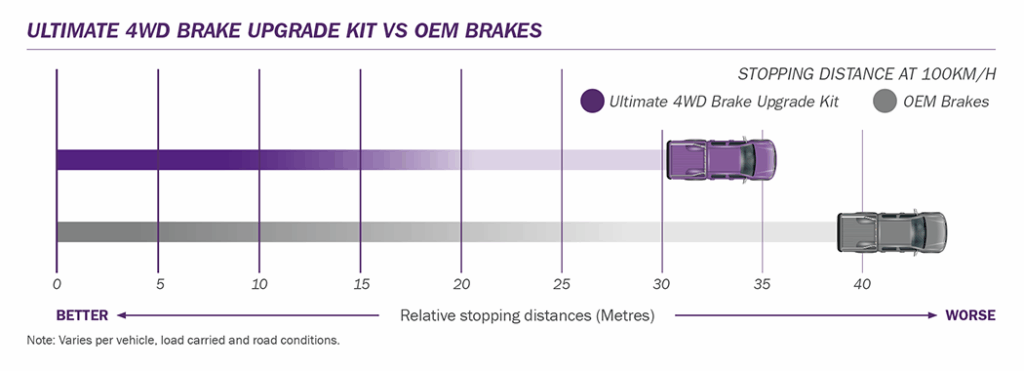

Consider this real-world example: A 1500kg vehicle traveling at 60km/h with brake pads having a friction coefficient of 0.4 would have a theoretical stopping distance of approximately 17.4 meters. If upgraded to brake pads with a 0.5 friction coefficient, all other conditions remaining equal, the stopping distance could be reduced to about 13.9 meters—a 20% improvement. That 3.5-meter difference could be the margin between life and death in an emergency braking situation.
However, stopping distance calculations also involve the friction coefficient between tires and road surface. With good road conditions and adequate tire grip, high brake pad friction coefficients can be fully utilized. On slippery surfaces, even brake pads with very high friction coefficients are ultimately limited by tire traction. This is precisely why modern vehicles are equipped with ABS systems—they prevent wheel lockup while ensuring tires maintain optimal grip conditions.
Core Safety Foundation
The friction coefficient’s impact on driving safety is multifaceted, encompassing both active and passive safety considerations. From an active safety perspective, appropriate friction coefficients provide drivers with predictable and controllable braking experiences, which are crucial for accident avoidance.
The Importance of Predictability Predictable braking response means drivers can accurately judge the relationship between brake pedal input and vehicle deceleration. This consistency is built on a foundation of stable friction coefficients. If friction coefficients fluctuate significantly with temperature, humidity, or wear conditions, drivers struggle to accurately control braking force, potentially leading to either insufficient braking or overbraking, both of which increase accident risk.
Safety Significance of Thermal Stability During continuous or high-intensity braking, brake pad and disc temperatures rise dramatically. If friction coefficients decrease significantly with rising temperatures, “brake fade” occurs. This is particularly dangerous during continuous downhill braking on mountain roads. Quality brake pads should maintain relatively stable friction coefficients across a wide temperature range, ensuring consistent brake performance.
Safety Considerations in System Matching Friction coefficients must also match the vehicle’s overall design. Excessively high friction coefficients may cause overly concentrated braking forces, resulting in brake imbalance or interfering with ABS system operation. Modern automotive braking systems are precisely calculated and extensively tested integrated systems, and arbitrarily installing mismatched high-performance brake pads may prove counterproductive.
Shaping the Driving Experience
Friction coefficients don’t just influence brake performance—they profoundly shape drivers’ braking experience and driving confidence. This influence manifests across multiple dimensions:
Brake Pedal Feel The linear characteristics of friction coefficients determine the linear response of the brake pedal. Ideal friction coefficients should remain relatively stable throughout the entire braking process, allowing drivers to accurately control braking force through pedal feel. If friction coefficients have sudden changes or nonlinear characteristics, it results in brake pedal feel that’s either “wooden” or “sharp,” affecting driving comfort.
Progressivity and Controllability Excellent brake pads should provide progressive braking force delivery, allowing drivers to smoothly transition from light braking to maximum braking. This requires friction coefficients to maintain reasonable change patterns under different pressures—neither too sensitive (making control difficult) nor too sluggish (affecting braking efficiency).
Consistency and Reliability Long-term friction coefficient consistency is crucial for driving experience. If brake pads experience significant friction coefficient changes during their wear cycle, drivers must constantly adapt to new braking characteristics, which not only affects driving comfort but may also create safety hazards.
Factors Affecting Friction Coefficients

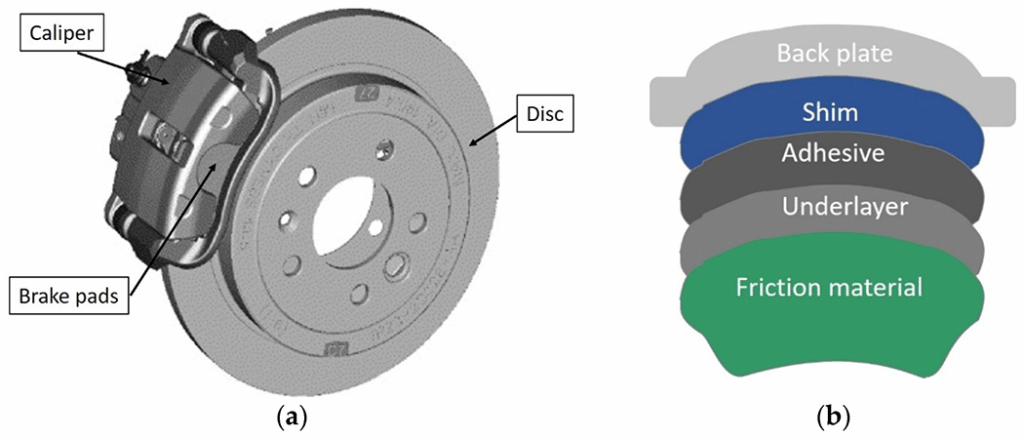

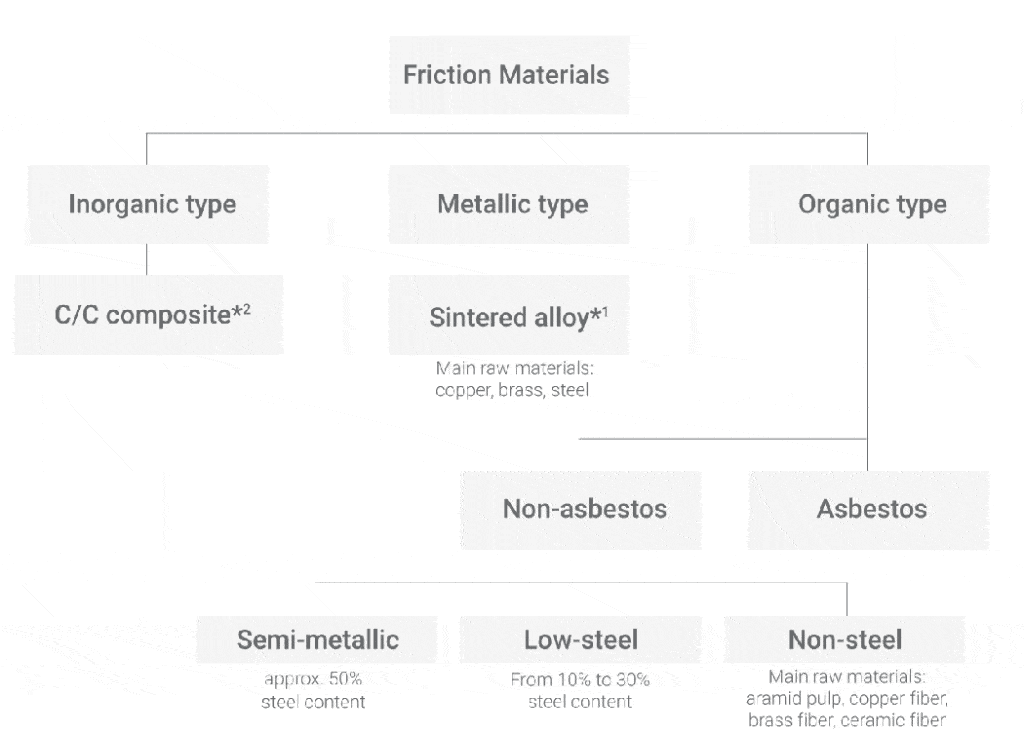

The Decisive Role of Brake Material Composition
Brake pad material composition is the most fundamental factor determining friction coefficients. Modern brake pads typically consist of multiple material blends, with each component serving specific functions, and their proportions directly influence final friction characteristics.
Organic Material Formulations (NAO – Non-Asbestos Organic)
Organic material brake pads primarily consist of organic fibers, fillers, and binders. These brake pads typically have friction coefficients between 0.35-0.45, with the following characteristics:
Aramid fiber serves as the primary reinforcement material, providing basic structural strength and temperature resistance. This synthetic fiber possesses excellent tensile strength and thermal stability, maintaining brake pad structural integrity during the braking process. Carbon fiber addition further enhances material thermal conductivity and structural stability, contributing to friction coefficient stability.
Organic binders like phenolic resins decompose at high temperatures, but this decomposition process is controllable, capable of forming new friction layers on the friction surface to maintain relatively stable friction coefficients. However, this also means organic material brake pads have relatively limited high-temperature performance, typically showing noticeable performance degradation above 300°C.
Filler components such as barium sulfate and calcium carbonate not only serve cost control purposes but more importantly regulate friction characteristics. These fillers participate in surface film formation during friction, affecting friction coefficient stability and noise characteristics.
Semi-Metallic Material Formulations
Semi-metallic brake pads contain 30-65% metallic components, primarily including steel fiber, iron powder, and copper powder. These brake pads typically have friction coefficients between 0.4-0.5:
Steel fiber is the core component of semi-metallic brake pads, providing excellent thermal conductivity and high-temperature stability. During braking, steel fiber rapidly conducts heat, avoiding localized overheating while maintaining structural stability at high temperatures, ensuring friction coefficient consistency.
Copper content significantly improves friction characteristics and thermal conductivity. Copper forms copper oxide layers during friction, and these oxide layers possess moderate hardness and good lubricity, helping provide stable friction coefficients. However, environmental regulations are placing increasingly strict limits on copper content, and modern semi-metallic formulations are seeking copper alternatives.
Graphite’s lubricating action helps reduce abnormal wear and noise while participating in friction film formation. At high temperatures, graphite provides stable lubrication effects, preventing excessive friction coefficient increases that could cause brake shudder.
Ceramic Material Formulations
Ceramic brake pads represent the current highest technology level in consumer brake pads, with friction coefficients typically between 0.4-0.5, but with outstanding stability:
Ceramic fibers such as aluminum oxide and aluminum silicate fibers provide extremely high temperature resistance and structural stability. These fibers maintain performance stability at temperatures above 600°C, providing assurance for performance consistency under extreme braking conditions.
Ceramic particles like aluminum oxide and silicon carbide possess moderate hardness and excellent wear resistance. These particles maintain relatively stable shape and dimensions during friction, helping maintain consistent friction characteristics.
Specially treated organic matrix materials can form stable carbonization layers at high temperatures. These carbonization layers possess good friction characteristics and thermal stability, representing the key to ceramic brake pad superior performance.
Carbon Fiber Material Formulations
Carbon fiber brake pads are primarily used in high-end sports cars and racing vehicles, with friction coefficients reaching 0.5-0.6:
Carbon fiber matrix provides extremely light weight and exceptional strength-to-weight ratio. During high-speed braking, lighter unsprung mass helps reduce braking system inertia, improving braking response speed.
Carbon-based friction materials exhibit unique friction characteristics at high temperatures, maintaining stable or even slightly increasing friction coefficients in the 400-800°C temperature range, contrasting sharply with traditional materials’ high-temperature degradation characteristics.
However, carbon fiber brake pads also have limitations: they have lower friction coefficients at low temperatures and require certain operating temperatures to achieve optimal performance; manufacturing costs are extremely high, limiting them mainly to ultra-high-end applications.

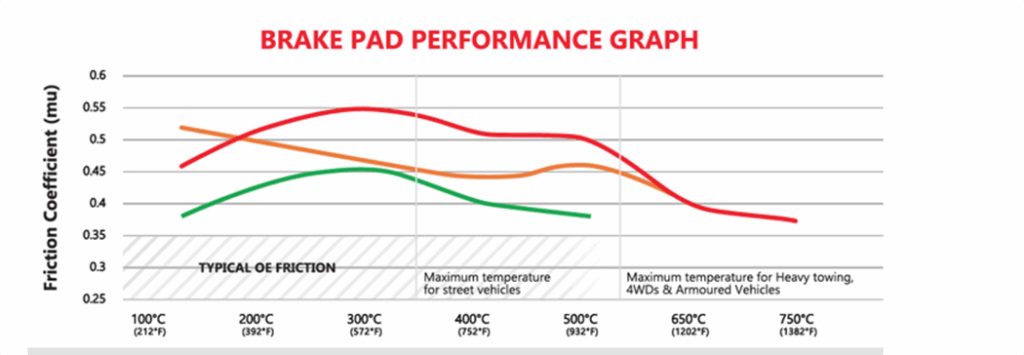

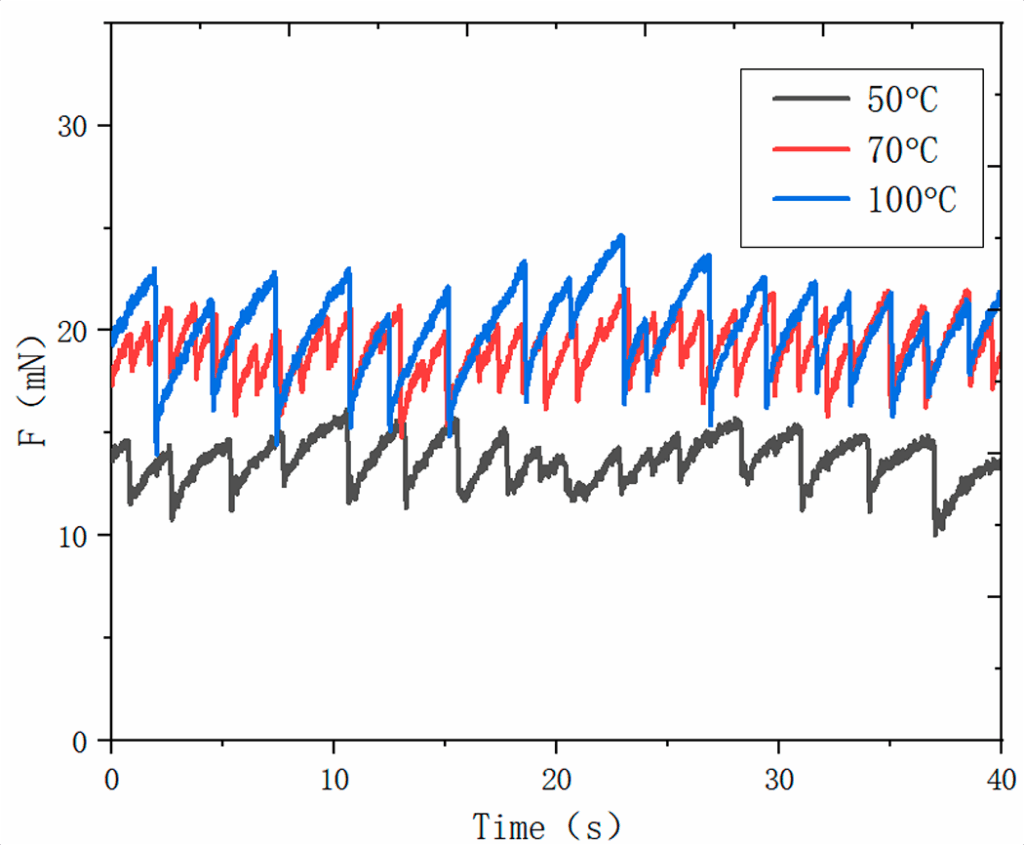

Critical Temperature Effects
Temperature’s impact on friction coefficients is complex and critical. Understanding this influence is essential for correctly selecting and using brake pads.
Low Temperature Phase (Room Temperature – 100°C)
In this temperature range, most brake pads have relatively low and unstable friction coefficients, primarily because:
Friction surfaces haven’t yet formed stable friction films. During initial braking, contact between brake pads and discs is mainly mechanical contact, lacking stable friction layers formed through chemical reactions.
Volatile components in materials haven’t been completely released. Many brake pads contain certain amounts of moisture and organic solvents during manufacturing, and these components form lubricating films on friction surfaces at low temperatures, reducing friction coefficients.
Material thermal softening hasn’t begun. Many friction materials require certain temperatures to achieve optimal hardness and elasticity states. At low temperatures, materials may be too hard or too soft, affecting friction effectiveness.
This explains why many high-performance brake pads feel relatively weak during cold starts and need several braking applications to “warm up.”
Operating Temperature Range (100-300°C)
This is the optimal operating temperature range for most brake pads, where friction coefficients reach design values and maintain stability:
Formation and stabilization of friction films: At these temperatures, various components in brake pad materials begin chemical reactions, forming stable transfer films on friction surfaces. These transfer films possess moderate hardness and good friction characteristics, forming the foundation for stable friction coefficients.
Optimization of material properties: Most friction materials are designed targeting this temperature range, with material hardness, elasticity, thermal conductivity, and other properties reaching optimal matching at these temperatures.
Thermal expansion adaptability: Thermal expansion of braking system components within this temperature range is predictable and controllable, not adversely affecting friction contact.
Medium-High Temperature Phase (300-500°C)
In this temperature range, different brake pad materials show significant differences:
Organic material brake pads begin showing noticeable performance degradation. Organic binders start decomposing, and while decomposition products may form new friction layers, overall strength decreases and friction coefficients become unstable.
Semi-metallic material brake pads typically maintain relatively stable performance, with steel fiber’s high melting point and good thermal conductivity helping maintain friction coefficients. However, if temperatures continue rising, metal oxidation may affect surface characteristics.
Ceramic material brake pads perform most stably in this temperature range, with ceramic components’ high melting points and chemical stability ensuring friction coefficient consistency.
High Temperature Phase (Above 500°C)
At extremely high temperatures, most consumer brake pads experience significant performance degradation:
Material structure destruction: High temperatures cause complete binder decomposition, fiber materials may undergo structural changes, and friction material overall integrity becomes compromised.
Accelerated oxidation: Rapid oxidation of metallic components changes surface chemical composition, potentially causing dramatic friction coefficient variations.
Gas generation: Gases produced by material decomposition may create gas cushion effects on friction surfaces, significantly reducing friction coefficients.
Only specialized high-temperature materials like carbon-carbon composites can maintain stable performance in this temperature range, but such materials are primarily used in racing and other extreme applications.
μ Values in Different Driving Scenarios
Urban Driving’s Unique Requirements
Urban driving environments present unique demands on brake pad friction coefficients that differ significantly from other driving scenarios.
Challenges of Frequent Braking The most distinctive characteristic of urban driving is extremely high braking frequency. Statistics show that in congested urban environments, drivers average 15-20 braking events per kilometer, far exceeding the 2-3 times typical of highway driving. This high-frequency braking places special demands on friction coefficients:
Cold start performance becomes critically important. Since individual braking events in urban driving are typically low-intensity, brake pads rarely reach high operating temperatures, requiring stable friction coefficients at relatively low temperatures. Ideal urban brake pads should provide 80% or more of their design friction coefficient in the 50-150°C temperature range.
Progressivity plays a key role. Most urban braking is anticipatory and gentle, requiring drivers to precisely control braking force. This demands friction coefficients that have good linear response even at low pressures, avoiding sudden braking force engagement that causes passenger discomfort.
Long-term stability requirements are paramount. While individual braking intensity is low, cumulative braking frequency is enormous, requiring brake pads to maintain stable performance during extended low-intensity friction, avoiding friction coefficient degradation due to material fatigue.
Comfort-First Considerations Urban driving typically involves passengers, making comfort a major consideration:
Noise control requires friction coefficient stability. Brake noise primarily stems from unstable friction coefficient changes, particularly stick-slip phenomena. Urban brake pads need smooth friction coefficient curves across wide pressure and speed ranges to avoid resonance and abnormal sounds.
Dust control also relates to friction coefficients. While dust primarily results from material wear, friction coefficient stability affects wear uniformity. Unstable friction coefficients lead to localized excessive wear, increasing dust generation.
Recommended μ Range: 0.35-0.42 This range provides optimal comprehensive performance for urban driving:
The 0.35 lower limit ensures adequate braking capability. While relatively low, this value is sufficient for most urban driving scenarios, enabling braking completion within reasonable distances.
The 0.42 upper limit avoids overly sensitive braking response. Higher friction coefficients, while providing stronger braking force, may cause excessively abrupt braking in urban low-speed environments, affecting ride comfort.
Friction coefficients within this range typically possess good temperature stability, maintaining consistent performance in the low-temperature environments typical of urban driving.
Highway Driving Performance Requirements
Highway driving places demands on brake pad friction coefficients that are drastically different from urban driving, primarily manifesting in adaptation capability for high-energy braking events.
High-Speed Braking Energy Challenges Highway braking typically involves higher speeds and greater kinetic energy conversion:
The magnitude difference in kinetic energy conversion is enormous. A 1500kg vehicle braking from 120km/h to stop must convert approximately 2.77 million joules of kinetic energy, while braking from 60km/h requires only 690,000 joules—nearly a four-fold difference. This massive energy conversion severely tests friction coefficient thermal stability.
Concentrated braking time increases instantaneous power density. High-speed braking often occurs in relatively short timeframes, meaning extremely large amounts of energy must be converted per unit time, placing high demands on friction coefficient stability at elevated temperatures.
Inertial force effects require stronger braking forces. During high-speed travel, initial braking must overcome significant inertial forces, requiring friction coefficients that can quickly establish and maintain high levels.
Critical Role of Thermal Management In highway driving, thermal management becomes a key factor affecting friction coefficients:
Temperature rise speed and magnitude far exceed urban driving. During high-speed emergency braking, brake pad surface temperatures may rise from 100°C to over 400°C within seconds. This dramatic temperature change demands friction coefficients with exceptional thermal stability.
Heat dissipation capability directly influences continuous braking performance. Highways may present scenarios requiring multiple high-intensity braking events, such as continuous downhill sections or emergency avoidance maneuvers. If friction coefficients decrease significantly with rising temperature, brake fade occurs, seriously threatening driving safety.
Thermal expansion matching affects braking consistency. In high-temperature environments, thermal expansion of brake pads and discs must remain coordinated; otherwise, contact area and pressure distribution are affected, leading to uneven friction coefficient distribution.
Recommended μ Range: 0.40-0.48 This range provides a balance of safety and practicality for highway driving:
The 0.40 lower limit ensures sufficient braking capability to handle high-speed braking challenges. At this friction coefficient, modern braking systems can provide adequate braking torque for most highway braking scenarios.
The 0.48 upper limit avoids excessive braking sensitivity. While higher friction coefficients could further reduce stopping distances, overly sensitive braking response during high-speed driving may lead to vehicle loss of control, particularly during emergency braking.
Friction coefficients within this range typically possess good temperature stability, maintaining relatively stable performance in the high-temperature environments of high-speed braking.
Mountain Driving’s Ultimate Test
Mountain driving, particularly long downhill sections, presents the most demanding test of brake pad friction coefficients, primarily manifested in performance retention capability under sustained high-load conditions.
Thermal Accumulation Effects of Continuous Braking Continuous braking in mountain driving differs fundamentally from intermittent braking in other scenarios:
Sustained heat accumulation presents the greatest challenge. During long downhill sections, braking systems have virtually no cooling time, with heat continuously accumulating. Brake pad temperatures may rise from ambient to over 500°C within minutes and remain in high-temperature zones for extended periods.
Energy density reaches extreme limits. Consider a 2000kg SUV on a 5-kilometer downhill with 10% grade: if relying entirely on the braking system for speed control, the gravitational potential energy requiring conversion approximates 9.8 million joules, equivalent to dozens of consecutive high-speed emergency stops.
Uneven temperature distribution increases localized overheating risks. During continuous braking, certain brake disc areas may experience localized overheating due to uneven contact pressure, causing abnormal friction coefficient changes in those regions and affecting overall braking effectiveness.
Comprehensive Testing of Material Limits Mountain driving pushes brake pad material properties to their limits:
High-temperature stability faces severe testing. When brake pad temperatures exceed 400°C, most organic materials begin decomposing, metallic materials start oxidizing, and only exceptionally designed materials can maintain stable friction coefficients at such elevated temperatures.
Mechanical strength durability undergoes testing. Material mechanical properties decrease significantly at high temperatures while simultaneously bearing enormous mechanical stresses, placing extremely high demands on material high-temperature strength and fatigue resistance.
Chemical stability endures prolonged testing. Extended high-temperature operation accelerates various chemical reactions including oxidation, decomposition, and phase changes, all of which may affect friction coefficient stability.
Recommended μ Range: 0.45-0.52 This relatively high friction coefficient range is necessary for mountain driving safety:
The 0.45 lower limit ensures adequate braking capability even under high-temperature conditions. Even when braking system temperatures are extremely high, this friction coefficient can still provide basic braking assurance.
The 0.52 upper limit provides strong braking force while avoiding excessive system loading. Excessive friction coefficients may cause other braking system components (such as discs and brake fluid) to exceed design limits.
Friction coefficients within this range typically come from high-performance material formulations with excellent high-temperature stability and fade resistance, representing necessary conditions for meeting mountain driving challenges.
Track Use: The Ultimate Pursuit
Track driving represents the ultimate pursuit of braking system performance, placing the most demanding requirements on friction coefficients—requirements often dramatically different from daily driving.
Extreme Braking Performance Requirements Track braking intensity and frequency reach extreme levels:
Maximum braking force pursuit: On track, every meter of stopping distance reduction can translate to lap time improvement. Therefore, track brake pads need to provide maximum braking force within physical limits, typically requiring friction coefficients of 0.5 or higher.
Extreme frequency testing: On a typical track, each lap may include 8-12 braking points, requiring 200-300 high-intensity braking events during a 20-minute practice session—frequency far exceeding any daily driving scenario.
Absolute consistency requirements: On track, each braking event must perform identically. Any minor variation may affect driver confidence and lap times, requiring friction coefficients to maintain extremely high stability throughout the entire usage period.
Adaptation to Extreme Temperature Environments Track braking pushes temperatures to material limits:
Extreme operating temperatures: Track brake pad operating temperatures frequently exceed 600°C, and in some extreme cases may reach 800°C or higher, requiring materials with extraordinary high-temperature performance.
Severe temperature cycling: On track, brake pad temperatures may rise from 200°C to 600°C within seconds, then rapidly cool to 400°C on straightaways. This severe temperature cycling places extremely high demands on material thermal fatigue performance.
Extreme thermal gradients: During high-intensity braking, temperature differences between brake pad surfaces and interiors may exceed 200°C. These massive thermal gradients create serious thermal stresses, requiring materials with excellent thermal expansion coordination.
Recommended μ Range: 0.50-0.65 This high friction coefficient range is a necessary condition for track performance:
The 0.50 lower limit represents basic requirements for modern track braking. Friction coefficients below this value cannot provide sufficient braking force to meet track’s extreme braking demands.
The 0.65 upper limit balances performance with controllability. While higher friction coefficients could theoretically provide stronger braking force, excessive values may make braking overly sensitive, affecting precise driver control.
Friction coefficients within this range typically feature excellent high-temperature stability and fade resistance, maintaining consistent performance under track’s extreme conditions.
Selecting Appropriate Friction Coefficients
Vehicle Type Matching Considerations
Different vehicle types have varying brake pad friction coefficient requirements, stemming from differences in design objectives, weight distribution, power characteristics, and intended usage scenarios.
Compact Cars’ Balanced Requirements Compact cars typically weigh 1000-1300kg with moderate power output, primarily used for urban commuting:
Weight advantages result in relatively small braking loads. Lighter vehicle weight means less kinetic energy requiring conversion during braking, reducing absolute friction coefficient requirements. A range of 0.38-0.45 typically satisfies needs.
Cost sensitivity requires performance-price balance. Compact car users are typically cost-conscious, needing balance between performance and price. Medium friction coefficient brake pads meet performance needs while controlling costs.
Comfort-priority usage characteristics: These vehicle users typically prioritize driving comfort, including braking smoothness and low-noise characteristics. Moderate friction coefficients help provide linear and predictable braking feel.
Mid-Size Cars’ Comprehensive Considerations Mid-size cars typically weigh 1300-1600kg with stronger power and more diverse usage scenarios:
Increased weight brings elevated braking requirements. Greater vehicle weight and potential full-load conditions require higher braking capability, with friction coefficients typically needing to be in the 0.42-0.48 range.
Power-matched braking performance requirements: Mid-size cars typically feature more powerful engines, correspondingly requiring stronger braking capability to match power output and ensure vehicle dynamic balance.
Diverse usage scenario adaptability: Mid-size cars may encounter urban commuting, highway cruising, and occasional mountain driving, requiring friction coefficients that remain stable across broad operating ranges.
Large Luxury Cars’ Premium Requirements Large luxury cars typically exceed 1600kg weight with high demands for both braking performance and quality:
Dual challenges of weight and power: Large luxury cars are not only heavy but typically feature high-output engines. Braking systems must handle greater kinetic energy conversion, usually requiring friction coefficients of 0.45-0.52.
Stringent quality requirements: Luxury car users have extremely high demands for braking experience quality, including braking force linearity, pedal feel, and braking process smoothness. This requires friction coefficients with exceptional stability and consistency.
Advanced technology integration needs: Large luxury cars typically feature advanced braking assistance systems like automatic emergency braking and adaptive cruise control, requiring high precision in braking response.
Driving Habit Personalization Matching
Each driver’s driving style is unique, and these personalized driving habits directly influence friction coefficient requirements.
Gentle Drivers’ Comfort Priority Gentle driving styles typically feature strong foresight, gradual braking, and rare emergency stops:
Anticipatory braking characteristics require friction coefficients with good response at low pressures. Gentle drivers typically begin braking early with relatively low pressure, requiring brake pads to provide stable friction coefficients even at low-pressure states.
Progressive braking needs emphasize friction coefficient linear characteristics. Gentle drivers prefer slowly increasing braking pressure, requiring friction coefficients to change linearly throughout the braking process, avoiding sudden braking force jumps.
High comfort emphasis: Gentle drivers typically care greatly about braking process comfort, including vehicle pitch during braking, brake noise, and braking smoothness, requiring selection of relatively low but stable friction coefficients.
For these drivers, recommended friction coefficient range is 0.35-0.42, focusing on low-temperature performance and linear characteristics.
Aggressive Drivers’ Performance Priority Aggressive driving styles typically feature frequent braking, high intensity, and high performance demands:
High-intensity braking frequency requires friction coefficients with excellent thermal stability. Aggressive driving often involves emergency braking, causing rapid braking system temperature increases requiring stable friction coefficients at high temperatures.
Immediate braking response requirements need relatively high friction coefficient values. Aggressive drivers want braking response as direct and rapid as possible, typically requiring relatively high friction coefficients to provide adequate braking force.
Performance limit exploration needs require friction coefficients with good extreme characteristics. Aggressive drivers may test vehicle braking limits in safe environments, requiring friction coefficients that remain stable and controllable under extreme conditions.
For these drivers, recommended friction coefficient range is 0.48-0.55, focusing on high-temperature performance and extreme stability.
Testing and Evaluation of Friction Coefficients
International Standard Testing Methods
Accurate friction coefficient testing forms the foundation for ensuring braking safety. Internationally, a complete testing standard system has been established.
SAE J2522 Standard’s Authoritative Position SAE J2522 is the most authoritative international testing standard for brake friction materials:
The scientific nature and comprehensiveness of testing procedures: SAE J2522 specifies complete procedures from cold effectiveness testing to high-temperature fade testing, covering all operating conditions brake pads might encounter. Testing includes four main stages: baseline testing, first fade testing, second fade testing, and final testing, each with specific temperature and braking intensity requirements.
Extremely high standardization of test conditions: The standard specifies precise testing parameters including brake disc material (gray cast iron, HB187-241), test speed sequences, brake pressure, and cooling methods, ensuring test result comparability across different laboratories.
Comprehensive evaluation indicators: SAE J2522 tests not only friction coefficients but also evaluates wear rate, compressibility, shear strength, and other indicators, providing comprehensive evaluation of brake material overall performance.
ECE R90 Regulation’s Strict Requirements ECE R90 is the European brake system type approval regulation, characterized by strict safety requirements:
Mandatory enforcement power of regulatory nature: Unlike technical standards, ECE R90 is mandatory regulation; all brake products sold in Europe must pass certification, ensuring basic safety of market products.
Systematic testing for complete vehicle matching: ECE R90 tests not only friction material performance itself but also requires complete vehicle brake testing, ensuring friction coefficient compatibility with complete vehicle braking systems.
Strict production consistency requirements: Regulations require manufacturers to establish strict quality control systems, ensuring mass-produced products maintain consistent friction coefficient characteristics with certified samples.
Key Testing Parameters Deep Analysis
Friction coefficient testing involves multiple key parameters, each with specific significance and importance.
Cold Friction Coefficient’s Fundamental Position Cold friction coefficient is the basic parameter for brake performance evaluation:
Standardized definition and test conditions: Cold friction coefficient is typically measured at 100°C temperature conditions. This temperature is considered the “normal” operating starting point for braking systems, avoiding environmental temperature influences while not yet reaching temperatures where material performance changes significantly.
Critical practical significance: Cold friction coefficient directly relates to initial braking effectiveness after vehicle startup, particularly in urban driving’s numerous low-intensity braking scenarios. If cold friction coefficient is too low, drivers may feel unsatisfied with braking effectiveness during startup phases.
Evaluation standard setting basis: Most standards require cold friction coefficient not below 0.25, a value determined through extensive actual road testing as the minimum safety requirement. Quality brake pads typically have cold friction coefficients between 0.35-0.45.
Hot Friction Coefficient Performance Indicators Hot friction coefficient reflects material’s true performance at operating temperatures:
Working temperature selection basis: Common test temperatures include 150°C, 200°C, 250°C, 300°C, representing typical operating temperatures under different braking intensities. 150°C corresponds to light braking, 200°C to moderate braking, and 250°C+ to heavy braking.
Temperature stability evaluation methods: Hot friction coefficient requires examination not only of absolute values but also trends with temperature changes. Ideal friction materials should maintain relatively stable friction coefficients throughout the entire operating temperature range, with variation not exceeding ±0.05.
Practical application guidance significance: Hot friction coefficient directly relates to brake performance during normal driving, particularly performance retention capability during continuous or high-intensity braking. If hot friction coefficient is significantly lower than cold values, “brake softening” phenomena may occur.

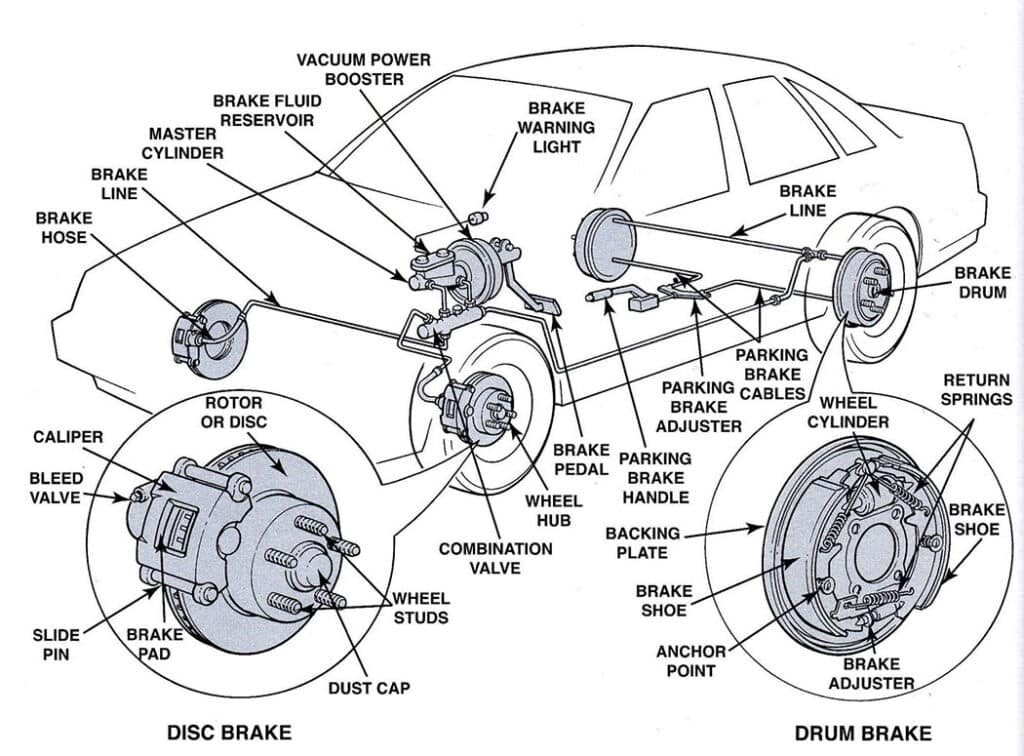

Friction Coefficient and Braking System Matching
Integrated System Considerations
Modern automotive braking systems are precision integrated systems where friction coefficient isn’t an isolated parameter but must coordinate with every system component.
Brake Disc Material Matching Importance The matching relationship between brake disc materials and brake pad friction coefficients is extremely complex:
Classic gray cast iron brake disc pairing remains mainstream. Traditional gray cast iron brake discs possess good thermal conductivity and stable friction characteristics, maintaining good compatibility with brake pads across most friction coefficient ranges. Their graphite flake structure provides natural lubrication during friction, helping achieve stable friction coefficients.
Ductile iron brake discs require special friction coefficient matching. Ductile iron possesses higher strength and toughness but has different friction characteristics compared to gray iron. Matching brake pads must provide stable friction coefficients on harder surfaces, typically requiring material formulation adjustments.
Composite material brake discs have premium matching requirements: Carbon-ceramic brake discs and other high-end products possess extremely high temperature resistance but require brake pads to maintain stable high friction coefficients across extremely wide temperature ranges. This matching typically appears in high-performance vehicles.
ABS System Matching Requirements Modern vehicles’ universally equipped ABS systems have special friction coefficient requirements:
Friction coefficient stability’s critical impact on ABS operation: ABS systems prevent wheel lockup by controlling brake pressure, requiring friction coefficients to remain stable and predictable during rapid pressure changes. If friction coefficients exhibit lag or nonlinear characteristics, ABS adjustment accuracy may be affected.
Response speed matching requirements: ABS systems adjust at frequencies of dozens of times per second, requiring friction coefficients to rapidly respond to pressure changes without noticeable lag.
Operating range compatibility considerations: ABS systems typically operate within a friction coefficient range of 0.1-0.8, requiring brake materials to exhibit good linear characteristics and stability within this range.
Temperature adaptability importance: ABS systems may operate under various temperature conditions, from harsh winter cold to scorching summer heat, requiring friction coefficients to maintain good ABS system compatibility across wide temperature ranges.
Front and Rear Brake Force Distribution Balance
Automotive braking systems‘ front-to-rear brake force distribution represents a complex engineering balance problem, with friction coefficient selection directly impacting this balance.
Physical Foundation of Weight Transfer Weight transfer during braking is an unavoidable physical phenomenon:
Increased front axle loading during braking results directly from weight transfer. According to physical laws, vehicle center of gravity shifts forward during braking, increasing front axle weight while decreasing rear axle weight. This weight transfer extent depends on braking intensity, vehicle center of gravity height, wheelbase, and other factors.
Theoretical maximum braking force calculation must consider weight transfer. Without wheel lockup, maximum braking force each wheel can provide equals that wheel’s load multiplied by tire-to-road friction coefficient. Due to weight transfer, front and rear wheel load distribution changes.
Ideal brake force distribution curve mathematical modeling: Optimal front-to-rear brake force distribution should enable front and rear wheels to simultaneously reach lockup threshold, fully utilizing each tire’s traction for shortest stopping distances.
Coordinated Front-Rear Friction Coefficient Selection Front and rear brake pad friction coefficient selection requires precise engineering calculations:
Front brake pads typically need relatively higher friction coefficients. Due to forward weight transfer during braking, front wheels handle more braking tasks, typically 70-80% of total braking force. Therefore, front brake pads require higher friction coefficients to provide adequate braking force.
Rear brake pad friction coefficient selection emphasizes stability more. Rear wheels experience reduced loading during braking; if rear brake pad friction coefficients are too high, premature rear wheel lockup may occur, causing vehicle loss of control. Therefore, rear brake pad friction coefficients are typically slightly lower than front pads.
Precise friction coefficient ratio control: Front-to-rear brake pad friction coefficient ratios are typically controlled between 1.1-1.3, requiring precise calculation and calibration based on specific vehicle parameters.
Temperature characteristic coordination considerations: Front and rear brake pads may experience different temperature changes during braking, with front pad temperatures rising faster, necessitating ensuring front-to-rear friction coefficient ratios remain relatively stable across different temperatures.
Future Development Trends and Technological Innovation
Breakthrough Directions in New Brake Material Technologies
Brake friction material technology is undergoing profound transformation, with new material technology developments providing unprecedented possibilities for friction coefficient optimization.

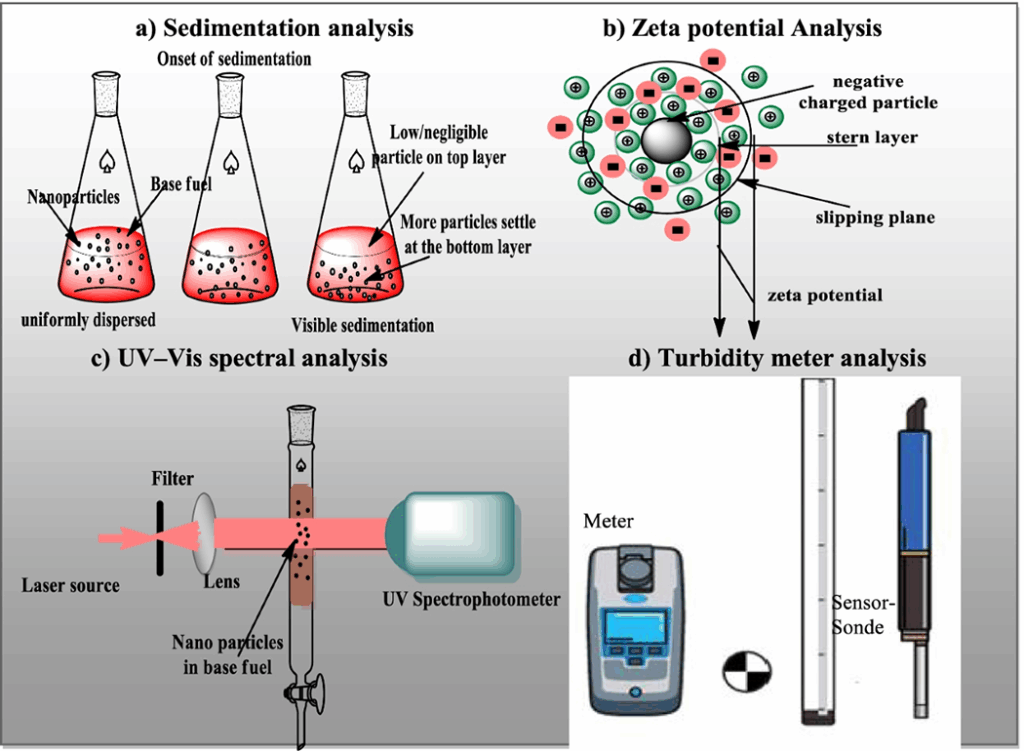

Revolutionary Impact of Nanomaterial Technology Nanotechnology applications in friction materials are creating entirely new possibilities:
Surface effects of nanoparticles significantly alter friction mechanisms. Nano-scale friction particles possess extremely large specific surface areas, capable of forming more uniform and stable friction films during friction processes. For example, nano aluminum oxide particle addition can maintain high friction coefficients while significantly reducing wear rates—a seemingly contradictory effect representing the special properties of nanoscale materials.
Reinforcement effects of nanofibers provide new design concepts. Carbon nanotubes and graphene represent new nanomaterials with extremely high strength and unique thermal conductivity. Incorporating these materials in appropriate proportions into friction materials maintains structural stability at high temperatures, ensuring friction coefficient consistency.
Synergistic effects of nanocomposite materials open new pathways for performance optimization. Through precise control of different nanomaterial ratios and distribution, performance combinations unachievable with traditional materials become possible. For example, combining thermally conductive nanomaterials with high-friction nanoparticles can achieve composites with both high friction coefficients and excellent heat dissipation performance.
Molecular-level friction control becomes research frontier. By introducing specific molecular structures into friction materials, friction characteristics can be controlled at molecular levels. This precision control promises “tailored” friction coefficients, providing optimized friction characteristics for different application scenarios.
Smart Responsive Materials’ Cutting-Edge Exploration Smart material technology provides possibilities for adaptive friction coefficient control:
Temperature-responsive materials’ intelligent adjustment functions are becoming reality. These materials can automatically adjust friction characteristics based on operating temperature, providing higher friction coefficients at low temperatures for braking response assurance, and appropriately reducing friction coefficients at high temperatures to prevent overheating. This adaptive characteristic promises to solve traditional materials’ difficulty balancing performance across wide temperature ranges.
Pressure-sensitive materials’ dynamic response characteristics provide new tools for precise braking control. These materials’ friction coefficients can adjust based on brake pressure magnitude, providing gentle braking feel during light application and strong braking force during heavy application, achieving more humanized braking experiences.
Humidity-responsive materials solve the classic rainy-day braking problem. Traditional friction materials show significant performance degradation in humid environments, while new humidity-responsive materials can automatically adjust surface characteristics when detecting increased humidity, compensating for humidity’s negative friction coefficient effects.
Multi-field responsive materials represent the highest level of intelligent friction materials. These materials can simultaneously respond to temperature, pressure, humidity, and other environmental factors, achieving truly adaptive performance optimization.
Biomimetic Materials’ Innovative Inspiration Friction phenomena in nature provide rich inspiration for artificial material design:
Gecko footpad microstructure inspires new friction surface designs. Geckos can climb stably on various surfaces, with their footpads’ microstructure possessing unique friction characteristics. Friction materials designed mimicking this structure can maintain high friction coefficients while reducing wear.
Shark skin drag reduction principles apply to friction material surface design. By creating shark skin-like microstructures on friction surfaces, friction heat generation can be reduced while maintaining friction coefficients, improving high-temperature performance.
Tree ring layered structures provide new concepts for composite material design. Layered friction materials mimicking ring structures can achieve different functions at different levels, realizing diversified friction performance optimization.
Green Environmental Materials’ Sustainable Development Environmental requirements drive friction material technology toward more sustainable directions:
Plant fiber-based friction materials’ environmental advantages become increasingly apparent. Coconut fiber, flax fiber, and other natural plant fibers, after special treatment, can provide good friction performance while being completely biodegradable and environmentally friendly.
Recycled material circulation utilization technology is maturing. Through advanced recycling technology, valuable components from waste brake pads can be reused to manufacture new friction materials, achieving true circular economy.
Harmless chemical material substitution research continues deepening. Some components in traditional friction materials may impact environment or health; new material research seeks performance-equivalent but safer alternative materials.
Technological Transformation Driven by Environmental Regulations
Increasingly strict environmental regulations are profoundly changing friction material industry technological development directions.
Copper-Free Formulation Technical Challenges and Breakthroughs Copper plays important roles in traditional friction materials, but environmental regulations place increasingly strict limits on copper content:
Deep analysis of copper functional mechanisms reveals substitution difficulty. Copper oxide layers formed during friction possess moderate hardness and good thermal conductivity, providing stable friction coefficients and effective heat dissipation. Finding alternative materials with similar functions presents enormous technical challenges.
Steel fiber substitution technology development status: Surface-treated steel fibers can partially replace copper functions but still have gaps in thermal conductivity and friction stability. Latest research focuses on steel fiber surface modification and optimal proportioning.
Ceramic materials’ substitution potential is being deeply explored. Some ceramic materials possess thermal conductivity and friction characteristics similar to copper, but cost and processing difficulty remain problems requiring solutions.
Systematic research on composite substitution solutions: Single materials cannot completely replace copper’s multiple functions; researchers are exploring composite substitution solutions involving multiple materials working synergistically.
Innovative Development of Low-Dust Technology Brake dust environmental impact receives increasing attention, driving rapid low-dust technology development:
Scientific research on dust generation mechanisms provides theoretical foundation for technology development. Brake dust primarily originates from friction material and brake disc wear, with generation quantities closely related to friction coefficient, wear rate, friction speed, and other factors.
Material formulation optimization dust control effects: Through adjusting friction material hardness distribution and fiber structure, dust generation can be significantly reduced while maintaining friction coefficients. For example, special fiber weaving structures can reduce dust generation by 30-50%.
Surface coating technology application prospects: Applying special coatings to brake pad surfaces can alter friction surface microstructure, reducing dust production and dispersion.
Dust collection system integrated design: Some advanced braking systems begin integrating dust collection devices, collecting dust at generation sources to prevent environmental emission.
Intelligence and Digitalization Development
Digital technology development provides entirely new tools and methods for friction coefficient monitoring, prediction, and optimization.
Real-Time Monitoring Technology Breakthroughs Real-time friction coefficient monitoring technology development provides new possibilities for active safety:
Sensor technology miniaturization and precision enhancement: New friction sensors can install directly in braking systems, real-time monitoring friction coefficient changes. These sensors are small, fast-responding, and highly accurate, providing precise data without affecting brake performance.
Wireless transmission technology applications make data transmission more convenient. Friction coefficient data can transmit wirelessly to vehicle electronic control systems, achieving integration with other vehicle systems.
Intelligent data processing algorithms enhance monitoring practical value. Through machine learning algorithms, systems can identify potential problems from friction coefficient change patterns, providing warning functions.
Predictive Maintenance Technology Development Data analysis-based predictive maintenance technology is changing brake pad maintenance models:
Mathematical modeling of wear models provides scientific foundation for prediction. By analyzing friction coefficient, braking frequency, operating temperature, and other parameters, precise wear prediction models can be established, accurately predicting brake pad remaining life.
Big data analysis technology applications improve prediction accuracy. Collecting massive vehicle braking data and using big data analysis technology to find friction coefficient change patterns provides references for individual vehicle maintenance.
Cloud service integrated management: Vehicle braking data can upload to cloud servers, providing personalized maintenance recommendations through professional analysis services.
Artificial Intelligence Optimization Design Artificial intelligence technology applications in friction material design have broad prospects:
Material genome engineering applications accelerate new material development. Through AI algorithms analyzing relationships between material composition and performance, material formulations with ideal friction coefficient characteristics can be rapidly screened, greatly shortening development cycles.
Machine learning optimization algorithms in friction coefficient calibration applications: Traditional friction coefficient optimization relies on experience and trial-and-error, while machine learning algorithms can find optimal material proportions and process parameters from extensive experimental data.
Virtual simulation technology precise modeling capabilities: Through establishing accurate friction coefficient simulation models, different material formulation performance under various operating conditions can be predicted in computers, providing guidance for actual development.
Digital Twin Technology Application Prospects Digital twin technology provides new tools for braking system full-lifecycle management:
Virtual braking system precise modeling: Through digital twin technology, virtual models completely corresponding to actual braking systems can be established, real-time reflecting friction coefficient and other key parameter changes.
Real-time synchronized data updating mechanisms: Actual braking system operating data updates real-time to digital twin models, enabling virtual models to accurately reflect actual states.
Powerful predictive analysis functions: Based on digital twin models, braking system performance under future various operating conditions can be predicted, discovering potential problems in advance.
Practical Application Case Studies
Performance Comparison of Different Friction Coefficient Products
Through specific product case analysis, we can more intuitively understand friction coefficient impacts on actual performance.
Economy Product Case (μ=0.35-0.40) Using a well-known brand’s economy brake pad with design friction coefficient of 0.38:
Actual road testing results demonstrate economy product characteristics. Under urban driving conditions, this product provides stable brake performance with stopping distances meeting safety standards. The 60km/h to stop braking distance is approximately 18.5 meters—slightly longer than high-performance products but within acceptable ranges.
Temperature characteristic performance reflects cost control influences. In continuous braking tests, when brake disc temperature rises to 300°C, friction coefficient drops to 0.32, approximately 15% degradation. This performance typically won’t cause problems in daily use but requires more attention to braking techniques during mountain long-distance downhills.
User experience feedback focuses on comfort aspects. Most users report this product’s braking feel is gentle and progressive, with rare brake noise and abnormal wear. Brake dust generation is moderate, with wheel cleanliness impact within acceptable ranges.
Cost-effectiveness analysis demonstrates economy product value. While absolute performance doesn’t match high-end products, considering price factors, this product offers good value for cost-sensitive user groups.
Mid-Range Product Case (μ=0.42-0.48) A premium brand’s mid-range product with design friction coefficient of 0.45 represents mainstream market balanced orientation:
Comprehensive performance testing demonstrates mid-range product balanced characteristics. In standard braking tests, 60km/h to stop braking distance is approximately 16.8 meters, about 9% shorter than economy products. Provides stable, reliable brake performance across various operating conditions.
Thermal stability performance significantly exceeds economy products. At 350°C high temperature, friction coefficient maintains around 0.41, with degradation controlled within 10%. This performance enables handling more diverse usage scenarios, including occasional aggressive driving.
Wear characteristic optimization reflects technological progress. Through optimized material formulation, this product’s wear rate is approximately 20% lower than economy products with similar friction coefficients, extending service life.
Noise control technology application effects are significant. Using special damping technology, brake noise reduces about 5 decibels compared to traditional products, significantly improving driving comfort.
High-Performance Product Case (μ=0.50-0.55) Professional performance brand high-end product with friction coefficient reaching 0.52, targeting performance-oriented users:
Outstanding brake performance is the high-performance product’s prominent feature. Under identical test conditions, braking distance further shortens to 15.2 meters, approximately 10% shorter than mid-range products. This performance improvement has important safety significance during emergency braking.
Extreme operating condition adaptability is high-performance products’ core advantage. Even at 400°C extremely high temperature, friction coefficient maintains above 0.48, with degradation controlled within 8%. This performance enables handling track experience and other extreme usage scenarios.
Advanced material technology applications reflect technical content. Using ceramic fibers and special friction particles provides not only excellent friction coefficients but also extremely low wear rates and dust generation.
Professional calibration refinement is very high. Specific friction coefficient calibration for different vehicle models ensures perfect matching with original vehicle braking systems, avoiding possible brake balance problems after modification.
Consumer Selection and Maintenance Guidelines
Practical Consumer Selection Guide
Selecting appropriate friction coefficient brake pads requires comprehensive consideration of multiple factors. Here are practical selection recommendations.
Systematic Needs Analysis Methods Proper needs analysis is the first step in selection:
Driving environment evaluation requires considering multiple dimensions. Urban commuting users primarily focus on low-speed braking comfort and durability, recommending friction coefficient 0.35-0.42 products; frequent highway users need attention to high-temperature stability, suitable for 0.42-0.48 products; mountain or aggressive driving users need 0.48-0.55 high-performance products.
Vehicle characteristic matching importance cannot be ignored. Light vehicles have relatively lower absolute friction coefficient requirements, emphasizing linearity and comfort more; heavy vehicles or high-performance cars need higher friction coefficients to ensure braking effectiveness.
Budget considerations and performance needs balance: High friction coefficient products typically cost more, requiring balance between performance needs and economic capacity. Excessive performance may represent unnecessary cost waste.
Brand and Certification Importance Selecting guaranteed products is safety’s foundation:
International certification authority: Choose products passing SAE, ECE R90, and other international standard certifications, ensuring basic safety performance. China’s CCC certification is also necessary quality assurance.
Brand technical strength considerations: Well-known brands typically possess stronger R&D capabilities and quality control abilities, providing better assurance in friction coefficient stability and consistency.
OEM matching reference value: Understanding vehicle manufacturer’s original friction coefficient ranges provides important selection references. OEM products undergo strict testing and validation by complete vehicle manufacturers.
Complete after-sales service system: Choose brands with comprehensive after-sales service; when problems arise, timely technical support and solutions can be obtained.
Professional Usage and Maintenance Recommendations
Proper usage and maintenance ensure long-term friction coefficient stability, extending product life.
Critical Break-In Steps New brake pad break-in is crucial for ultimate performance:
Scientific execution of progressive break-in procedures: After new brake pad installation, conduct 200-300 kilometer progressive break-in, avoiding emergency braking and continuous heavy braking during this period. Break-in braking should be gentle and progressive, allowing friction surfaces to gradually establish stable contact.
Temperature control importance: During break-in, avoid braking system overheating, providing adequate cooling time after each braking event. Overheating may cause poor transfer film formation on friction surfaces, affecting subsequent friction coefficient stability.
Break-in quality inspection methods: After break-in completion, braking should feel linear and smooth without abnormal noise or vibration. Brake disc surfaces should show uniform wear marks without localized overheating discoloration.
Daily Usage Best Practices Proper usage habits maintain friction coefficient stability:
Anticipatory braking benefits: Anticipate traffic conditions early, using progressive braking instead of emergency stops whenever possible. This not only improves safety but also reduces braking system thermal loads, maintaining friction coefficient stability.
Reasonable engine braking coordination: On downhill sections, reasonably use engine braking to reduce brake pad workload, avoiding excessive wear and performance degradation.
Active braking system cooling management: After high-intensity braking, provide adequate cooling time for braking systems. Avoid immediately parking or water contact in high-temperature states, preventing thermal expansion-contraction damage to system components.
Regular Inspection and Maintenance Systematic inspection and maintenance ensure continued reliable performance:
Friction coefficient performance evaluation methods: Regularly evaluate braking feel changes. If discovering extended braking distances, insufficient braking force, or soft braking feel, these may indicate friction coefficient degradation requiring timely inspection.
Professional wear condition detection: Regularly check brake pad thickness; consider replacement when wear reaches 2-3mm. Excessive wear not only affects safety but may also damage brake discs.
Regular brake fluid replacement: Brake fluid absorbs moisture, reducing boiling points and potentially creating bubbles at high temperatures affecting braking effectiveness. Recommend brake fluid replacement every 2 years or 40,000 kilometers.
Simultaneous brake disc condition attention: Brake disc wear, deformation, and cracking all affect friction coefficient performance. Regularly inspect brake disc condition, performing resurfacing or replacement when necessary.
Conclusion and Future Outlook
While brake pad friction coefficient μ value is just a simple physical parameter, it carries the core performance indicators of automotive braking systems. Through this comprehensive analysis, we can clearly see friction coefficient’s critical position and important role in automotive safety.
Core Value Summary of Friction Coefficients
From a technical perspective, friction coefficient serves as the key bridge connecting braking intent with braking effect. It not only determines braking force magnitude but also influences braking process controllability, stability, and consistency. Appropriate friction coefficients can provide predictable braking response across various operating conditions, building driver confidence and providing safety assurance.
From an application perspective, different driving scenarios have different friction coefficient requirements. Urban driving emphasizes comfort and environmental protection, highway driving stresses thermal stability and reliability, mountain driving requires fade resistance, and track use pursues ultimate performance. Understanding these differentiated requirements and selecting appropriate friction coefficients is key to achieving optimal braking experience.
From a safety perspective, friction coefficient stability is more important than peak performance. A product with medium friction coefficient that provides consistent performance across various conditions is often more suitable for daily use than high-end products with excellent but unstable performance. This reminds us to avoid blindly pursuing high specifications when selecting, instead focusing on comprehensive performance balance.
Future Directions of Technological Development
Friction material technology is experiencing profound transformation. New technologies like nanomaterials, smart materials, and biomimetic materials provide unprecedented possibilities for friction coefficient optimization. Future friction materials may possess adaptive capabilities, automatically adjusting friction characteristics based on operating conditions for truly intelligent braking.
Environmental requirements drive technology toward more sustainable directions. Copper-free, low-dust, low-noise environmental friction materials will become mainstream, requiring maintenance of excellent friction performance while achieving environmental goals—technically challenging but highly meaningful.
Digital and intelligent technology development will provide powerful tools for friction coefficient monitoring, prediction, and optimization. Real-time friction coefficient change monitoring, maintenance needs prediction, and material formulation optimization will become reality, greatly enhancing braking system intelligence levels.
Industry Development Challenges and Opportunities
Currently, the friction material industry faces dual challenges of technological upgrading and environmental transformation. Traditional material formulations need to maintain or even improve performance while meeting stricter environmental requirements, necessitating substantial R&D investment and technological innovation.
Simultaneously, electric vehicle rapid development brings new opportunities and challenges for the friction material industry. Electric vehicle braking characteristics differ from traditional fuel vehicles, requiring specially optimized friction coefficient characteristics. Widespread energy recovery system adoption also changes braking system operating modes, requiring friction materials with better low-frequency braking performance.
The friction coefficient μ value, though small, carries enormous significance. It bears the expectation of every safe braking event, protecting every journey’s safety. On the path pursuing higher performance, greater environmental protection, and more intelligence, friction coefficients will continue playing their irreplaceable role.
Through technical innovation, quality improvement, and proper usage, let’s work together to help this small parameter—friction coefficient—deliver greater value, contributing to building a safer, more environmentally friendly, and more intelligent automotive world. Every safe braking event represents the best interpretation of friction coefficients; every technological advance provides the best assurance for driving safety.
In future development, with continuous emergence of new materials, new processes, and new technologies, friction coefficient optimization space will become even broader. We have every reason to believe that through sustained technological innovation and unrelenting effort, friction coefficient—this ancient yet important physical parameter—will shine even brighter in the new era, providing more reliable assurance for human transportation safety.
This article’s content is for technical exchange and learning reference only. When actually selecting and using brake pads, please consult professional technicians and follow vehicle manufacturer recommendations to ensure driving safety.
If you need consultation, please contact us
