When you press the brake pedal, have you ever wondered about the complex and precise engineering hidden behind this seemingly simple action? Brake pads, these components just a few centimeters thick, carry the responsibility for the safety of entire vehicles and their occupants. In automotive braking systems, brake pads generate braking force through friction with brake rotors, and the core of this entire process lies in the perfect integration between backing plates and friction materials.
This integration is far from simple adhesion—it’s a comprehensive technology that combines materials science, mechanical engineering, chemical processes, and precision manufacturing. A qualified brake pad must maintain stable performance under extreme conditions of high temperature, high pressure, and high-speed friction, which places extremely demanding requirements on the bonding between backing plates and friction materials. From material selection to process control, from quality inspection to performance validation, every step demands excellence.
This article will take you deep into the internal world of brake pad manufacturing, revealing how backing plates and friction materials achieve perfect fusion through precision assembly processes, and exploring the essence and future development trends of modern brake pad manufacturing technology.

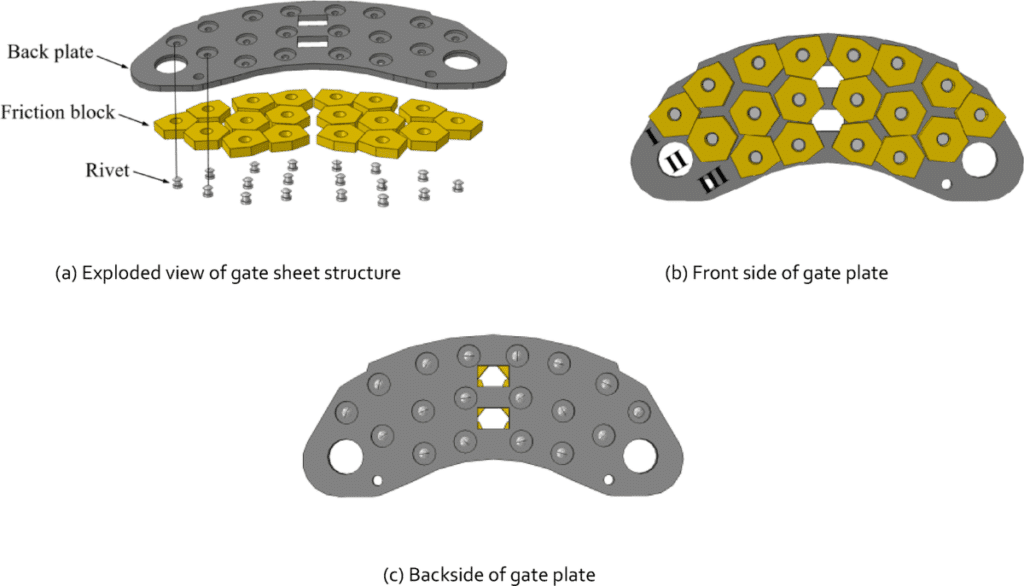

Basic Components and Working Principles of Brake Pads
Backing Plates: The Solid Framework of Brake Pads
The backing plate serves as the foundational structure of brake pads, much like the steel framework of a building, providing structural support and force transmission for the entire brake pad. During braking, when the driver presses the brake pedal, brake fluid transmits pressure through brake lines to the brake caliper, and the caliper piston pushes the brake pad—with the backing plate being the direct recipient and transmitter of this force.
Material Selection and Performance Requirements for Backing Plates
Modern brake pad backing plates are primarily manufactured from high-quality steel, typically carbon steel or low-alloy steel. These materials are carefully formulated to achieve optimal balance between strength, toughness, thermal conductivity, and cost. The chemical composition of backing plates usually includes 0.15-0.25% carbon, 0.40-0.70% manganese, 0.15-0.35% silicon, and appropriate amounts of phosphorus, sulfur, and other elements. This composition ensures good machinability and mechanical properties.
Backing plates must possess several key performance characteristics: First, sufficient mechanical strength to withstand the enormous pressure generated during braking, typically requiring the ability to handle working pressures of 15-25 MPa, and potentially reaching 40+ MPa under extreme conditions. Second, excellent thermal conductivity—the heat generated during braking must be rapidly conducted and dissipated through the backing plate to prevent friction material failure due to overheating. The thermal conductivity of backing plates typically ranges from 40-60 W/(m·K).
Additionally, backing plates require precise dimensional stability. In high-temperature working environments, the thermal expansion coefficient of the backing plate must match that of the friction material to avoid stress concentration and cracking caused by differential thermal expansion and contraction. Meanwhile, the backing plate surface must possess good corrosion resistance, maintaining stable performance over long periods in humid, salt-spray, and other harsh environments.
Manufacturing Process for Backing Plates
The manufacturing process for backing plates involves multiple precision machining steps. First is blanking and stamping, using high-precision stamping equipment to process steel plates into required shapes, with stamping accuracy typically controlled within ±0.1mm. Next comes mechanical processing, including milling, drilling, chamfering, and other operations to ensure all dimensions and geometric features meet design requirements.
After mechanical processing, backing plates undergo heat treatment. By controlling heating and cooling processes, the microstructure of the steel is adjusted, internal stresses are eliminated, and comprehensive material properties are improved. Heat-treated backing plates typically have hardness controlled between HRC 25-35, ensuring sufficient strength while maintaining good toughness.
Finally comes surface treatment, including deburring, cleaning, and rust prevention steps. The surface roughness of backing plates is typically controlled between Ra 1.6-3.2μm, ensuring good bonding with friction materials while avoiding stress concentration caused by excessive roughness.
Friction Materials: The Performance Core
Friction materials are the functional core of brake pads, directly determining braking performance, service life, and comfort. Modern friction materials are composite materials composed of multiple components with different functions, scientifically proportioned, with each component playing a specific role.
Composition and Structure of Friction Materials
Fiber reinforcement materials form the skeleton of friction materials, providing basic strength and wear resistance. Steel fibers are widely used due to their excellent thermal conductivity and mechanical strength, with diameters typically ranging from 6-50 micrometers and lengths controlled between 2-8 millimeters. These steel fibers form three-dimensional network structures within the material, effectively transmitting stress and heat. Ceramic fibers provide excellent thermal stability, maintaining structural integrity in the high-temperature environments during braking.
Fillers are key components for adjusting friction performance, typically including various metal oxides, sulfides, and carbides. Aluminum oxide and iron oxide provide moderate friction coefficients and good wear resistance, while antimony sulfide provides lubrication at high temperatures, preventing excessive wear of friction pairs. Solid lubricants like graphite and molybdenum disulfide can reduce noise and abnormal wear, improving comfort.
Binders combine various components into a cohesive whole while serving as important media connecting friction materials to backing plates. Modern friction materials primarily use phenolic resins as binders. These thermosetting resins possess excellent heat resistance, chemical stability, and mechanical strength. Resin content is typically controlled between 8-15%—too little affects material integrity, while too much reduces friction performance.
Performance Requirements for Friction Materials
Friction materials must maintain stable friction coefficients across wide temperature ranges. From room temperature to 500°C or even higher, friction coefficient variations should be controlled within ±20%. This requires materials to have excellent thermal stability, with components not undergoing significant chemical or physical changes at high temperatures.
Wear resistance is another critical indicator, directly related to brake pad service life. Quality friction materials should have wear rates controlled within 0.1-0.3 cubic centimeters per 100 kilometers under standard test conditions. Additionally, friction material wear should be uniform, avoiding performance degradation caused by localized excessive wear.
Noise control is an important consideration in modern friction material design. Through optimizing material formulation and structure, particularly adjusting filler particle size distribution and adding special noise-reduction components, brake squeal and humming can be effectively reduced. High-quality friction materials should maintain noise levels below 80 decibels under normal operating conditions.
Core Assembly Process Technologies
Surface Pretreatment: Establishing the Foundation for Bonding
Surface pretreatment is the first and most critical foundational process for ensuring strong bonding between backing plates and friction materials. The quality of this step directly affects the bonding strength and reliability of the final product.
Intensive Treatment of Backing Plate Surfaces
Backing plates must undergo strict surface pretreatment before assembly. First is mechanical cleaning, using specialized cleaning equipment to remove surface oils, oxide scale, metal chips, and other contaminants. This process typically employs ultrasonic cleaning technology, immersing backing plates in solutions containing specialized cleaning agents, using ultrasonic cavitation effects to thoroughly remove microscopic contaminants. Cleaning solution temperature is controlled at 40-60°C, with cleaning times typically 5-10 minutes.
Following mechanical cleaning is chemical treatment, a key step for improving bonding strength. The most commonly used is phosphating treatment, immersing cleaned backing plates in phosphating solution to form a phosphate conversion coating on the steel surface. This conversion coating not only provides excellent corrosion resistance but, more importantly, greatly enhances bonding with organic adhesives. Phosphating solution main components include phosphoric acid, zinc phosphate, manganese phosphate, etc., with strictly controlled concentrations and pH values typically between 2.8-3.2. Phosphating temperature is controlled at 70-85°C, with treatment times of 5-15 minutes.
Surface roughening is the final step in pretreatment, using mechanical or chemical methods to moderately increase surface roughness. Mechanical roughening typically uses sandblasting, employing quartz sand or steel shot with particle sizes of 0.3-0.8mm, uniformly blasting backing plate surfaces at pressures of 2-4 kg/cm². This process not only further cleans surfaces but also creates micrometer-level textured structures, providing anchor points for mechanical interlocking. Post-roughening surface roughness is controlled between Ra 2.5-6.3 micrometers.
Friction Material Pretreatment Processes
Friction material pretreatment is equally important, primarily aimed at ensuring material uniformity and stability. First is composition homogenization, using specialized mixing equipment to thoroughly blend various raw materials, ensuring uniform component distribution in each batch. The mixing process typically uses high-speed mixers, with mixing times of 15-30 minutes and speeds controlled at 800-1200 rpm.
Moisture control is a critical step in pretreatment. Excessive moisture affects adhesive curing effectiveness, leading to reduced bonding strength. Therefore, mixed friction materials require strict moisture control, typically using vacuum drying or hot air drying to control moisture content below 1.5%. Drying temperatures are typically between 80-120°C, with times determined by material thickness and initial moisture content.
Preheating treatment is an important step for eliminating internal material stresses. Dried friction materials are preheated in 80-100°C environments for 30-60 minutes. This process eliminates internal stresses generated during raw material mixing, improves material dimensional stability, and creates favorable conditions for subsequent hot pressing.
Adhesive Technology: The Bonding Bridge
Adhesives are the key medium connecting backing plates and friction materials, with their selection and application technology directly determining bonding firmness and durability.
High-Performance Adhesive Selection Criteria
Modern brake pads primarily use modified phenolic resins and high-temperature epoxy resins as adhesives. Modified phenolic resins possess excellent heat resistance, with glass transition temperatures typically between 180-220°C, capable of withstanding high-temperature environments during braking. These resins undergo special modification, incorporating heat-resistant plasticizers and crosslinking accelerators, improving toughness and bonding strength.
High-temperature epoxy resins excel in bonding strength, with room temperature shear strength reaching 25-35 MPa, maintaining 15-20 MPa bonding strength even at 200°C. These epoxy resins typically use polyamine curing agents, forming dense three-dimensional crosslinked network structures after curing, with excellent chemical stability and dimensional stability.
Adhesive selection must also consider compatibility with substrates. For steel backing plates, adhesives must form good chemical bonding with metal surfaces, typically achieved by adding coupling agents to adhesives. Silane coupling agents are the most common choice, capable of forming covalent bonds simultaneously with metal surface hydroxyl groups and organic resins, significantly improving bonding strength.
Precision Application Technology
Adhesive application is a process requiring high-precision control. Application thickness must be strictly controlled, typically between 0.1-0.3mm. Too thin leads to insufficient bonding strength, while too thick may cause bubbles and internal stresses during curing, affecting product quality.
Modern production lines predominantly use automated application equipment, including blade coaters, roll coaters, and spray coaters. Blade coating can precisely control application thickness, suitable for high-viscosity adhesives. The gap between blade and substrate is controlled through precision adjustment mechanisms, with accuracy reaching ±0.01mm. Application speeds are typically controlled at 10-50 m/min—too fast leads to uneven coatings, while too slow affects production efficiency.
Roll coating technology is suitable for large-area uniform application, achieving uniform adhesive distribution through controlling application roll speed and pressure. Application roll surface roughness and hardness must be selected based on adhesive properties, typically with surface roughness controlled between Ra 0.8-1.6 micrometers.
Application environment control is equally important. Temperature is typically controlled at 20-25°C, relative humidity between 45-65%. Such environmental conditions favor uniform adhesive flow and prevent premature curing. Application workshops also require dust-free environments to prevent foreign matter from affecting coating quality.
Precision Curing Process Control
Adhesive curing is a complex chemical reaction process requiring precise control of temperature, time, and environmental conditions. The curing process typically involves several stages: room temperature pre-curing, elevated temperature curing, and post-curing.
During room temperature pre-curing, adhesives begin crosslinking reactions at ambient temperature, though reaction rates are slow. This stage typically lasts 30-60 minutes, aimed at initial adhesive curing to develop certain strength, preventing flow during subsequent heating processes.
Elevated temperature curing is the main curing stage, with temperatures typically raised gradually from room temperature to 160-200°C. Heating rates are controlled at 2-5°C/minute—too rapid heating causes bubble formation within adhesives, affecting bonding quality. Temperatures are maintained at maximum levels for 30-90 minutes, ensuring complete adhesive crosslinking.
Post-curing temperatures are further increased to 200-250°C, with hold times of 1-2 hours. This stage aims to eliminate internal stresses generated during curing, improving bonding layer stability and durability. The entire curing process is conducted in protective atmospheres, typically using nitrogen or argon to prevent oxidation reactions from affecting curing effectiveness.
Hot Pressing: Critical Process Step
Hot pressing is the core step in brake pad assembly processes, achieving strong integration of backing plates and friction materials through precise control of temperature, pressure, and time.
Technical Characteristics of Hot Pressing Equipment
Modern hot pressing equipment uses hydraulic drive systems capable of providing stable pressure outputs. Pressure systems typically include main cylinders, booster cylinders, and control valve assemblies, with maximum pressures reaching 100-200 tons. Pressure control accuracy is maintained within ±1%, ensuring each product is formed under identical pressure conditions.
Heating systems are another critical component of hot pressing equipment. Modern equipment predominantly uses electric heating methods, with heating elements distributed in upper and lower platens, providing uniform temperature distribution. Temperature control accuracy is typically within ±2°C, with fast response times enabling precise tracking of set temperature curves. Some advanced equipment also features multi-zone independent temperature control systems, allowing differential temperature control for different areas.
Molds are direct tools for hot pressing formation, with their design and manufacturing quality directly affecting product quality. Mold materials typically use high-quality tool steels, heat-treated through quenching and tempering, with hardness controlled between HRC 50-60. Mold surfaces undergo precision machining and polishing, with surface roughness controlled below Ra 0.4 micrometers, ensuring product surface finish.
Molds also incorporate venting systems, expelling gases generated during curing through vent grooves at mold edges, preventing internal bubble formation in products. Vent groove widths are typically 0.3-0.8mm, depths 0.1-0.3mm, providing effective venting while preventing excessive material extrusion.
Optimization and Control of Process Parameters
Selection and control of hot pressing process parameters are key to ensuring product quality. Temperature parameters require optimization based on friction material formulation and adhesive characteristics. Generally, forming temperatures are controlled between 160-200°C, ensuring complete adhesive curing while avoiding excessive decomposition of organic components in friction materials.
Temperature curve design typically includes heating, holding, and cooling phases. Heating phase rates are controlled at 3-8°C/minute—too fast causes excessive temperature differentials between material interior and exterior, generating thermal stresses; too slow extends production cycles, affecting efficiency. Holding phase temperatures and times are determined by product thickness and material characteristics, typically at maximum forming temperatures for 15-40 minutes.
Pressure parameter selection must balance material densification against excessive material extrusion. Forming pressures are typically controlled between 15-25 MPa, with specific values determined by friction material compressibility and flowability. Pressure application typically uses graduated pressurization, initially using lower pressures (3-8 MPa) for pre-pressing to achieve initial material densification, then gradually increasing to final forming pressure.
Hold time is another important parameter, typically corresponding to curing time. Forming pressure must be maintained throughout the entire curing process, ensuring material remains dense during curing shrinkage. Hold times are typically 30-60 minutes, with specific times determined by product thickness and material formulation.
Quality Monitoring and Process Control
Modern hot pressing equipment features comprehensive quality monitoring systems capable of real-time monitoring and recording of process parameters. Temperature monitoring systems use high-precision thermocouples with measurement accuracy of ±1°C and response times under 1 second. Multi-point temperature monitoring ensures temperature consistency across mold sections.
Pressure monitoring systems employ high-precision pressure sensors capable of real-time monitoring of forming pressure changes. By analyzing pressure curves, material curing progress and potential anomalies can be assessed. For example, abnormal pressure drops might indicate excessive material extrusion or poor mold sealing; abnormal pressure increases might indicate poor material flowability or insufficient mold clearance.
Displacement monitoring is an important means of evaluating forming effectiveness. By measuring upper mold displacement changes, material compression levels and curing shrinkage can be understood. Normally, displacement curves should show initial rapid decline (material compression), gradual change in the middle phase (curing progress), and stability in the final phase (curing completion).
Modern control systems also integrate data acquisition and analysis functions, automatically recording each product’s forming parameters and establishing quality traceability files. Through Statistical Process Control (SPC) methods, process parameter variation trends are analyzed to identify and resolve potential issues promptly.
Cooling and Demolding: Precision Operations
After hot pressing completion, products require carefully controlled cooling processes before demolding. Cooling rate control significantly impacts product quality.
Technical Points of Controlled Cooling
Cooling processes must be conducted under maintained pressure conditions, typically retaining 50-80% of forming pressure to prevent product deformation or cracking during shrinkage. Cooling rates are controlled at 2-5°C/minute—too rapid cooling generates thermal stresses, while too slow affects production efficiency.
When cooling to 60-80°C, pressure reduction can begin, but slight pressure should be maintained until complete cooling to room temperature. This process typically requires 30-60 minutes, with specific times determined by product thickness and material characteristics.
Technical Requirements for Demolding Operations
Demolding is a step requiring careful operation, avoiding product damage while improving production efficiency. Modern production lines predominantly use automatic demolding devices, extracting products from molds through precisely controlled ejection forces.
Ejection force control is critical—excessive force damages products, while insufficient force may prevent complete demolding. Ejection forces are typically controlled between 5-15% of forming pressure, with specific values determined by product geometry and surface treatment conditions.
Post-demolding products require immediate visual inspection to check for cracks, missing material, deformation, and other defects. Qualified products continue to subsequent processes, while non-conforming products require cause analysis and process parameter adjustment.
Quality Control and Inspection Systems
Visual Quality Inspection
Visual inspection is the first checkpoint in brake pad quality control. Though seemingly simple, it actually requires experienced inspectors and precision inspection equipment.
Technical Standards for Visual Inspection
Visual inspection primarily examines product surface quality, dimensional accuracy, and overall integrity. Surface quality inspection includes checking for cracks, bubbles, inclusions, color variations, and other defects. Qualified brake pads should have smooth, flat surfaces with uniform coloration and no obvious irregularities.
Cracks are the most dangerous defects—even microscopic cracks may propagate during use, leading to product failure. Inspectors use magnifying glasses or microscopes to carefully examine product surfaces, particularly edges and corners. For suspicious areas, dye penetrant testing methods are used for further confirmation.
Bubble defects are primarily caused by insufficient degassing during curing. Surface bubbles not only affect appearance but also reduce friction area, impacting braking performance. Inspection standards typically specify bubbles larger than 2mm diameter as non-conforming, with bubbles 1-2mm diameter not exceeding specified quantities per unit area.
Dimensional Accuracy Measurement Methods
Dimensional accuracy inspection uses precision measuring instruments including calipers, micrometers, and height gauges. Main inspection items include length, width, thickness, hole diameter, hole spacing, and other critical dimensions.
Thickness is one of the most important dimensional parameters, directly affecting braking performance and service life. Thickness measurements are typically conducted at multiple points on products, ensuring thickness uniformity. Standards typically require thickness deviations within ±0.3mm, with thickness non-uniformity not exceeding 0.2mm.
Hole diameter and spacing accuracy significantly impact installation fit. Hole diameter measurements use inside micrometers or plug gauges, with accuracy requirements typically ±0.1mm. Hole spacing measurements use coordinate measuring machines or specialized fixtures, ensuring hole position accuracy meets requirements.
Modern Automated Inspection Technology
With technological advancement, increasing numbers of enterprises adopt automated visual inspection systems. These systems use high-resolution cameras and image processing software for rapid, accurate defect detection.
Visual inspection systems typically include illumination systems, image acquisition systems, image processing systems, and decision systems. Illumination systems provide uniform, stable light sources, eliminating shadows and reflections affecting inspection. Image acquisition systems use high-resolution industrial cameras capable of capturing product surface detail information.
Image processing software identifies various defect types through algorithms, including cracks, bubbles, stains, and color variations. Systems establish defect databases, continuously improving recognition accuracy through machine learning. Inspection speeds can typically reach dozens of pieces per minute, greatly improving inspection efficiency.
Bonding Strength Testing
Bonding strength is the most important indicator for evaluating backing plate and friction material bonding quality, directly related to product safety and reliability.
Shear Strength Testing Methods
Shear strength testing is the most commonly used bonding strength evaluation method. Tests are conducted according to relevant standards using specialized shear testing machines to test sample shear failure loads under specified conditions.
Test samples are typically cut from finished products, with dimensions of 25mm×25mm, ensuring test result representativeness. Samples require pretreatment before testing, removing surface contaminants to ensure good fixture-to-sample contact.
During testing, loading rates are controlled at 5-10 mm/minute, recording maximum failure loads. Shear strength calculation formula: τ = F/A, where τ is shear strength (MPa), F is maximum failure load (N), and A is shear area (mm²).
Qualified brake pads typically require shear strengths between 6-12 MPa, with specific values determined by material type and application requirements. Test result coefficients of variation should be less than 15%, indicating stable production processes.
Thermal Cycling Testing
Thermal cycling tests simulate temperature changes products experience during actual use, evaluating bonding layer thermal stability. Tests typically follow these procedures: maintain samples at -40°C for 2 hours, then transfer to 200°C environment for 2 hours, completing one cycle.
Tests typically conduct 50-100 cycles, then detect sample shear strength changes. Qualified products should have shear strength degradation less than 20%, with no delamination or cracking phenomena.
Thermal cycling tests also require observing sample appearance changes, including color, surface condition, and dimensional stability. Post-test samples should maintain good appearance with no obvious discoloration, cracking, or deformation. This testing effectively evaluates product reliability under temperature variation environments.
Fatigue Strength Testing
Fatigue testing evaluates bonding layer durability under repeated loading. Tests use fatigue testing machines applying cyclic shear loads to samples. Load magnitudes are typically set at 40-60% of static shear strength, with frequencies of 10-50 Hz.
Testing continues until sample failure or reaching predetermined cycle numbers (typically 10⁶-10⁷ times). Qualified products should withstand at least 10⁶ load cycles without failure. Fatigue test results are represented by S-N curves, providing important data for product design and application.
During fatigue testing, sample temperature changes must also be monitored—excessive temperatures may indicate bonding layer defects. Temperature monitoring uses infrared thermal imaging cameras or thermocouples, ensuring test condition accuracy.
Performance Testing Systems
Final performance testing of brake pads is a critical step verifying products meet application requirements, including friction performance, wear performance, noise performance, and multiple other aspects.
Friction Coefficient Testing
Friction coefficient is the most important performance indicator for brake pads, directly determining braking effectiveness. Testing is typically conducted on dynamometer test rigs simulating actual braking conditions.
Test equipment includes inertia dynamometers or constant-speed dynamometers capable of precisely controlling speed, load, and temperature parameters. Test discs typically use standard gray cast iron materials with strict hardness and roughness requirements. Pre-testing requires backing plate and test disc pretreatment, including cleaning and pre-bedding procedures.
Friction coefficient testing follows international standards, typically including cold friction coefficient, warm friction coefficient, and high-temperature friction coefficient testing. Cold testing is conducted below 100°C, testing room-temperature braking performance; warm testing is conducted in 100-300°C ranges, evaluating normal operating temperature performance; high-temperature testing is conducted at 300-500°C, evaluating extreme condition performance.
During testing, friction and normal forces are recorded to calculate friction coefficient μ = F_f/F_N. Qualified brake pads typically have friction coefficients between 0.35-0.55, with variations within ±20% across testing temperature ranges.
Wear Rate Testing
Wear rate testing evaluates brake pad service life, typically conducted simultaneously with friction coefficient testing. During testing, brake pad thickness changes are measured periodically to calculate wear amounts per unit braking energy.
Wear rate calculation formula: W = ΔV/(E×A), where W is wear rate (mm³/MJ), ΔV is wear volume (mm³), E is braking energy (MJ), and A is friction area (mm²).
Quality brake pads typically have wear rates controlled between 100-300 mm³/MJ, with specific values determined by material type and application requirements. Wear should be uniform, avoiding localized excessive wear.
Wear testing also requires observing wear morphology, using microscopes or scanning electron microscopes to analyze wear mechanisms. Normal wear should exhibit uniform abrasive wear, avoiding adhesive wear, fatigue wear, and other abnormal forms.
Noise Testing
Noise significantly impacts user experience, and modern brake pads all require good noise performance. Noise testing is typically conducted in specialized anechoic chambers using precision sound level meters.
Test conditions include different combinations of speed, pressure, and temperature, comprehensively evaluating noise levels under various operating conditions. Testing frequency ranges typically cover 20Hz-20kHz, encompassing all frequencies detectable by human ears.
Noise test results are expressed as sound pressure levels (dB) and frequency spectra. Qualified products should have noise levels below 80dB under normal operating conditions, with no obvious sharp noises. Noise in special frequency bands (such as 1-10kHz) requires particularly strict control, as noise in these frequencies is most easily detected by human ears.
Dynamometer Durability Testing
Dynamometer durability testing simulates entire product service life, verifying long-term reliability. Testing typically follows standard braking cycles including different intensity braking conditions.
Test procedures include light braking, medium braking, heavy braking, and other stages, each with specified braking frequencies and intensities. Entire tests typically require thousands of braking cycles, with total distances equivalent to actual vehicle travel of 100,000-200,000 kilometers.
During testing, product performance changes are monitored periodically, including friction coefficient, wear amount, and appearance condition. Upon test completion, products should still meet performance requirements with no structural damage.
Advanced Assembly Technology Innovations
Engineering Applications of Mechanical Bonding Technology
While traditional chemical bonding is widely used, it may have limitations under extreme operating conditions. Mechanical bonding technology, as a supplement or alternative, is receiving increasing attention and application.
Design Principles of Slot-Hole Bonding Technology
Slot-hole bonding technology machines specific-shaped slots and holes in backing plate surfaces, allowing friction materials to flow into these openings during hot pressing, forming mechanical interlocking structures. This bonding method doesn’t rely on chemical bonding of adhesives but achieves strong connections through pure mechanical interlocking.
Slot design must consider multiple factors: depth typically 30-50% of backing plate thickness, ensuring sufficient interlocking strength without affecting overall backing plate strength; width designed at 2-5mm—too narrow affects material flow, too wide may create stress concentrations; shapes commonly use dovetail or T-slots to enhance interlocking effectiveness.
Slot distribution is also critical, typically using uniform or radial distribution to ensure even stress distribution. Slot area occupies 15-25% of total backing plate area—too much affects backing plate strength, too little provides insufficient interlocking.
Machining slots requires precision mechanical processing equipment like CNC milling machines or laser cutting machines. Processing accuracy requirements are high, with surface roughness controlled below Ra 3.2, ensuring good bonding with friction materials.
Technical Characteristics of Toothed Bonding
Toothed bonding is another mechanical bonding method, processing backing plate surfaces into toothed or wavy shapes to increase bonding area and interlocking force. This method has relatively simple processing but equally excellent bonding effectiveness.
Tooth designs typically use sinusoidal or triangular wave shapes, with wave heights controlled between 0.5-2mm and wavelengths of 5-15mm. Wave parameter selection must consider friction material flowability and forming pressure, ensuring materials can adequately fill toothed structures.
Tooth processing can use roll forming or milling—roll forming has high efficiency suitable for high-volume production; milling has high precision suitable for high-accuracy requirement products. Toothed surfaces typically receive additional treatment like phosphating or sandblasting to further improve bonding force.
Combination Bonding Technology
In some high-end applications, mechanical and chemical bonding are used simultaneously, forming composite bonding structures. This method combines advantages of both technologies, providing both chemical bond sealing and mechanical interlocking reliability.
Combination bonding process flows are somewhat complex: first machine slots or teeth in backing plates, then conduct surface pretreatment and adhesive application, finally achieve both mechanical interlocking and chemical bonding through hot pressing.
This bonding method typically improves shear strength by 30-50% over single bonding methods, particularly excelling in high-temperature and vibration environments. However, process complexity and costs increase correspondingly, primarily used for high-end products.
Technical Innovations in Composite Bonding Processes
Preforming Technology
Preforming technology is a new process developed in recent years, pre-pressing friction materials into semi-finished products before secondary bonding with backing plates. This method better controls friction material density distribution and component uniformity.
Preforming processes use specialized preforming machines, pressing mixed materials into preliminary shapes under lower pressure (5-10 MPa) and temperature (100-120°C). Preforms have certain strength for easy handling and subsequent processing while maintaining good plasticity.
Bonding with backing plates uses improved hot pressing processes. Since friction materials are already preformed, forming pressure can be appropriately reduced, better preserving material internal structure. This process is particularly suitable for producing large thickness or complex-shaped brake pads.
Layered Composite Technology
Layered composite technology designs friction materials as multi-layer structures, using different formulations for different layers to optimize overall performance. Surface layers use high-friction coefficient materials providing good braking effectiveness; middle layers use materials with good thermal conductivity improving heat dissipation; bottom layers use materials with good adhesive compatibility improving bonding strength.
Layer material thickness ratios are optimized through design, typically with surface layers occupying 30-40%, middle layers 40-50%, and bottom layers 10-20%. Different adhesives or transition layers can be used between layers ensuring good bonding.
Layered composite processes require precise control of layer material distribution, typically using multi-hopper systems with separate material feeding for each layer. Forming processes require special attention to inter-layer bonding, with temperature and pressure curves optimized for multi-layer structures.
Gradient Material Technology
Gradient material technology is further development of layered composites, achieving smooth performance transitions through continuous material composition changes. This technology eliminates layered interfaces, avoiding inter-layer stress concentration problems.
Gradient changes can be compositional gradients, density gradients, or performance gradients. Compositional gradients are achieved by changing component contents; density gradients are achieved by controlling porosity; performance gradients are comprehensive results of the former two.
Manufacturing gradient materials requires precision batching and forming equipment, currently primarily used for high-end product development. As technology matures and costs decrease, broader field applications are expected.
Technical Features of Automated Production Lines
Modern brake pad production is developing toward full automation. Automated production lines not only improve production efficiency but more importantly ensure product quality stability and consistency.
Intelligent Batching Systems
Automatic batching systems are core components of modern production lines, responsible for precisely controlling various raw material ratios. Systems typically include raw material storage, metering conveyance, and mixing subsystems.
Raw material storage systems use sealed silos with separate storage for each raw material preventing cross-contamination. Silos feature level sensors and temperature/humidity control systems ensuring raw material storage conditions meet requirements. Silo bottoms incorporate special discharge mechanisms ensuring first-in-first-out, avoiding raw material aging.
Metering systems ensure batching accuracy, typically using loss-in-weight feeders with ±0.1% accuracy. Each raw material has independent metering channels controlled by PLC systems. Systems also feature automatic calibration functions with periodic accuracy verification.
Mixing systems use high-efficiency mixing equipment like twin-ribbon mixers or plow mixers ensuring thorough raw material mixing. Mixing time, speed, and other parameters are precisely controlled through automatic control systems, ensuring each batch material consistency.
Robotic Adhesive Application Systems
Adhesive application is a critical step in bonding processes. Robotic adhesive application systems achieve high-precision, high-consistency adhesive application operations. Systems typically include six-axis industrial robots, precision application heads, adhesive supply systems, and vision systems.
Robots have high-precision position control capabilities with repeatability reaching ±0.1mm. Application paths are set through offline programming or teach programming, adaptable to various complex-shaped products. Robots also feature force control functions, adjusting application pressure based on surface shapes.
Application heads use precision designs capable of precisely controlling adhesive amounts and application widths. Common types include screw-type and piston-type application heads—the former suitable for continuous application, the latter for intermittent application. Application heads also feature cleaning systems with periodic automatic cleaning preventing clogging.
Adhesive supply systems maintain stable adhesive pressure and temperature, typically using gear pumps or plunger pumps for adhesive delivery. Systems feature filters and defoaming devices ensuring adhesive quality. Temperature control systems maintain adhesives at appropriate temperatures ensuring flowability.
Vision systems are used for product positioning and quality inspection. High-resolution cameras identify product positions and orientations, guiding robots for precise adhesive application. After application completion, vision systems also inspect application quality including bead width and continuity.
Smart Hot Presses
Smart hot presses are key equipment in modern production lines, integrating advanced control systems and sensor technology to achieve precise control and real-time monitoring of process parameters.
Temperature control systems use multi-zone independent control, with each zone having independent heating elements and temperature sensors. Control systems use PID algorithms capable of rapid response to temperature changes, with control accuracy reaching ±1°C. Systems also feature temperature curve tracking functions, precisely controlling temperature changes according to preset curves.
Pressure control systems use proportional hydraulic valves for precise forming pressure control, with pressure control accuracy reaching ±1%. Systems also feature pressure curve control functions, implementing complex pressurization programs. Pressure sensors provide real-time pressure change monitoring, supplying data for process optimization.
Displacement monitoring systems use high-precision displacement sensors to monitor upper mold displacement changes, with accuracy reaching 0.01mm. Through displacement curve analysis, material compression characteristics and curing progress can be understood, providing important information for process control.
Data acquisition systems record each product’s forming parameters, establishing product files. Systems also feature statistical analysis functions, analyzing process parameter variation trends and identifying anomalies promptly.
Online Inspection Systems
Online inspection systems achieve real-time product quality monitoring, promptly detecting and rejecting non-conforming products. Systems typically include dimensional inspection, visual inspection, and performance inspection modules.
Dimensional inspection uses laser ranging or machine vision technology for rapid measurement of critical product dimensions. Laser ranging offers high accuracy suitable for single dimension measurement; machine vision provides fast measurement suitable for simultaneous multi-dimensional measurement. Inspection results are compared with standard values, with products exceeding tolerance ranges automatically rejected.
Visual inspection uses high-resolution industrial cameras and image processing algorithms to detect product surface defects. Illumination systems provide uniform lighting, eliminating shadow effects. Image processing algorithms can identify various defect types including cracks, bubbles, and stains, with continuously improving detection accuracy.
Performance inspection primarily targets key performance indicators like hardness and density. Hardness inspection uses automatic hardness testers for rapid product hardness measurement. Density inspection uses Archimedes principle or X-ray density meters ensuring product density meets requirements.
Inspection systems network with production control systems, providing real-time feedback of inspection results to production systems. When anomalies are detected, systems automatically adjust process parameters or halt production for inspection, ensuring product quality.
Comprehensive Problem Analysis and Solutions
In brake pad assembly processes, even with advanced technology and strict controls, various quality issues may still occur. Deep analysis of these problems’ root causes and developing effective solutions are important aspects of ensuring product quality.
Comprehensive Analysis of Delamination Problems
Delamination is one of the most serious brake pad quality issues, referring to bonding failure between backing plates and friction materials, causing separation. This problem not only affects product performance but may create serious safety hazards.
Deep Cause Analysis
Insufficient surface pretreatment is a primary cause of delamination. Surface oils, oxide layers, or other contaminants on backing plates prevent adhesive bonding with metal surfaces, forming weak interfaces. Even trace contamination can become delamination initiation points, gradually expanding during use.
Poor phosphating treatment quality is another common cause. Uneven phosphating layer thickness, incomplete crystallization, or chemical composition deviation from standards all affect bonding strength. Minor variations in phosphating solution pH, temperature, and processing time can cause phosphating quality fluctuations.
Improper adhesive selection or formulation errors are other important factors. Different friction material types require matching adhesives—incorrect selection leads to poor compatibility and low bonding strength. Adhesive storage conditions are also important; expired or moisture-damaged adhesives significantly reduce performance.
Inaccurate process parameter control is often overlooked but significantly impactful. Insufficient hot pressing temperature leads to incomplete adhesive curing; excessive temperature may cause adhesive degradation or excessive volatile loss from friction material organic components. Insufficient pressure causes poor contact; excessive pressure may squeeze out too much adhesive.
Systematic Solutions
Establishing comprehensive surface pretreatment process specifications is fundamental to solving delamination problems. Develop detailed cleaning procedures including degreasing, acid washing, and phosphating steps, with clear process parameters and quality standards for each step. Regularly test phosphating solution chemical composition and pH values, with timely supplementation and adjustment.
Implement comprehensive raw material quality control systems. Establish adhesive incoming inspection standards including chemical composition, viscosity, and curing characteristics. Establish adhesive storage and usage specifications, strictly controlling storage environments and service life. Regularly retest inventory adhesives.
Optimize process parameters and establish process control systems. Determine optimal temperature, pressure, and time parameter combinations through testing, establishing process parameter databases. Install real-time monitoring systems continuously monitoring key process parameters, with timely alerts and adjustments when parameters deviate from standards.
Establish rapid bonding strength detection methods. Develop field-operable bonding strength detection equipment for batch product sampling inspection. Establish detection data files, analyzing relationships between bonding strength and process parameters for continuous process optimization.
Technical Solutions for Dimensional Accuracy Problems
While dimensional accuracy problems aren’t as dangerous as delamination, they affect product installation fit and performance, and are frequently encountered production issues.
Deep Problem Analysis
Mold design and manufacturing accuracy are fundamental factors affecting dimensional accuracy. Mold design dimensions must consider material shrinkage rates, which are influenced by material formulation, forming conditions, and other factors. Insufficient mold manufacturing accuracy directly leads to product dimensional deviations.
Changes in material shrinkage characteristics are another important factor. Different raw material batches may have different shrinkage characteristics, producing different shrinkage amounts even under identical forming conditions. Temperature, humidity, and other environmental condition changes also affect material shrinkage behavior.
Hot pressing process stability directly affects product dimensions. Non-uniform temperatures cause inconsistent shrinkage in different areas; uneven pressure distribution causes density differences, affecting shrinkage amounts. Insufficient curing time may cause subsequent shrinkage; excessive time may cause over-shrinkage.
Mold wear is an unavoidable long-term production issue. Wear of critical mold dimensions gradually changes product dimensions, with these changes often gradual and difficult to detect promptly. Changes in mold surface roughness also affect product surface quality and dimensional accuracy.
Comprehensive Solution Strategies
Establish precision mold design and manufacturing systems. Use CAD/CAM systems for precise design, fully considering material shrinkage, mold wear, processing tolerances, and other factors. Select high-quality mold materials using advanced processing techniques ensuring mold accuracy. Establish mold files recording each mold set’s usage and maintenance records.
Implement systematic material shrinkage characteristic studies. Establish material shrinkage databases recording shrinkage characteristics of different formulations and batches. Develop rapid shrinkage rate determination methods, testing each material batch. Adjust mold dimensions or process parameters based on measured shrinkage rates.
Strengthen precision process control. Install high-precision temperature control systems ensuring uniform mold temperatures. Use advanced pressure control systems ensuring even pressure distribution. Establish mathematical models relating process parameters to product dimensions, enabling intelligent parameter adjustment.
Establish comprehensive mold maintenance and management systems. Develop mold inspection and maintenance schedules, regularly measuring critical mold dimensions. Promptly repair or replace when wear exceeds standards. Establish mold usage records tracking mold condition changes.
Implement Statistical Process Control (SPC). Collect product dimensional data, establish control charts monitoring production process stability. When dimensional trend changes are detected, promptly analyze causes and implement corrective measures. Establish dimensional data files providing foundations for process improvement.
Systematic Management of Performance Consistency Issues
Product performance consistency is an important issue in mass production—even when average performance meets standards, poor consistency affects product quality and user experience.
Root Cause Analysis of Poor Consistency
Raw material quality fluctuations are primary factors affecting consistency. Different material batches may differ in chemical composition, physical properties, and particle size distribution, with these differences transferred to final products. Supplier production process changes and raw material source changes can cause material quality fluctuations.
Insufficient batching accuracy directly affects product consistency. Batching system accuracy, stability, and operator skill levels all influence batching accuracy. Insufficient mixing leads to uneven component distribution—even with correct overall ratios, local deviations may exist.
Minor process parameter fluctuations are amplified in mass production. Temperature control accuracy, pressure stability, time control accuracy all affect product consistency. Equipment condition changes and environmental condition fluctuations can cause process parameter deviations from standards.
Insufficient operation standardization is also an important factor. Different shifts and operators’ operational habit differences affect product consistency. Poor execution of standard operating procedures and weak quality consciousness can cause consistency issues.
Comprehensive Consistency Improvement Measures
Establish supplier quality management systems. Develop detailed raw material technical specifications including chemical composition, physical properties, and testing methods. Implement supplier auditing and evaluation systems, regularly assessing supplier quality levels. Establish raw material incoming inspection and batch management systems, strictly prohibiting substandard materials from warehousing.
Upgrade batching and mixing systems. Use high-precision automatic batching systems reducing manual batching errors. Install online monitoring systems for real-time batching process monitoring. Upgrade mixing equipment ensuring mixing effectiveness. Establish rapid mixing effectiveness detection methods.
Implement precision process control. Install high-precision control systems improving process parameter control accuracy. Establish real-time monitoring and recording systems for critical process parameters. Implement preventive maintenance maintaining optimal equipment conditions. Establish environmental condition control systems reducing external factor influences.
Strengthen personnel training and standardized management. Develop detailed standard operating procedures clearly specifying requirements for each operational step. Strengthen operator training improving skill levels and quality consciousness. Establish operational records and traceability systems with individual accountability. Implement performance evaluation systems linking to product quality.
Implement Total Quality Management (TQM). Establish comprehensive quality management systems controlling entire processes from raw materials to finished products. Implement continuous improvement systems regularly analyzing quality data and identifying improvement opportunities. Establish quality culture making every employee a quality guardian.
Future Development Trends and Technology Prospects
Brake pad assembly processes are experiencing profound technological transformation. Continuous emergence of new materials, processes, and equipment brings new opportunities and challenges for industry development.
Breakthrough Progress in New Material Technologies
Engineering Applications of Nanomaterials
Nanotechnology applications in brake pad manufacturing are transitioning from laboratories to industrialization. Nanoparticles, with their enormous specific surface areas and unique surface effects, can significantly improve material performance.
Adding nano-silica improves friction material mechanical strength and thermal stability. Nano-SiO₂ particles typically have diameters of 10-50 nanometers with enormous specific surface areas (200-400 m²/g), forming strong interfacial interactions with matrix materials. In friction materials, nano-silica not only provides reinforcement but also improves material wear characteristics, reducing wear rates by 20-40%.
Carbon nanotubes, as next-generation reinforcement materials, exhibit excellent mechanical and thermal properties. Single-wall carbon nanotubes have Young’s moduli exceeding 1 TPa and tensile strengths over 100 GPa—more than 100 times stronger than steel. Adding small amounts of carbon nanotubes (0.5-2%) to friction materials significantly improves material strength and toughness while enhancing thermal conductivity.
Nano-ceramic powders like nano-alumina and nano-silicon carbide possess extremely high hardness and wear resistance. These materials maintain stable crystal structures at high temperatures, providing excellent high-temperature performance for friction materials. Adding nano-ceramics also enables more precise friction coefficient control, achieving more accurate performance control.
Nanomaterial dispersion technology is key to applications. Since nanoparticles easily agglomerate, special dispersion processes must be used. Ultrasonic dispersion, high-shear dispersion, and ball milling dispersion technologies are widely employed. Surface modification techniques graft functional groups onto nanoparticle surfaces, improving compatibility with matrix materials.
Green Revolution of Bio-based Materials
Increasingly stringent environmental requirements drive bio-based material applications in brake pad manufacturing. These materials derive from renewable resources, have environmentally friendly production processes, and are biodegradable after use, representing important future material development directions.
Plant fibers like flax, jute, and sisal fibers are replacing traditional asbestos fibers and some synthetic fibers. These natural fibers possess good mechanical properties and friction characteristics while being completely biodegradable. Fiber pretreatment techniques like alkali treatment and silane coupling agent treatment improve fiber-matrix bonding.
Bio-based adhesives are another important development direction. Adhesives prepared from lignin, cellulose, chitosan, and other raw materials are not only environmentally friendly and non-toxic but also possess excellent adhesive properties. Lignin-based adhesives even exceed traditional phenolic resins in heat resistance, performing excellently in high-temperature applications.
Biochar, as a novel filler, possesses unique porous structures and surface chemical properties. Biochar can be prepared through agricultural and forestry waste pyrolysis, solving waste disposal issues while providing high-performance friction material components. Biochar from different raw materials and preparation conditions offers different performance characteristics, providing more choices for material design.
Bio-based material challenges include performance stability and cost control. Natural material performance fluctuations are typically larger than synthetic materials, requiring improvement through modification and compounding. Production scale expansion and process technology advancement are gradually reducing costs, making bio-based materials more market competitive.
Frontier Exploration of Smart Materials
Smart materials can sense environmental changes and respond accordingly, providing possibilities for brake pad performance self-adaptive adjustment. Research and application of shape memory alloys, piezoelectric materials, and thermosensitive materials are emerging.
Shape memory alloy fibers can change shape and properties according to temperature variations. At normal temperatures, these fibers provide basic reinforcement; when temperatures rise to set thresholds, fiber shapes change, increasing material porosity and improving heat dissipation. This self-adaptive characteristic effectively prevents brake fade.
Piezoelectric ceramic fibers can convert mechanical energy to electrical energy or electrical energy to mechanical vibration. During friction processes, electric fields generated by piezoelectric fibers may influence friction interface conditions, adjusting friction coefficients. In reverse applications, external electric field control of fiber vibration may achieve active vibration damping and noise reduction.
Thermochromic materials can change colors according to temperature variations, providing intuitive visual indication for brake pad condition monitoring. When brake pad temperatures become excessive, material colors change, alerting drivers to braking system conditions. This material application requires considering stability in friction environments.
Phase change materials (PCM) possess characteristics of absorbing or releasing large amounts of latent heat within specific temperature ranges. Dispersing microencapsulated phase change materials in friction materials can absorb heat during braking processes, reducing temperature peaks and improving thermal stability. Phase change material selection must match brake pad operating temperature ranges.
Deep Integration of Smart Manufacturing Technologies
Comprehensive Construction of Digital Factories
Digital factories represent future manufacturing industry development directions, achieving comprehensive production process optimization and intelligent control through digital technologies. In brake pad manufacturing fields, digital factory construction is accelerating.
Digital design is the starting point of digital factories. Using CAD/CAE software for product design and process simulation can predict product performance and optimize process parameters before production. Finite element analysis can simulate temperature distribution, stress distribution, and material flow during hot pressing processes, guiding mold design and process optimization.
Digital production planning systems (MES) achieve refined production process management. Systems can automatically develop production plans based on order requirements, optimize resource allocation, and monitor production progress. Each product has a unique digital identity with full production process and quality information traceability.
Digital quality management systems integrate various detection equipment and sensors, achieving automatic quality data collection and real-time analysis. Systems can automatically identify quality anomalies, trace problem sources, and propose improvement suggestions. Quality data accumulation supports process optimization and new product development.
Digital maintenance systems achieve predictive equipment maintenance through equipment condition monitoring and data analysis. Vibration sensors, temperature sensors, and oil analysis technologies can promptly detect equipment anomalies, conducting maintenance before failures occur, reducing downtime and improving equipment efficiency.
Deep Applications of Artificial Intelligence
Artificial intelligence technology applications in brake pad manufacturing are transitioning from point breakthroughs to system integration, providing powerful support for production process intelligence.
Machine learning algorithms play important roles in process optimization. By analyzing large amounts of production data, machine learning models can discover complex relationships between process parameters and product quality, optimizing parameter settings. Deep learning networks can process multi-dimensional, non-linear data relationships, achieving more accurate prediction and control.
Computer vision technology is widely applied in quality inspection. Deep learning image recognition algorithms can detect various complex surface defects with recognition accuracy exceeding 95%. Image segmentation technology can precisely measure product dimensions with micrometer-level measurement accuracy. Three-dimensional vision technology can inspect product three-dimensional shapes and surface quality.
Natural language processing technology is used for quality analysis and knowledge management. Systems can automatically analyze quality reports, customer feedback, and other text information, extracting key issues and improvement suggestions. Knowledge graph technology systematizes scattered experiential knowledge, providing intelligent support for problem diagnosis and process optimization.
Reinforcement learning algorithms show enormous potential in production scheduling and parameter optimization. Algorithms can learn optimal strategies in complex production environments, achieving simultaneous production efficiency and quality improvements. Multi-agent systems can coordinate multiple equipment collaborative work, achieving global optimization.
Technological Innovation in Predictive Maintenance
Predictive maintenance technology achieves early equipment failure warning and precise maintenance through advanced sensor technology and data analysis methods, significantly improving equipment reliability and production efficiency.
Vibration monitoring technology is one of predictive maintenance’s core technologies. High-precision accelerometers can detect minute vibration changes during equipment operation, identifying bearing wear, imbalance, and looseness fault symptoms through spectral analysis. Machine learning algorithms can extract fault features from complex vibration signals, achieving early fault identification.
Infrared thermal imaging technology monitors equipment thermal conditions. Thermal imagers can detect equipment surface temperature distributions, identifying hot spots and abnormal temperature rises. For electrical equipment, thermal imaging can discover poor connections and insulation aging. Thermal imaging data time series analysis can track equipment thermal condition change trends.
Oil analysis technology evaluates equipment internal conditions by analyzing equipment lubricating oil physicochemical properties. Spectral analysis can detect metal element content in oil, reflecting component wear levels. Particle counting analysis can evaluate oil cleanliness and filtration system effectiveness. Online oil monitoring systems can track oil condition changes in real-time.
Acoustic monitoring technology uses equipment operation-generated sound signals to identify faults. Ultrasonic testing can discover gas leaks and arc discharges. Voice print recognition technology can extract equipment characteristic sounds from complex acoustic environments, identifying abnormal sounds.
Internet of Things technology connects various sensors into networks, achieving comprehensive equipment condition monitoring. Edge computing technology conducts data preprocessing at equipment sites, reducing data transmission volumes and improving response speeds. Cloud computing platforms provide powerful data processing and analysis capabilities, supporting complex predictive model operation.
Sustainable Development of Green Manufacturing
Low-Carbon Production Process Innovation
Addressing climate change and achieving carbon neutrality goals drives green transformation of brake pad manufacturing processes. Low-carbon production processes not only benefit environmental protection but also reduce production costs and improve enterprise competitiveness.
Energy efficiency improvement is key to low-carbon production. Traditional hot pressing processes have high energy consumption; significant energy reduction can be achieved through process optimization and equipment upgrades. Rapid heating technologies like induction heating and microwave heating can shorten heating times and reduce heat losses. Intelligent temperature control systems can precisely control heating processes, avoiding overheating.
Waste heat recovery and utilization technology recovers waste heat generated during production processes. Heat exchangers can recover heat discharged from hot presses for raw material preheating or space heating. Heat pump technology can upgrade low-temperature waste heat to high-temperature heat sources, improving energy utilization efficiency.
Process integration reduces inter-process energy consumption. Continuous production processes reduce intermediate storage and repeated heating, improving overall efficiency. Modular design enables equipment flexible configuration according to production requirements, avoiding idle operation.
Clean energy use is an important pathway to achieving low-carbon production. Solar, wind, and other renewable energy applications in manufacturing facilities are increasingly widespread. Distributed energy systems can provide local power supply, reducing transmission losses. Energy storage technology solves renewable energy intermittency issues, improving energy utilization rates.
Circular Economy Practice Exploration
Circular economy concept applications in brake pad manufacturing achieve maximum resource utilization and minimum waste generation, constructing sustainable development industrial ecosystems.
Raw material recycling is an important circular economy aspect. After waste brake pad recovery and processing, metals and partial organic materials can be recovered. Steel backing plates can be reused after cleaning and reprocessing. Metal fibers and ceramic particles in friction materials can also be separated and recovered.
Production waste resource utilization reduces waste generation. Edge materials and non-conforming products generated during production can be reused as raw materials after processing. Crushing technology can break waste into appropriate particle sizes; classification technology can separate different components by particle size and density.
By-product comprehensive utilization improves resource utilization rates. Organic compounds volatilized during hot pressing can be recovered for fuel or chemical raw materials. Dust collected by dust removal systems can be partially reused after treatment.
Industrial chain collaboration is an advanced form of circular economy. Establishing cooperative relationships with upstream and downstream enterprises achieves waste exchange utilization. Waste steel from automotive manufacturing enterprises can be used as brake pad backing plate raw materials; brake pad enterprise waste can be supplied to other enterprises.
Packaging material reduction and recycling are also important aspects. Reusable packaging boxes and pallets reduce packaging waste. Biodegradable packaging materials reduce environmental pollution. Optimized packaging design reduces packaging material usage.
Clean Production Technology Promotion
Clean production technology reduces pollutant generation from sources, achieving environmentally friendly production processes as important components of green manufacturing.
Solvent-free process technology eliminates organic solvent use, avoiding VOC emissions. Water-based adhesives, powder adhesives, and solvent-free liquid adhesives have partially replaced traditional solvent-based adhesives in some applications. Reactive adhesives produce no volatiles during use, achieving zero emissions.
Low-temperature curing technology reduces production energy consumption and emissions. Ultraviolet curing and electron beam curing technologies can achieve rapid adhesive curing at room temperature or lower temperatures. Catalyst technology can reduce chemical reaction activation energy, achieving complete reactions under low-temperature conditions.
Closed production processes reduce dust and gas diffusion. Negative pressure operation systems ensure pollutants don’t leak to environments. Pneumatic conveying systems reduce dust flying. Sealed mixing equipment prevents raw material spillage during mixing processes.
Exhaust treatment technology ensures emissions meet standards. Bag filters and electrostatic precipitators can efficiently remove particulate matter. Activated carbon adsorption and catalytic combustion technologies can treat organic waste gases. Desulfurization and denitrification technologies can treat sulfur and nitrogen-containing waste gases.
Water treatment technology achieves wastewater standard discharge and reuse. Coagulation sedimentation technology can remove suspended solids and partial dissolved substances. Biological treatment technology can degrade organic pollutants. Membrane separation technology can achieve deep water quality purification. Reclaimed water reuse systems can reuse treated wastewater in production.
Industry Standards and Regulatory Development Trends
Standards and regulations in the brake pad manufacturing industry are continuously improving and becoming stricter, establishing higher standards for product quality, safety performance, and environmental requirements, driving technological advancement and standardized development across the entire industry.
Evolution and Trends of International Standards
Leading Role of European Union Regulations
As an important global automotive industry market, European Union regulations often have worldwide influence. EU brake pad regulations focus not only on product performance but increasingly emphasize environmental protection and health safety.
ECE R90 regulation is the EU’s core braking system regulation, establishing strict requirements for brake pad friction performance, durability, and noise. Regulations require brake pads to pass complete dynamometer and road testing, ensuring safety and reliability under various operating conditions. Regulations also detail production consistency control requirements, ensuring mass-produced product quality stability.
REACH regulation strictly restricts chemical substance use in brake pads. Regulations prohibit or restrict certain hazardous chemical substances, requiring enterprises to register and evaluate chemical components in products. This drives green development of brake pad materials, promoting environmentally friendly substitute material research and application.
RoHS directive restricts hazardous substance use in electrical and electronic equipment. While primarily targeting electronic products, it affects certain electronic components in brake pads. Directive updates continuously expand restricted substance ranges, driving green transformation across entire industrial chains.
Technical Characteristics of American Standards
American brake pad standards, represented by FMVSS 135, focus primarily on product safety performance and reliability. Standards establish quantified requirements for key performance indicators including braking effectiveness, thermal fade, and stopping distance.
SAE standard systems provide detailed technical specifications for brake pad materials, test methods, and performance evaluation. SAE J2430 standard specifies friction material classification and marking methods, facilitating user selection of appropriate products. SAE J2522 standard specifies braking noise evaluation methods, promoting low-noise product development.
American standards also particularly focus on new technology applications and validation. Special standard specifications have been developed for braking systems of hybrid and electric vehicles. Compatibility performance requirements exist for advanced braking assist systems (ABS, ESP, etc.).
Rapid Development of Asian Standards
Japanese JIS standards have unique advantages in precision manufacturing and quality control. Standards establish strict requirements for product dimensional accuracy, surface quality, and consistency, promoting refined manufacturing technology development.
Chinese national and industry standards are rapidly improving, both learning from international advanced experience and combining with domestic actual conditions. GB 5763 standard specifies technical requirements and test methods for automotive brake lining. QC/T 671 standard establishes specific requirements for passenger car brake lining.
South Korea, India, and other emerging automotive markets are also developing and improving corresponding standard systems, providing technical support for industrial development. These standards must both align with international practices and conform to domestic usage conditions and technical levels.
Strict Environmental Regulation Requirements
Air Pollution Prevention Requirements
Global air pollution prevention requirements are increasingly strict, establishing higher standards for exhaust emissions during brake pad manufacturing processes. Emission limits for particulate matter, VOCs, nitrogen oxides, and other pollutants continuously decrease.
New emission standards require enterprises to install more advanced exhaust treatment equipment and adopt cleaner production processes. This drives applications of solvent-free processes, low-temperature curing technology, and closed production systems.
Water Pollution Prevention Specifications
Water pollution prevention regulations increasingly strict wastewater discharge requirements, particularly restrictions on hazardous substances like heavy metals and organic pollutants. New standards require higher wastewater treatment facility effectiveness and more frequent monitoring.
This drives wastewater treatment technology upgrades and promotes wastewater reuse technology applications. Enterprises must establish more comprehensive water environment management systems ensuring continued compliant discharge.
Solid Waste Management Standardization
Solid waste management regulations require enterprises to establish comprehensive waste classification, collection, treatment, and disposal systems. Hazardous waste management requirements are particularly strict, requiring disposal by qualified units.
This drives waste reduction and resource utilization technology development, promoting circular economy model establishment. Enterprises must establish waste management files achieving full life-cycle traceable waste management.
Quality Safety Regulation Improvements
Product Quality Law Strengthening
Product quality laws establish stricter requirements for manufacturing enterprise quality responsibilities. Enterprises must establish comprehensive quality management systems ensuring stable and reliable product quality. Laws also strengthen product recall systems, clearly specifying defective product handling requirements.
Product Liability Law Improvements
Product liability laws strengthen consumer rights protection, clearly defining manufacturer liability scopes. Enterprises must establish product liability insurance systems, improving risk prevention capabilities.
Certification System Standardization
Countries are improving product certification systems, raising certification technical thresholds and management requirements. Mandatory certification ensures basic product safety performance; voluntary certification promotes continuous product quality improvement.
Perfect Unity of Technological Progress and Safety Mission
Through deep technical analysis and comprehensive process exploration, we can clearly see that perfect integration of backing plates and friction materials in brake pad assembly processes is far from simple physical assembly but rather comprehensive technology integrating materials science, mechanical engineering, chemical processes, and quality management knowledge. From microscopic molecular bonding to macroscopic system integration, from traditional process methods to cutting-edge smart manufacturing, every technical detail carries persistent pursuit of safety and quality.
In today’s era, technological innovation accelerates continuously. New materials, processes, and equipment emerge constantly, providing unlimited possibilities for brake pad manufacturing process development. Nanomaterial technology enables material property design at atomic scales, smart manufacturing technology makes production processes more precisely controllable, and green manufacturing concepts guide industries toward sustainable development paths. These technological advances not only improve product performance but more importantly provide more reliable guarantees for road safety.
However, we must clearly recognize that technological progress can never separate from its fundamental service purpose—ensuring people’s life and property safety. Behind every brake pad connects the safety of thousands of families and carries society’s trust and expectations for manufacturing enterprises. This responsibility manifests not only in product design and manufacturing processes but also in every quality management aspect and every continuous improvement effort.
Looking toward the future, brake pad assembly process development will increasingly focus on balancing technology with responsibility, combining innovation with inheritance. On one hand, we must actively embrace new technologies, continuously improving product performance and manufacturing levels; on the other hand, we must uphold quality bottom lines, ensuring every process detail withstands time and practical testing. Only thus can we truly achieve perfect integration of backing plates and friction materials, providing users with safe and reliable braking protection.
Technology’s value lies in application; process meaning lies in practice. We hope this article’s deep analysis provides beneficial reference for technical personnel engaged in brake pad manufacturing, contributing to industry technological progress. Let us advance together, never stopping on the path pursuing technical excellence, courageously shouldering responsibilities in the mission of ensuring road safety, jointly writing new chapters in brake pad manufacturing process development.
Safety knows no small matters; quality knows no limits. Every technical improvement and process optimization represents reverence for life and commitment to the future. In the continuous development journey of brake pad assembly processes, we will always remember our original intentions, dedicating craftsmanship to safety and promoting development through innovation, ensuring every brake pad becomes a solid barrier protecting life.
