Introduction
In modern automotive engineering, the braking system stands as arguably the most critical safety component of any vehicle. Every time we gently press the brake pedal, a sophisticated and complex mechanical process unfolds silently beneath our feet. What appears to be a simple friction contact between brake pads and rotors actually embodies profound principles of materials science, thermodynamics, and mechanical engineering.
Statistics reveal that approximately 30% of traffic accidents are related to braking system failures, with over 60% of these failures stemming from improper brake pad rotor matching. This seemingly minor detail can become a matter of life and death at critical moments. When a vehicle traveling at 60 mph needs to make an emergency stop, every foot of difference in braking distance could determine whether an accident occurs or safety is maintained.
Improper matching isn’t just a performance issue—it’s a systemic safety hazard. From minor brake noise to catastrophic brake failure, from abnormal wear to thermal fade, every symptom could be a precursor to systemic failure. This article will start with theoretical foundations, incorporate real-world case studies, and provide a comprehensive analysis of the scientific principles behind brake pad rotor matching, offering thorough and practical guidance for vehicle owners, maintenance technicians, and automotive engineers alike.
Understanding Brake Pad and Rotor Operation
In-Depth Analysis of Basic Operating Mechanisms

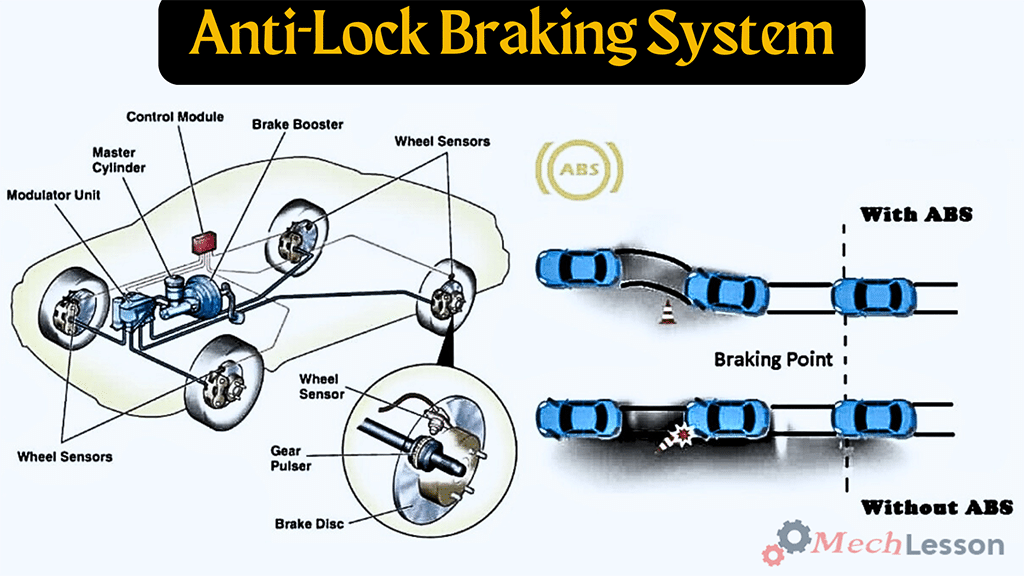

The braking system’s operation can be divided into four critical phases: signal transmission, force amplification, friction contact, and energy conversion.
Signal Transmission Phase: When a driver depresses the brake pedal, this mechanical action is first converted into a hydraulic signal. The brake pedal uses lever principles to amplify the driver’s foot force, pushing the piston in the master brake cylinder. During this process, human muscle power is precisely converted into pressure signals within the hydraulic system, with typical amplification ratios ranging from 6:1 to 8:1.
Force Amplification Phase: Brake fluid transmits pressure through the closed hydraulic system. According to Pascal’s law, pressure is uniformly transmitted through the liquid. When pressure reaches the brake calipers, the force is further amplified because the caliper piston area is typically larger than the master cylinder piston area. A typical disc brake system can amplify a driver’s 110-pound pedal force to over 4,400 pounds of clamping force.
Friction Contact Phase: Under hydraulic pressure, the brake caliper piston pushes the brake pads toward the rotor. This process must overcome the brake pad return spring resistance and internal system friction. When brake pads contact the rotor surface, initial point contact rapidly develops into surface contact, with increasing contact area directly affecting braking force magnitude.

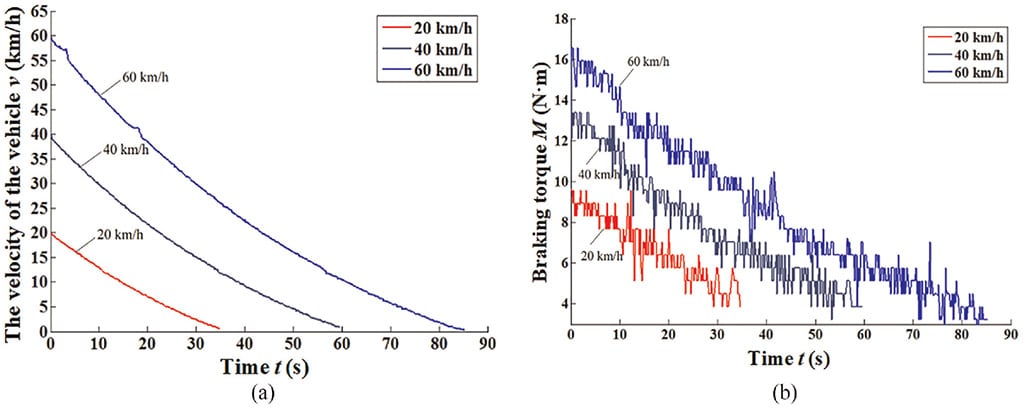

Energy Conversion Phase: Friction between brake pads and rotors converts the vehicle’s kinetic energy into thermal energy. This process follows the law of energy conservation. A 3,300-pound vehicle traveling at 60 mph possesses approximately 540 kilojoules of kinetic energy. During emergency braking, all this energy must be converted to thermal energy and dissipated into the atmosphere within seconds.
Microscopic Friction Mechanisms

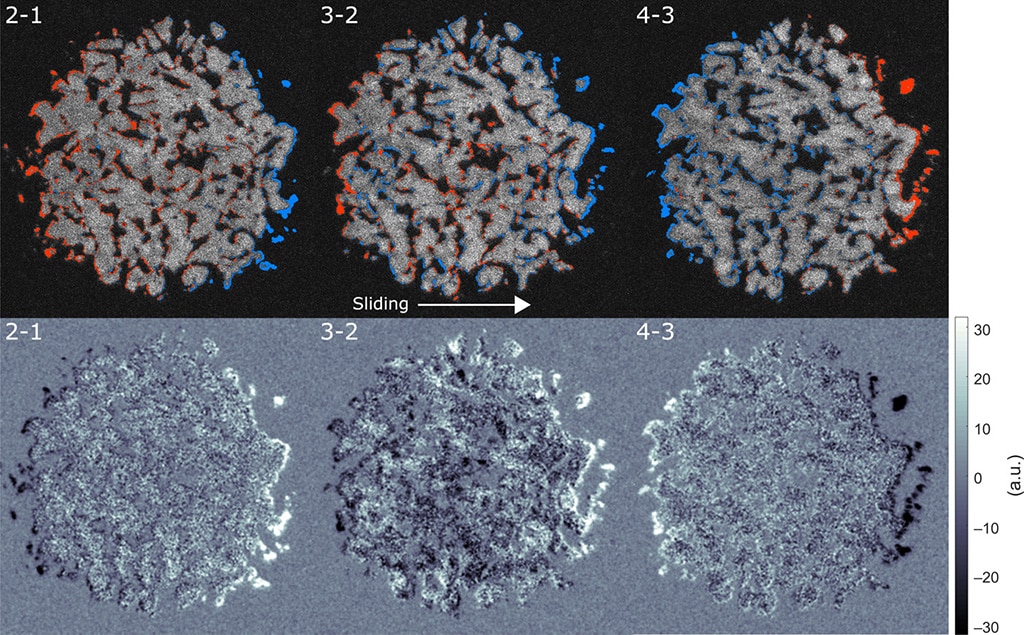

At the microscopic level, friction between brake pads and rotors is an extremely complex physicochemical process. Brake pad surfaces aren’t completely smooth but consist of countless microscopic peaks and valleys. When brake pads clamp onto rotors, these microscopic peaks first contact the rotor surface, undergoing elastic deformation or even plastic deformation under tremendous pressure.
Three primary wear mechanisms occur during friction: abrasive wear, adhesive wear, and fatigue wear. Abrasive wear refers to wear caused by hard particles scraping across soft surfaces; adhesive wear involves molecular-level bonding and tearing of contact surface microscopic regions due to high pressure and temperature; fatigue wear results from material fatigue failure due to repeated load cycles.
Detailed Thermodynamic Process Analysis
Thermodynamic phenomena during braking are far more complex than they appear on the surface. When brake pads and rotors create friction, contact surface temperatures can instantly reach 1,100-1,500°F, and in extreme cases exceed 1,800°F. Such high temperatures trigger a series of physical and chemical changes.
First is thermal expansion effects. Different materials have different thermal expansion coefficients. When temperatures rise rapidly, brake pads and rotors expand at different rates, potentially causing contact area changes and stress distribution alterations. Second is the temperature dependency of material properties. Most friction materials’ friction coefficients vary with temperature, and this variation can be linear or nonlinear.
Heat conduction and dissipation are also critical factors. Brake rotors typically use cast iron or carbon-ceramic materials with excellent thermal conductivity, capable of rapidly conducting friction-generated heat throughout the rotor body and dissipating it into the atmosphere. Cooling vanes designed into rotors increase surface area and improve heat dissipation efficiency.
Comprehensive Analysis of Improper Matching Hazards
Specific Manifestations of Braking Performance Degradation
Braking performance degradation is the most direct consequence of improper brake pad and rotor matching, manifesting in various forms that are often interconnected.
Extended Stopping Distances represent the most dangerous manifestation. Under standard test conditions (dry pavement, initial speed of 60 mph, full load), a properly matched quality braking system should maintain stopping distances within 115-130 feet. Improper matching can extend stopping distances by 10-20%. In emergency situations, those additional 10-25 feet might be the difference between an accident and safety.
Uneven Brake Force Distribution presents another serious problem. When brake pad and rotor matching isn’t consistent across all four wheels, brake force variations occur. These differences may be imperceptible at low speeds but can cause vehicle lateral sliding or loss of control during high-speed braking. On slippery surfaces, uneven brake force distribution significantly increases vehicle skidding risk.
Brake Response Delay is also common. Ideally, the time from brake pedal depression to full brake force establishment should be 0.1-0.2 seconds. Improperly matched systems may require 0.3-0.5 seconds or longer—a potentially fatal delay during emergency braking.
In-Depth Analysis of Abnormal Wear Issues
Abnormal wear not only affects system service life but can trigger chain reactions leading to overall braking system performance degradation.

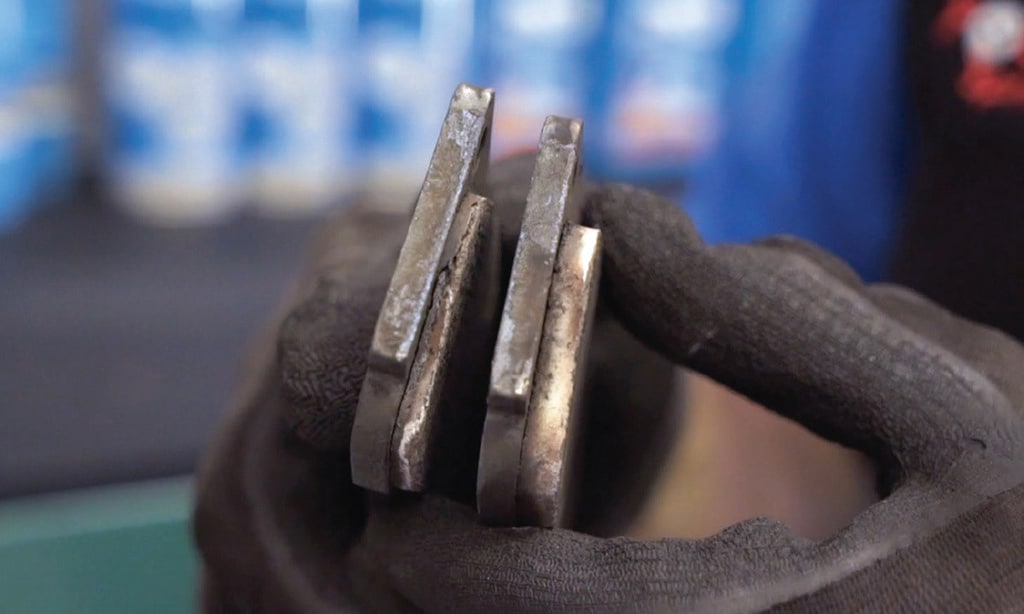

Brake Pad Abnormal Wear Patterns include tapered wear, wavy wear, and patchy wear. Tapered wear typically results from brake pad material being too soft or rotor surfaces being too rough, with wear starting from one end of the pad and gradually extending to the other. Wavy wear is caused by vibration during braking, creating periodic peaks and valleys on the brake pad surface. Patchy wear is most dangerous, usually occurring under high-temperature conditions where brake pad material undergoes local degradation, forming patches of varying hardness.
Rotor Abnormal Wear deserves equal attention. Most common is scoring, where radial or concentric grooves appear on the rotor surface. These grooves not only reduce effective friction area but also cause vibration and noise during braking. More serious is hot spotting, where localized overheating causes metallurgical changes, forming areas of abnormal hardness that accelerate brake pad wear.
Wear Particle Hazards cannot be ignored. Metal particles and friction material particles from abnormal wear may enter other parts of the braking system, contaminating brake fluid, accelerating seal wear, and potentially blocking hydraulic lines. These particles can also act as abrasives during braking, further accelerating the wear process.
Chain Reactions of Systemic Failures
Systemic failures are rarely caused by single factors but result from multiple factors interacting. Problems triggered by improper matching create chain reactions within the system, ultimately leading to complete braking system failure.
Brake Fade Phenomenon is typical failure under high-temperature environments. When braking system temperatures become excessive, binders in brake pads begin decomposing, causing friction coefficients to drop dramatically. This phenomenon is particularly evident on continuous downhill sections. Drivers will notice brake pedals becoming soft with significantly reduced braking effectiveness—in severe cases, full pedal depression may produce only minimal braking force.
Vapor Lock represents another dangerous systemic failure. When braking systems overheat, brake fluid may vaporize, forming bubbles in hydraulic lines. Due to gas compressibility, these bubbles cause brake pedal softness and poor brake force transmission. In extreme cases, numerous bubbles can cause complete braking system failure.
Thermal Distortion Issues affect entire braking system geometric precision. Rotors warp under high temperatures, causing thickness variations. This distortion creates vibration during braking, not only affecting comfort but also accelerating brake pad wear, creating a vicious cycle.
Key Elements of Proper Matching
Scientific Principles of Material Property Matching
Brake pad rotor matching is a precise science requiring consideration of multiple performance parameter dimensions.
Friction Coefficient Matching Characteristics is the primary consideration. Ideal friction coefficients should range between 0.35-0.45, ensuring adequate braking force while avoiding wheel lockup from excessively high friction coefficients. More importantly, friction coefficients must remain relatively stable throughout the entire operating temperature range. Semi-metallic brake pads typically maintain stable friction coefficients in the 200-575°F range, while ceramic brake pads maintain excellent performance at even higher temperatures.
Hardness Matching Principles follow basic “hard-soft pairing” rules. Brake pad materials are typically 10-15 HRC hardness points softer than rotor materials, ensuring brake pads serve as “consumables” bearing primary wear while protecting more valuable rotors. However, this difference cannot be excessive, or brake pad wear will be too rapid; nor can it be too small, or rotor wear will be excessive.
Thermal Conductivity Property Coordination affects entire system thermal management capability. Rotors typically use materials with good thermal conductivity, such as quality cast iron or carbon-ceramic, capable of rapidly conducting and dissipating heat. Brake pad thermal conductivity must be moderate—sufficient to transfer friction-generated heat to rotors while not conducting heat so rapidly as to affect friction surface operating temperatures.
Chemical Compatibility is crucial for long-term use. Different materials under high-temperature, high-pressure environments may undergo chemical reactions, producing harmful substances or altering material properties. For example, certain organic brake pad materials react with cast iron rotors at high temperatures, producing corrosive compounds that accelerate wear processes.
Precision Requirements for Geometric Dimension Matching
Geometric dimension matching accuracy directly affects contact area and pressure distribution, forming the foundation for ensuring braking performance.
Thickness Matching Importance manifests in multiple aspects. Brake pad thickness must match brake caliper design—excessive thickness causes installation difficulties or prevents complete retraction, while insufficient thickness cannot provide adequate braking force. New brake pad standard thickness typically ranges 0.4-0.6 inches, with wear limits usually 0.08-0.12 inches. Rotor thickness is equally critical—rotors too thin easily distort under high temperatures, while rotors too thick affect heat dissipation.
Contact Area Optimization requires precise calculation. Brake pad effective friction area should match rotor friction ring area, typically requiring 85-95% coverage. Insufficient contact area causes excessive unit pressure, accelerating wear; excessive contact area may cause edge stress concentration.
Surface Roughness Coordination is also important. Brake pad and rotor surface roughness must be reasonably matched to ensure good break-in results. Typical rotor surface roughness is Ra 65-125 microinches, while brake pad surface roughness is Ra 250-500 microinches.
Engineering Considerations for Temperature Characteristic Matching
Different operating environments place varying temperature characteristic requirements, with proper matching needing to consider specific application scenarios.
Urban Driving Characteristics involve frequent low-intensity braking. In city driving, braking temperatures typically range 200-390°F, with short braking duration and long intervals. This operating condition requires brake pads with good low-temperature friction performance and excellent initial brake response. Organic brake pads perform excellently under these conditions, offering low noise and good comfort.
Highway Driving Characteristics involve occasional high-intensity braking. Emergency braking during high-speed travel generates large amounts of heat quickly, with braking temperatures potentially reaching 750-1,100°F instantly. This requires brake materials maintaining stable performance at high temperatures—semi-metallic or ceramic brake pads are more suitable for these conditions.
Mountain Road Conditions are most severe, with extended continuous braking causing sustained temperature increases. On long downhill sections, braking temperatures may remain continuously at 575-930°F or higher. These conditions require not only high-temperature resistant materials but also excellent system heat dissipation capability.
Selection and Maintenance Guidelines
Detailed Interpretation of Selection Principles
Proper brake pad and rotor combination selection requires comprehensive consideration of multiple factors, following scientific selection principles.
Manufacturer Specification Importance cannot be overlooked. When designing vehicles, automotive manufacturers select appropriate braking system configurations based on factors like vehicle weight, performance, and intended use. These specifications undergo extensive testing validation, including material types, dimensional parameters, and performance indicators. Deviating from these specifications may result in reduced braking performance, warranty voiding, or even safety hazards.
Driving Habit Impact Factors require objective assessment. Aggressive driving style owners need high-temperature resistant, fade-resistant material combinations, while gentle drivers can prioritize comfort and economy. Owners frequently driving in mountainous areas should choose products with excellent heat dissipation performance, while those primarily city driving can select low-noise, low-dust products.
Environmental Factor Considerations are equally important. In rainy, humid regions, choose materials with good water drainage and corrosion resistance; in dusty areas, select products with good sealing and abrasion resistance; in severely cold regions, consider material low-temperature performance and anti-freeze characteristics.
Cost-Benefit Analysis requires long-term thinking. Quality brake pads and rotors, while requiring higher initial investment, offer longer service life and lower maintenance costs, often providing better overall economics. Moreover, braking systems relate to driving safety and shouldn’t be driven purely by price considerations.

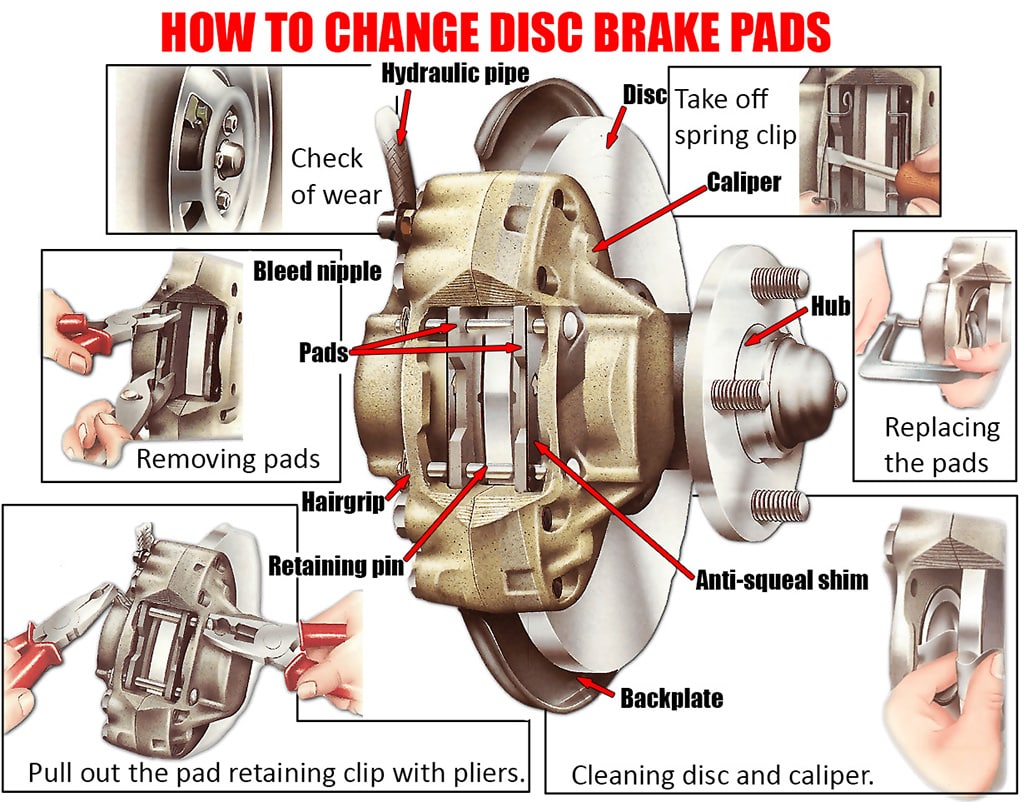

Technical Details of Installation Points
Proper installation is crucial for ensuring brake pad and rotor matching effectiveness, with every detail potentially affecting final performance.
Pre-Installation Preparation encompasses multiple aspects. First, clean the work area ensuring no oil, dust, or other contaminants. Second, check related tool condition, particularly torque wrench calibration status. Then carefully read product instructions, understanding special requirements and precautions.
Old Component Removal Precautions cannot be ignored. Before removal, measure and record old brake pad and rotor wear conditions, analyzing wear patterns to provide diagnostic evidence. During removal, avoid damaging brake calipers, brake hoses, and other components. When handling brake dust, take protective measures to avoid inhaling harmful particles.
New Component Installation Key Steps require strict execution. During rotor installation, ensure clean, flat mating surfaces with hub, with bolt tightening torque meeting specified requirements (typically 60-90 ft-lbs). During brake pad installation, check guide pin lubrication ensuring free pad movement. After installation completion, repeatedly press the brake pedal ensuring full pad-to-rotor contact.
System Debugging Important Steps include bleeding system air, checking brake fluid level, and testing brake pedal firmness and travel. Additionally, perform low-speed testing to check braking effectiveness and abnormal noise presence.
Scientific Methods of Break-In Period Management
Newly installed braking systems require appropriate break-in periods to achieve optimal performance states—this process requires scientific management.
Physical Nature of Break-In Period involves microscopic matching of contact surfaces. New brake pad and rotor surfaces aren’t completely flat, containing microscopic irregularities. Through proper break-in processes, high points are gradually worn smooth, forming good mating surfaces with gradually increasing contact area and more uniform pressure distribution.
Specific Break-In Procedure Implementation requires phased approach. Initial break-in (0-125 miles) should avoid hard braking and extended braking, mainly performing gentle braking to allow gradual surface adaptation. Mid-term break-in (125-310 miles) can gradually increase braking intensity while still avoiding extreme braking. Late-stage break-in (310-620 miles) allows normal braking while monitoring system performance changes.
Break-In Effectiveness Evaluation Standards include brake noise elimination, braking feel consistency, and wear uniformity. Proper break-in should eliminate sharp noises, provide stable brake pedal feel, and show uniform brake pad and rotor wear.
Systematic Daily Maintenance Methods
Daily maintenance is crucial for ensuring long-term reliable braking system operation, requiring established systematic maintenance protocols.
Regular Inspection Content and Standards should be comprehensive and detailed. Brake pad thickness inspection every 3,000 miles—replace when thickness drops below 0.12 inches. Rotor thickness inspection every 6,000 miles—replace when approaching wear limits or showing severe scoring. Annual brake fluid inspection checking level, color, and water content.
Specific Cleaning and Maintenance Operations require specialized cleaners. When cleaning rotors, use brake system-specific cleaners, avoiding oil-containing cleaners. After cleaning, ensure complete drying to prevent water residue. Brake pad cleaning should avoid high-pressure water direct washing to prevent friction material damage.
Performance Monitoring Methods and Techniques include auditory, tactile, and visual approaches. Normal braking systems should have no abnormal noise, stable brake pedal feel, and normal stopping distances. Sharp noises, soft pedals, or extended stopping distances warrant immediate inspection.
Fault Diagnosis and Solutions
In-Depth Analysis of Common Fault Phenomena
Braking system fault phenomena often result from multiple factors working together, requiring systematic analytical methods for accurate diagnosis.
Brake Noise Classification Diagnosis requires distinguishing different noise types. Sharp metallic scraping sounds typically indicate brake pads worn to limits with metal backing plates directly contacting rotors; low-frequency humming may indicate brake pad material issues or surface irregularities; intermittent squealing might suggest excessive clearance between pads and calipers; continuous friction sounds could indicate foreign objects entering the braking system.
Brake Vibration Cause Analysis involves multiple potential factors. Rotor thickness variation is the most common cause, usually from overheating distortion; wheel hub distortion can also cause vibration, particularly after tire changes; tire dynamic imbalance may be misdiagnosed as brake vibration; suspension system faults similarly manifest as vibration during braking.
Comprehensive Diagnosis of Insufficient Brake Force requires systematic troubleshooting. Excessive brake pad wear directly affects braking force; insufficient brake fluid or excessive water content causes poor force transmission; brake caliper faults affect pressure buildup; vacuum booster failures increase pedal effort; brake line leaks cause pressure loss.
Technical Points of Diagnostic Methods
Accurate fault diagnosis requires scientific methods and professional tools, avoiding subjective experiential judgment.
Systematic Visual Inspection Methods proceed from overall to specific, surface to internal. First check brake fluid level and color—normal brake fluid should be clear and transparent, light yellow or colorless. Then inspect brake lines for leakage traces, particularly at connections and aging hoses. Next examine rotor surface condition, observing for cracks, scoring, or corrosion. Finally check brake pad thickness and wear patterns—normal wear should be uniform, while abnormal wear often indicates specific problems.
Standard Functional Testing Procedures require safe environments. Static testing includes pressing brake pedals to check travel and firmness—normal pedal travel should be 1/3 to 1/2 of total travel with definite resistance feeling. Dynamic testing should occur in open areas, checking stopping distances and braking uniformity from various speeds.
Precise Instrumental Measurement Methods provide objective data support. Use micrometers to measure rotor thickness at evenly distributed points, calculating thickness variation; use specialized tools to measure brake pad thickness, noting thickness differences at various positions; use brake force testing equipment to check individual wheel brake forces and balance; use brake fluid testers to check water content and boiling points.
Implementation Plans for Solution Strategies
Different fault phenomena require corresponding solution strategies, ensuring repair effectiveness and system reliability.
Material Matching Problem Solutions require selecting appropriate product combinations. If insufficient braking force from mismatched friction coefficients, choose brake pads with higher friction coefficients while ensuring system design limits aren’t exceeded. If abnormal wear from hardness matching issues, select more appropriately matched material combinations. If thermal fade from temperature characteristic mismatches, upgrade to better high-temperature performance products.
Geometric Dimension Problem Treatment Methods may require mechanical processing. Rotor surface irregularities can be repaired through lathe machining, but minimum thickness limits cannot be exceeded. Rotor warping typically requires replacement as repair costs often exceed replacement costs. Brake pad thickness variations can be addressed through specialized surface treatment tools, though severe cases warrant direct replacement.
Comprehensive Treatment of Systemic Issues requires systematic thinking. Brake fade problems require not only brake pad and rotor replacement but also improved heat dissipation conditions, possibly necessitating upgraded cooling vane designs or additional cooling fins. Brake vibration issues require checking entire suspension systems and tire balance beyond rotor treatment. Brake noise problems may require adjusting brake caliper positions, replacing buffer shims, and other supporting measures.
Future Development Trends
Development Prospects of Intelligent Matching Technology

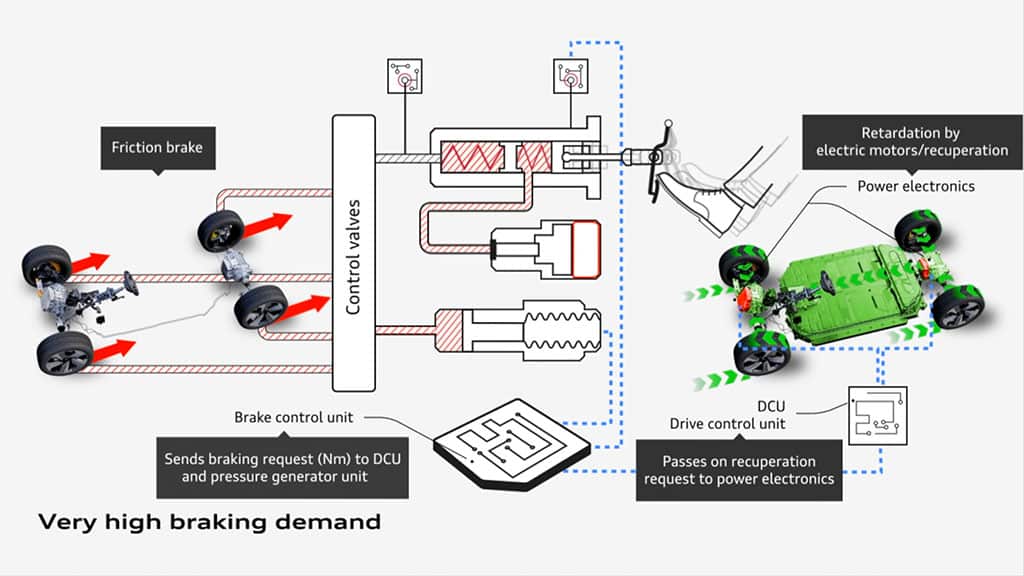

As automotive intelligence levels continuously improve, braking systems are also developing toward intelligence, with intelligent matching technology becoming an important future trend.
Real-Time Monitoring Technology applications will revolutionarily change braking system maintenance modes. By integrating micro-sensors into brake pads and rotors, real-time monitoring of temperature, wear levels, contact pressure, and other critical parameters becomes possible. These sensors use wireless transmission technology, sending data to vehicle computer systems. When abnormal conditions are detected, systems promptly warn drivers and can even automatically adjust braking parameters to compensate for performance degradation.
Artificial Intelligence Algorithm applications make matching optimization possible. Machine learning algorithms can analyze vast usage data, including driving habits, road conditions, and climate conditions, recommending optimal brake pad and rotor combinations for each user. Deep learning neural networks can identify complex wear patterns, predict potential failures, and perform preventive maintenance in advance. This intelligent matching not only improves safety but significantly reduces maintenance costs.
Adaptive Braking Technology will automatically adjust braking parameters based on real-time monitoring data. When systems detect accelerated brake pad wear or reduced braking effectiveness, compensation can occur through adjusting brake force distribution, modifying braking timing, and other methods. Electronic Brake-force Distribution (EBD) and Anti-lock Braking Systems (ABS) will become more intelligent, considering not only tire grip but also real-time brake pad and rotor conditions.
Predictive Maintenance Systems will completely transform traditional maintenance modes. By analyzing historical data and real-time monitoring information, systems can accurately predict remaining brake pad and rotor service life, scheduling maintenance plans in advance. This not only prevents sudden failures but optimizes maintenance costs, ensuring systems remain in optimal working condition.
Technological Innovation in New Material Applications
Materials science advances bring revolutionary changes to braking systems, with new material applications significantly enhancing system performance.
Carbon Fiber Composite Materials find increasing application in high-end braking systems. Carbon fiber rotors possess excellent characteristics of light weight, high strength, and high-temperature resistance, with density only 1/4 that of traditional cast iron rotors but several times the strength. In high-temperature environments, carbon fiber material performance actually improves slightly, with friction coefficients remaining stable or even increasing slightly. These characteristics make carbon fiber braking systems widely used in racing and high-performance vehicles.
Ceramic Matrix Composites (CMC) represent braking material development frontiers. These materials combine ceramic high-temperature resistance with fiber toughness, overcoming traditional ceramic material brittleness. Ceramic matrix composite rotors can operate normally at temperatures above 1,800°F with stable friction coefficients and extremely low wear rates. While costs are high, their excellent performance gives them tremendous high-end market potential.
Nanotechnology Applications bring new vitality to traditional materials. Adding nano-scale reinforcing phases can significantly improve traditional friction material performance. Nano-ceramic particles can increase material hardness and wear resistance; nano-metal particles can improve thermal conductivity; nano-carbon tubes can enhance material toughness. These nanomaterial additions provide comprehensive performance improvements for brake pads.
Smart Material Concepts are moving from laboratories toward practical applications. Shape memory alloys can automatically adjust geometric shapes with temperature changes, optimizing contact areas; thermochromic materials can visually display temperature distributions, helping diagnose problems; self-lubricating materials can reduce wear and extend service life. These smart material applications will make braking systems more intelligent and adaptive.
Technical Transformation Driven by Environmental Requirements
With growing global environmental awareness and increasingly strict regulatory requirements, braking system environmental performance becomes an important consideration factor.
Copper-Free Brake Pad Technology development responds to environmental regulations. Traditional brake pads contain copper elements that form dust during wear, ultimately entering water systems and causing environmental pollution. California and other regions have legislated banning brake pads with copper content exceeding certain ratios. Copper-free brake pads use other metal fibers or ceramic fibers to replace copper fibers, reducing environmental pollution while maintaining performance.
Low-Dust Formula Technology focuses on solving brake dust pollution problems. Traditional brake pads produce numerous fine dust particles during use, not only polluting the environment but potentially harming human health. New low-dust brake pads use special binder and filler formulations, greatly reducing dust production. Simultaneously, optimizing friction surface designs increases wear particle sizes, making them easier to settle and reducing airborne suspended particles.
Recyclable Material Technology considers environmental impact throughout product lifecycles. New-generation braking materials increasingly use recyclable raw materials like recycled rubber and recycled metal fibers. Additionally, product designs consider post-disposal recycling, using easily separable structural designs enabling effective material separation and recovery. This cradle-to-recycling environmental philosophy becomes important future product development guidance.
Bio-Based Material application exploration opens new directions for braking materials. Some research institutions are exploring plant fibers, bio-resins, and other natural materials as friction material components. While these materials currently have limitations in high-performance applications, bio-based materials show promise for specific application scenarios as technology advances.
Digital Transformation of Manufacturing Processes
Digital technology is profoundly transforming braking system manufacturing processes, improving product quality and production efficiency.
3D Printing Technology demonstrates tremendous advantages in complex geometric structure manufacturing. Complex internal cooling channels, variable cross-sections, and other structures difficult with traditional manufacturing become easily achievable through 3D printing. This provides new possibilities for rotor heat dissipation optimization design. Additionally, 3D printing enables small-batch customized production, meeting special vehicle or special-purpose requirements.
Digital Quality Control Systems ensure every product meets strict quality standards. By integrating various sensors and detection equipment, real-time monitoring of every production stage becomes possible. Machine vision systems can detect surface defects; laser measurement systems can precisely measure geometric dimensions; X-ray detection can discover internal defects. These digital detection methods greatly improve product quality consistency.
AI-Optimized Manufacturing analyzes vast production data to optimize manufacturing parameters. Machine learning algorithms can identify key factors affecting product quality, automatically adjusting process parameters for optimal results. Predictive maintenance systems can predict equipment failures, avoiding downtime losses. Intelligent scheduling systems can optimize production plans, improving equipment utilization rates.
Conclusion
Proper brake pad and rotor matching represents a complex engineering problem involving materials science, mechanical engineering, thermodynamics, and multiple other disciplines. From microscopic friction mechanisms to macroscopic system performance, from traditional experiential judgment to modern intelligent diagnosis, this seemingly simple matching problem actually embodies profound scientific principles and rich engineering practices.
Through this article’s in-depth analysis, we can draw several important conclusions:
First, material matching forms the foundation. Different driving environments and usage requirements place varying demands on material performance. Only through deep understanding of material characteristics can correct choices be made. Reasonable matching of friction coefficients, hardness, thermal conductivity, and other parameters provides the prerequisite for ensuring long-term stable system operation.
Second, systematic thinking is key. Braking systems are organic wholes where any single component problem may trigger chain reactions. Therefore, when analyzing and solving problems, systematic perspectives must be adopted, comprehensively considering various factor interactions.
Third, preventive maintenance provides assurance. Through regular inspections and scientific maintenance, problems can be discovered and addressed at nascent stages, preventing small issues from developing into major failures. Establishing scientific maintenance systems not only ensures safety but significantly reduces operating costs.
Finally, technological development represents the trend. With continuous development of intelligence, new materials, environmental protection, and other technologies, braking systems are undergoing profound transformations. Mastering these new technologies and concepts holds important significance for industry practitioners and general users alike.
For vehicle owners, understanding the importance of brake pad and rotor matching, selecting appropriate products, and performing correct maintenance are basic requirements for ensuring driving safety. Focus shouldn’t be solely on price factors but should comprehensively consider safety, reliability, economy, and other aspects.
For maintenance technicians, mastering scientific diagnostic methods, possessing systematic theoretical knowledge, and continuously learning new technologies form the foundation for providing quality service. Every maintenance job relates to user life safety, tolerating no carelessness.
For industry practitioners, monitoring technological development trends, investing in research and development innovation, and responding to environmental requirements are responsibilities for advancing the industry. Only through continuous innovation can growing performance requirements and environmental demands be met.
In today’s rapidly developing automotive industry, braking system technology also continuously advances. From traditional mechanical braking to modern electronic braking, from single friction materials to composite intelligent materials, each technological innovation provides more reliable assurance for driving safety.
Looking toward the future, with autonomous driving technology development, braking systems will face new challenges and opportunities. Intelligent braking systems will enable more precise brake force control, more timely emergency responses, and more effective accident prevention. However, regardless of technological development, basic brake pad and rotor matching principles remain the foundation for reliable system operation.
Let us jointly focus on braking system technology development, working together to create safer, more environmentally friendly, and more intelligent transportation environments. Remember, among all automotive technologies, nothing is more important than braking systems because they determine not only whether we can quickly reach our destinations, but whether we can safely reach our destinations. Proper matching, scientific maintenance, and continuous innovation—this is our commitment to life safety and our expectation for a better future.
